Instrument Panel Center Air Outlet Replacement - Right Side
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

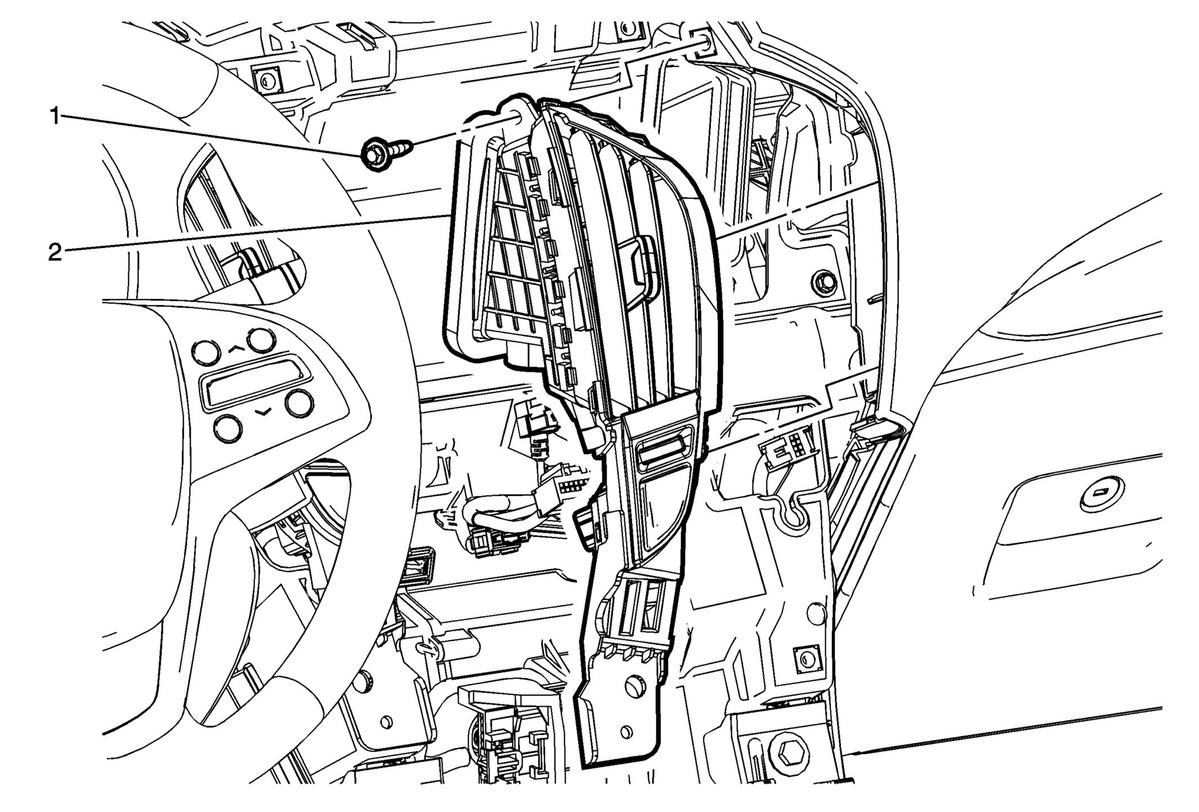

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the radio control assembly. Refer to Radio Control Assembly Replacement . |
|
| 1 | Instrument Panel Center Air Outlet Fastener
CAUTION:
Refer to Fastener Caution . |
| 2 | Instrument Panel Center Air Outlet - Right Side Procedure Use a suitable tool to release the tabs securing the center air outlet from the center air outlet bracket. |
