Front Suspension Automatic Forward Lighting Position Sensor Replacement (Coupe)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

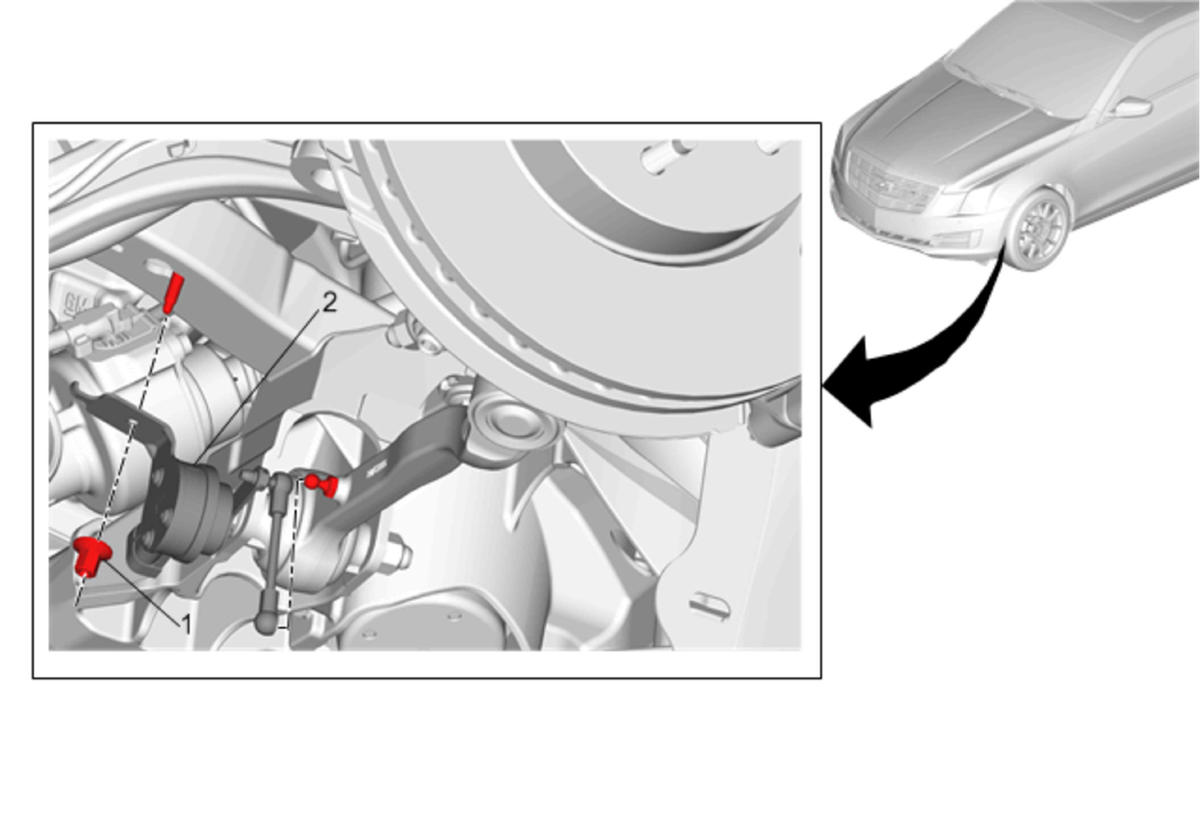

Fig 1: Front Suspension Automatic Forward Lighting Position Sensor (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front wheelhouse splash shield. Refer to Front Wheelhouse Splash Shield Replacement (Rear Wheel Drive)Front Wheelhouse Splash Shield Replacement (All Wheel Drive) .
1	Front Suspension Automatic Forward Lighting Position Sensor Nut CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Front Suspension Automatic Forward Lighting Position Sensor Procedure Disconnect the electrical connector. Using an appropriate tool, separate the ball and socket.

Callout

Component Name

Preliminary Procedure
Remove the front wheelhouse splash shield. Refer to Front Wheelhouse Splash Shield Replacement (Rear Wheel Drive)Front Wheelhouse Splash Shield Replacement (All Wheel Drive) .

Front Suspension Automatic Forward Lighting Position Sensor Nut

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

Front Suspension Automatic Forward Lighting Position Sensor

Procedure

Disconnect the electrical connector.
Using an appropriate tool, separate the ball and socket.
