Front Wheelhouse Splash Shield Replacement (Rear Wheel Drive)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

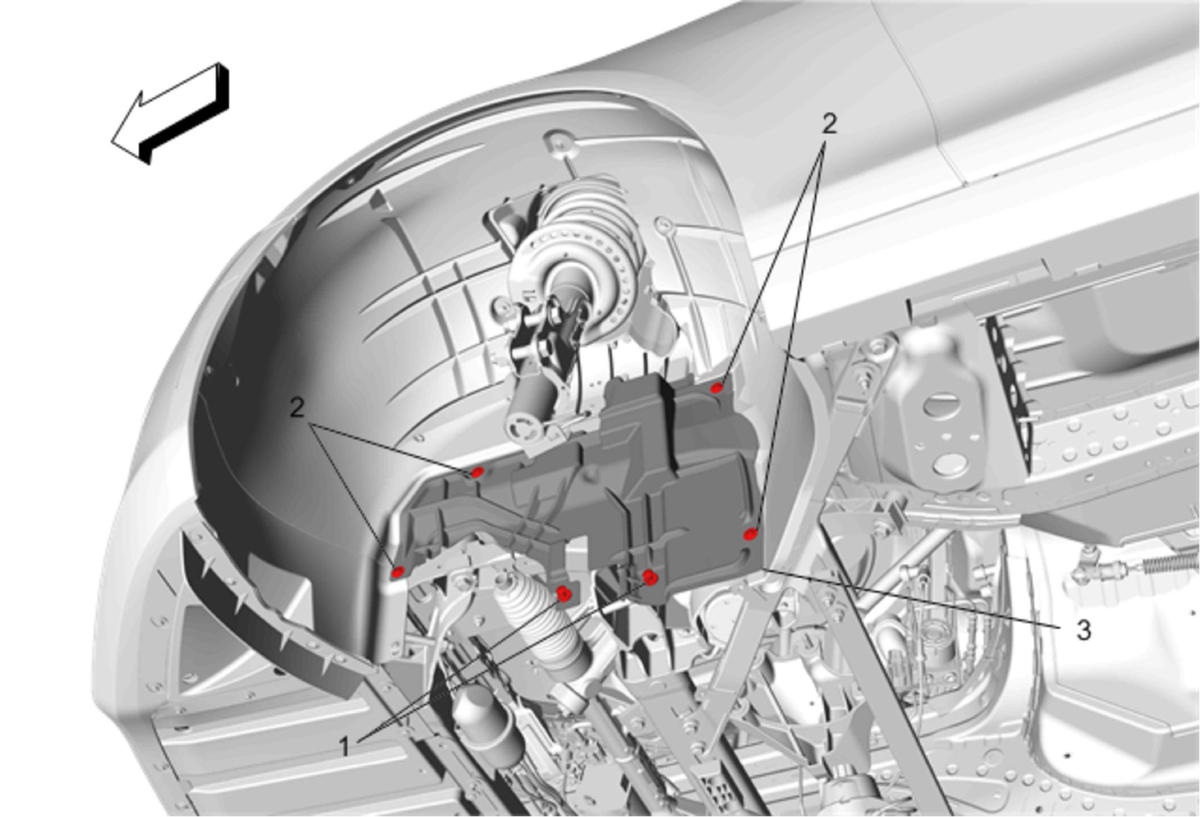

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (Non V-Series)Tire and Wheel Removal and Installation (V-Series) . |
|
| 1 | Front Wheelhouse Splash Shield Push-In Retainer (Qty: 2) |
| 2 | Front Wheelhouse Splash Shield Screw (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten: 2.5 N.m (22 lb in) |
| 3 | Front Wheelhouse Splash Shield |
