Rear Seat Head Restraint Replacement (with AM9)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

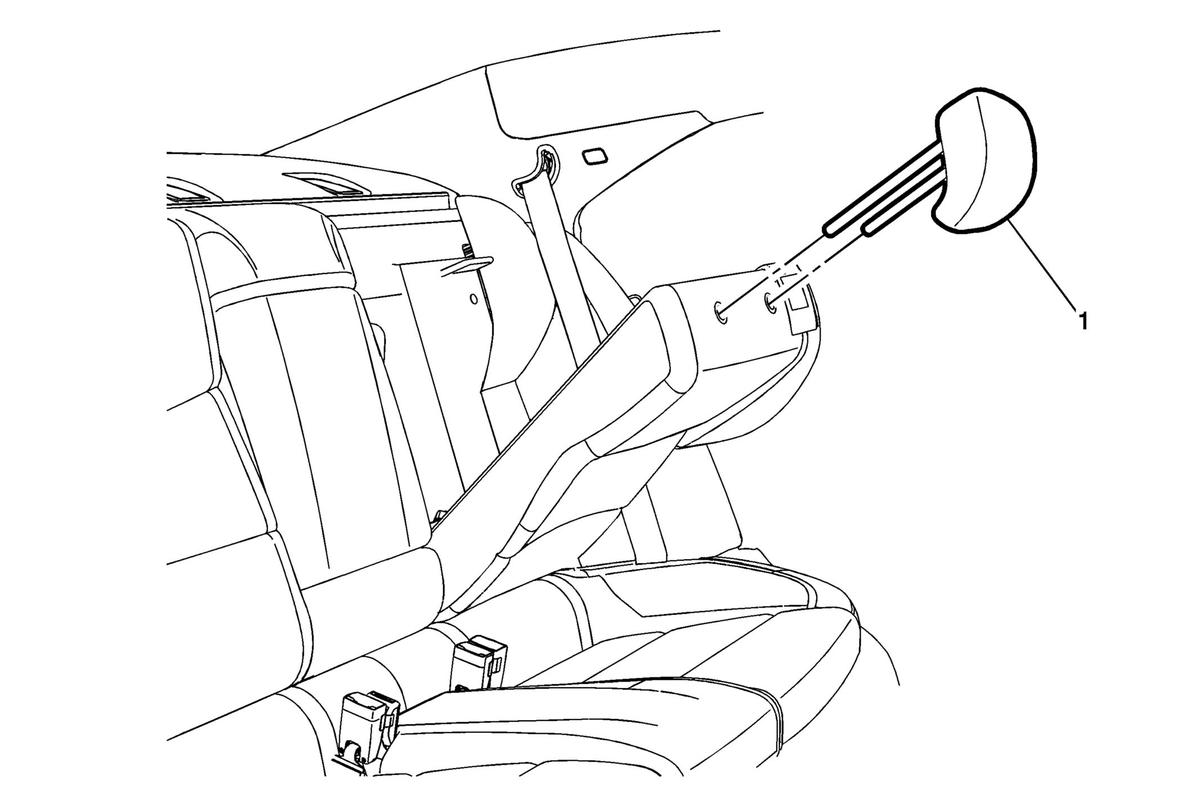

Fig 1: Rear Seat Head Restraint (with AM9)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Seat Head Restraint Procedure Lower the seat back forward to gain space between the head restraint and the roof. Depress the large button on the head restraint guide and raise the head restraint to the full up position. Depress the large and small buttons on the guides and lift up on the head restraint to remove.

Callout

Component Name

Rear Seat Head Restraint

Procedure

Lower the seat back forward to gain space between the head restraint and the roof.
Depress the large button on the head restraint guide and raise the head restraint to the full up position.
Depress the large and small buttons on the guides and lift up on the head restraint to remove.
