Rear Seat Cushion Cover and Pad Replacement (Coupe)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

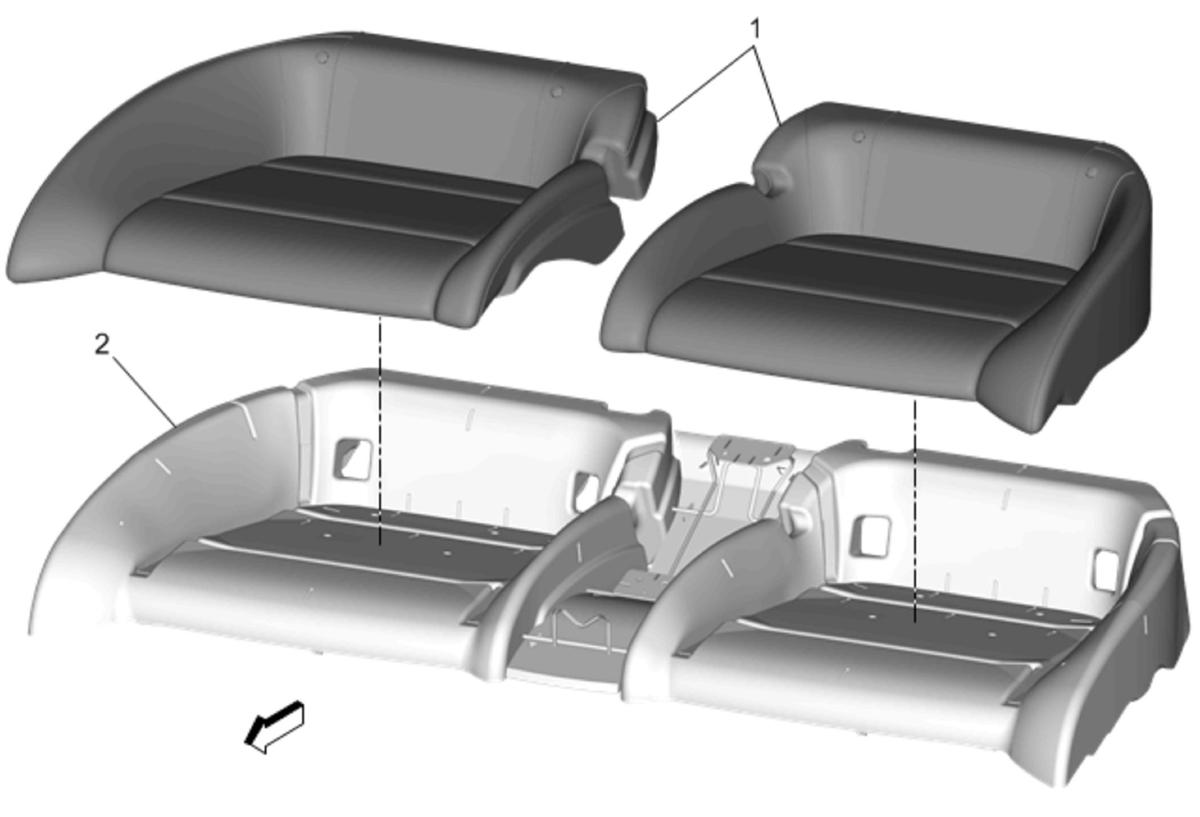

Fig 1: Rear Seat Cushion Cover and Pad (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation (Coupe) . Remove the rear seat cushion compartment. Refer to Rear Seat Cushion Compartment Replacement (Coupe)
1	Rear Seat Cushion Cover Procedure Remove the hog rings that secure the rear seat cushion cover to the pad. When installing the rear seat cushion cover, pull the cover tightly in all corners to ensure that no creasing occurs.
2	Rear Seat Cushion Pad

Callout

Component Name

Preliminary Procedures

Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation (Coupe) .
Remove the rear seat cushion compartment. Refer to Rear Seat Cushion Compartment Replacement (Coupe)

Rear Seat Cushion Cover

Procedure

Remove the hog rings that secure the rear seat cushion cover to the pad.
When installing the rear seat cushion cover, pull the cover tightly in all corners to ensure that no creasing occurs.

Rear Seat Cushion Pad
