Rear Seat Cushion Compartment Replacement (Coupe)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

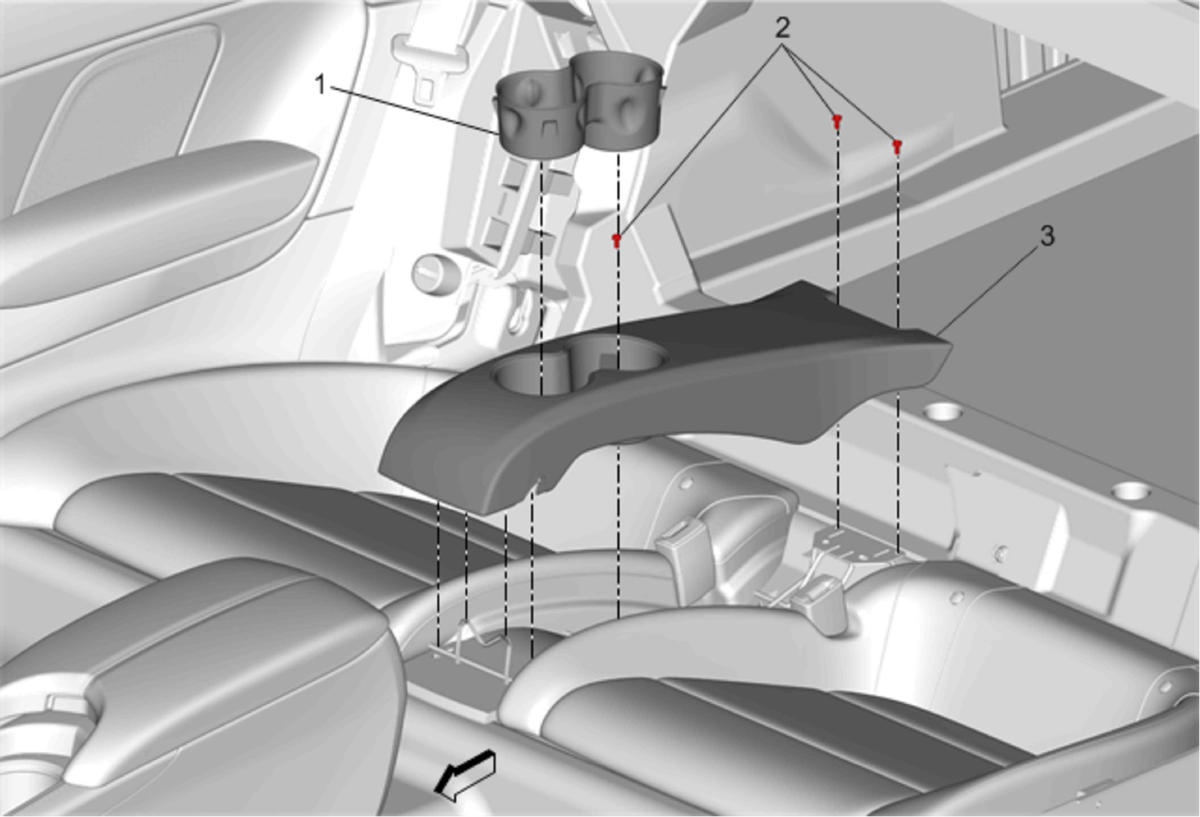

Fig 1: Rear Seat Cushion Compartment (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Procedure Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Removal and Installation (40% Seat with AM9) Rear Seat Back Cushion Removal and Installation (60% Seat with AM9) Rear Seat Back Cushion Removal and Installation (without AM9)
1	Rear Seat Cushion Compartment Cup Holder liner
2	Rear Seat Cushion Compartment Fasteners (Qty: 3) CAUTION: Refer to Fastener Caution .
3	Rear Seat Cushion Compartment Procedure Release the rear seat center seat belts. Gently pull up on the rear of the compartment assembly to disengage it from the cushion frame wire. Gently pull up on the front of the compartment assembly to disengage it from the cushion frame wire and remove it from the vehicle.
