Rear Seat Armrest Frame Bracket Replacement (with AM9)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

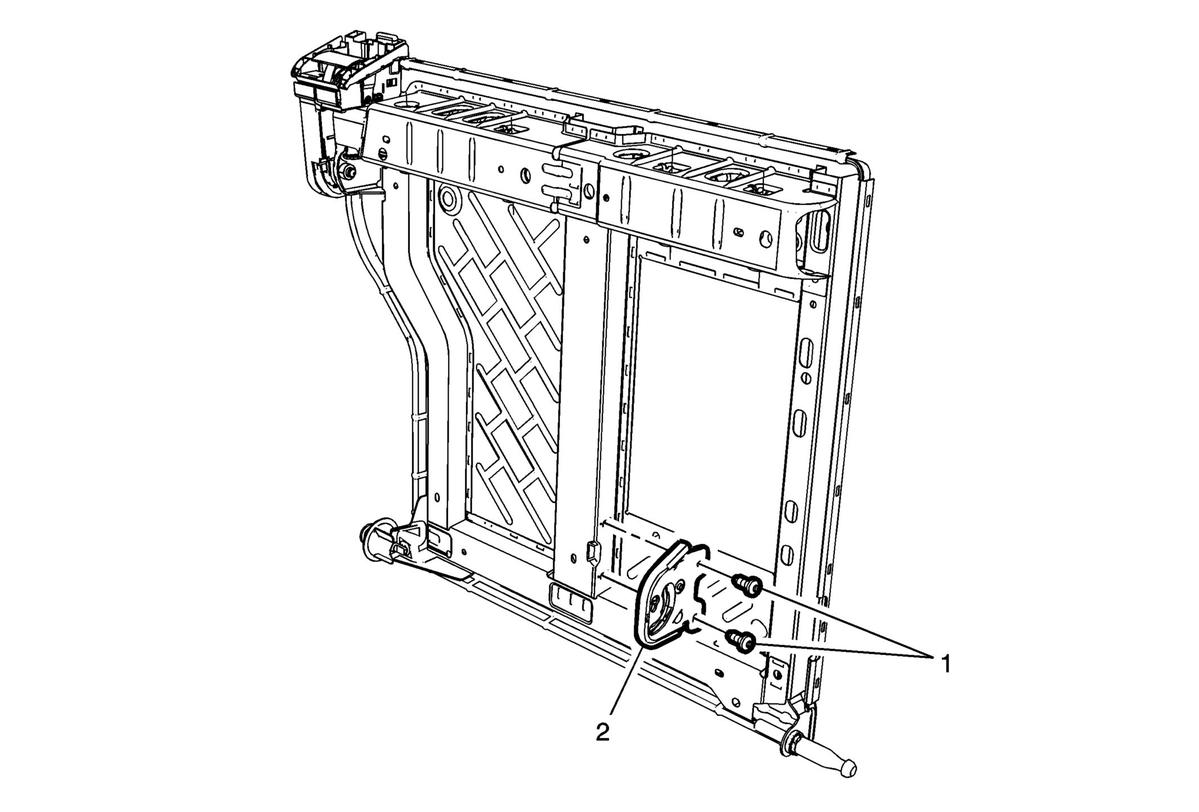

Fig 1: Rear Seat Armrest Frame Bracket (with AM9)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear back seat cushion. Refer to Rear Seat Back Cushion Removal and Installation (40% Seat with AM9) Rear Seat Back Cushion Removal and Installation (60% Seat with AM9) . Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (60% with AM9) Rear Seat Back Cushion Cover and Pad Replacement (40% with AM9) Rear Seat Back Cushion Cover and Pad Replacement (Coupe) .
1	Rear Seat Armrest Frame Bracket Fastener (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Rear Seat Armrest Frame Bracket.

Callout

Component Name

Preliminary Procedures

Remove the rear back seat cushion. Refer to Rear Seat Back Cushion Removal and Installation (40% Seat with AM9) Rear Seat Back Cushion Removal and Installation (60% Seat with AM9) .
Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (60% with AM9) Rear Seat Back Cushion Cover and Pad Replacement (40% with AM9) Rear Seat Back Cushion Cover and Pad Replacement (Coupe) .

Rear Seat Armrest Frame Bracket Fastener (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Rear Seat Armrest Frame Bracket.
