Rear Floor Panel Carpet Replacement (Coupe)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

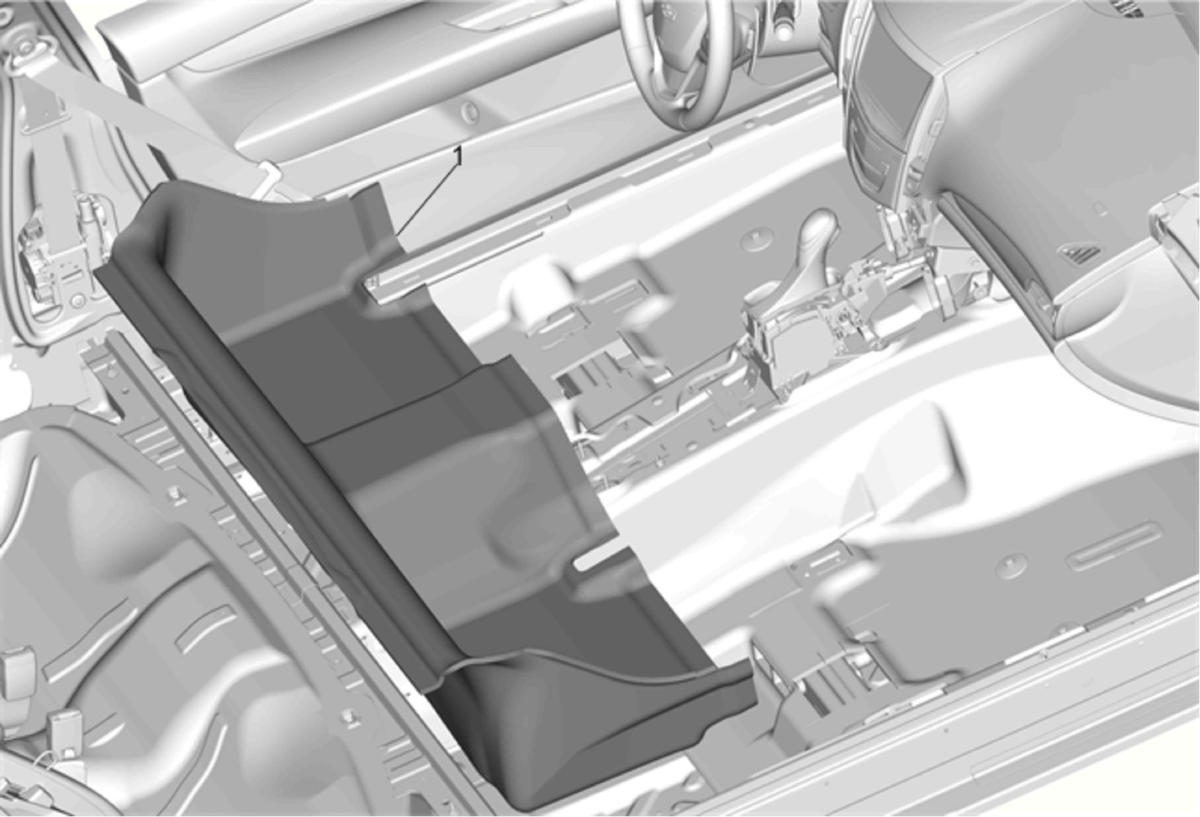

Fig 1: Rear Floor Panel Carpet (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove both the driver and passenger seat. Refer to Driver or Passenger Seat Removal and Installation . Remove rear seat cushion. Refer to Rear Seat Cushion Removal and Installation (Coupe) . Remove the front floor lower console. Refer to Front Floor Lower Console Replacement . Remove the body lock pillar garnish molding. Refer to Body Lock Pillar Garnish Molding Replacement (Coupe) . Remove the front side door sill trim plate. Refer to Front Side Door Sill Trim Plate Replacement (Sedan) .
1	Rear Floor Panel Carpet Procedure Reposition front floor panel carpet as needed.

Callout

Component Name

Preliminary Procedures

Remove both the driver and passenger seat. Refer to Driver or Passenger Seat Removal and Installation .
Remove rear seat cushion. Refer to Rear Seat Cushion Removal and Installation (Coupe) .
Remove the front floor lower console. Refer to Front Floor Lower Console Replacement .
Remove the body lock pillar garnish molding. Refer to Body Lock Pillar Garnish Molding Replacement (Coupe) .
Remove the front side door sill trim plate. Refer to Front Side Door Sill Trim Plate Replacement (Sedan) .

Rear Floor Panel Carpet
Procedure
Reposition front floor panel carpet as needed.
