Transfer Case Front Drive Axle Viscous Clutch Disassemble
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

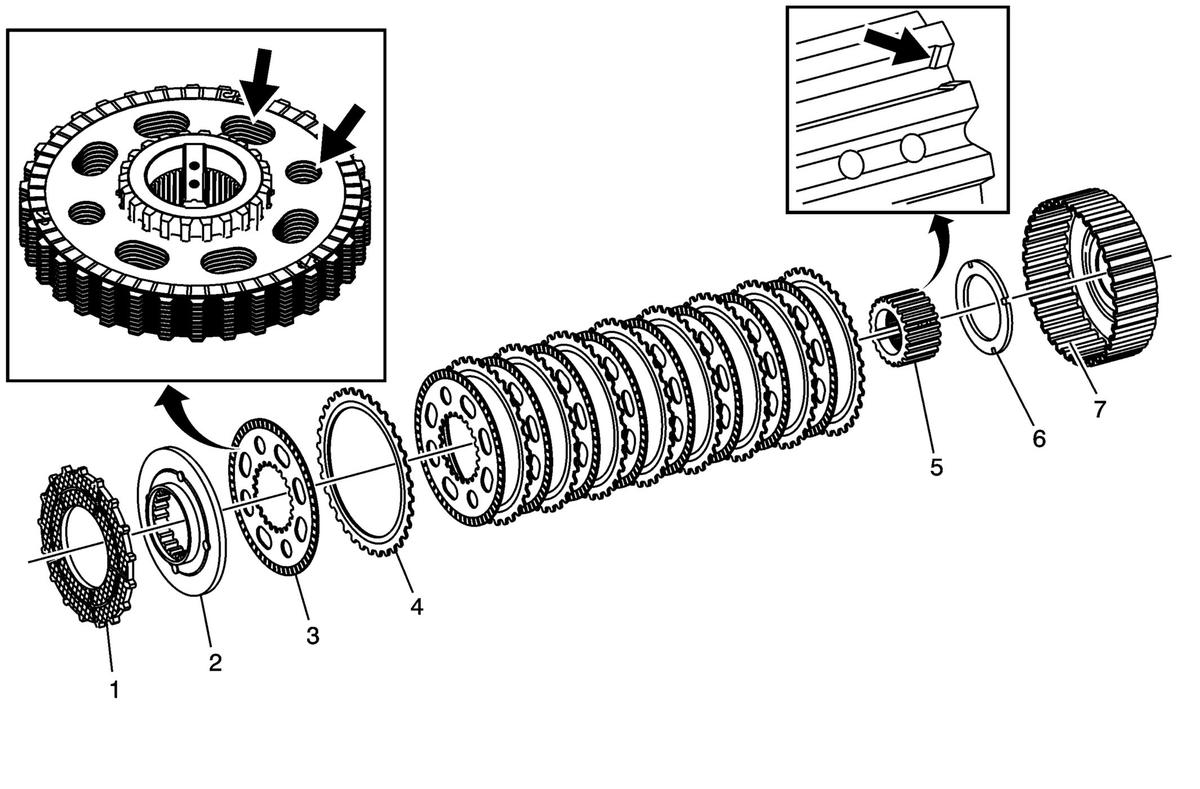

| Callout | Component Name |
|---|---|
|
NOTE:
If the clutch pack assembly is replaced, the TCCM must be recalibrated using the service calibration. Refer to Transfer Case Information Label . |
|
| 1 | Armature |
| 2 | Pressure Plate |
| 3 | Friction Plate
NOTE:
The orientation of the friction plates for assembly. |
| 4 | Separator Plate |
| 5 | Clutch Hub
NOTE:
The orientation of the clutch hub for assembly. |
| 6 | Thrust Washer |
| 7 | Clutch Drum |
