Transfer Case Front Drive Axle Viscous Clutch Assemble

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

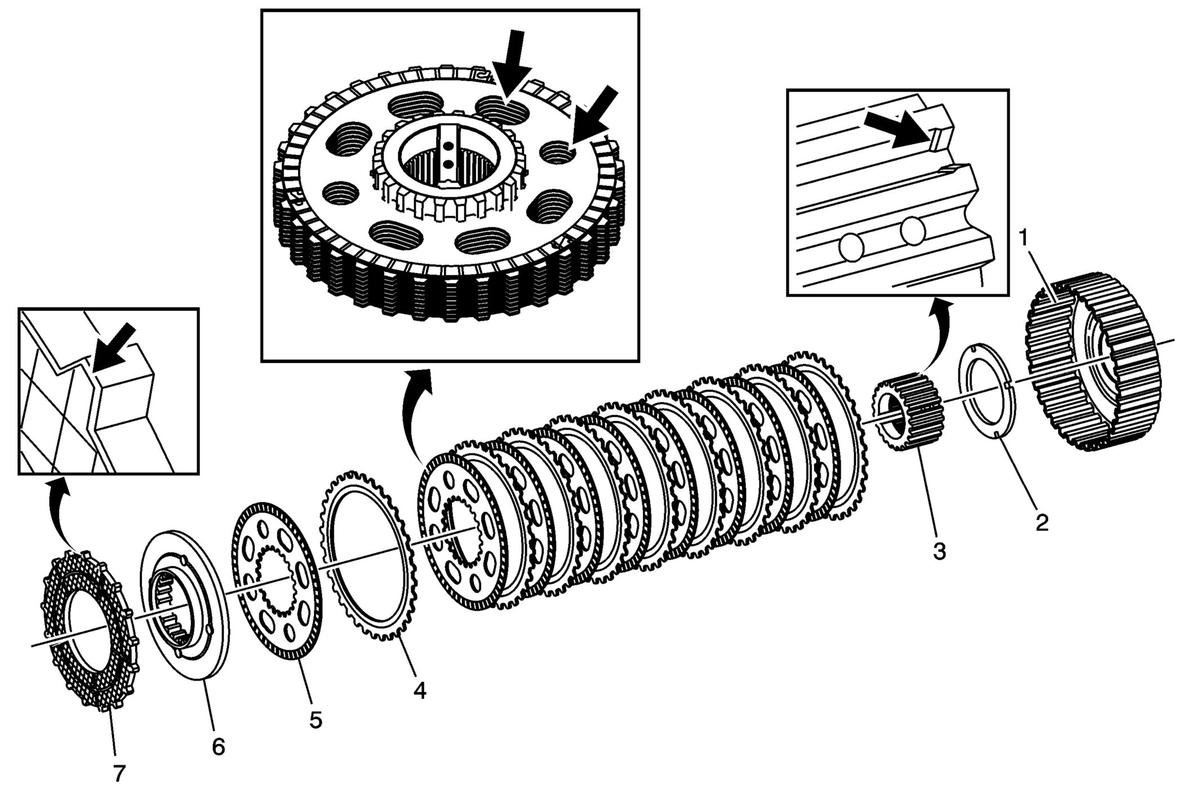

Fig 1: Transfer Case Front Drive Axle Viscous Clutch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
NOTE: If the clutch pack assembly is replaced, the TCCM must be recalibrated using the service calibration. Refer to Transfer Case Information Label .
1	Clutch Drum
2	Thrust Washer
3	Clutch Hub NOTE: Note the orientation of the clutch hub for assembly.
4	Separator Plate
5	Friction Plate NOTE: Note the orientation of the friction plates for assembly. The friction plates are assembled with the lube holes aligned as indicated in order to provide an unrestricted oil path when assembled.
6	Pressure Plate
7	Armature NOTE: The armature is to be installed with the tapered edge outward and facing the rotor.
