Armature and Front Drive Axle Clutch Assembly Removal

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

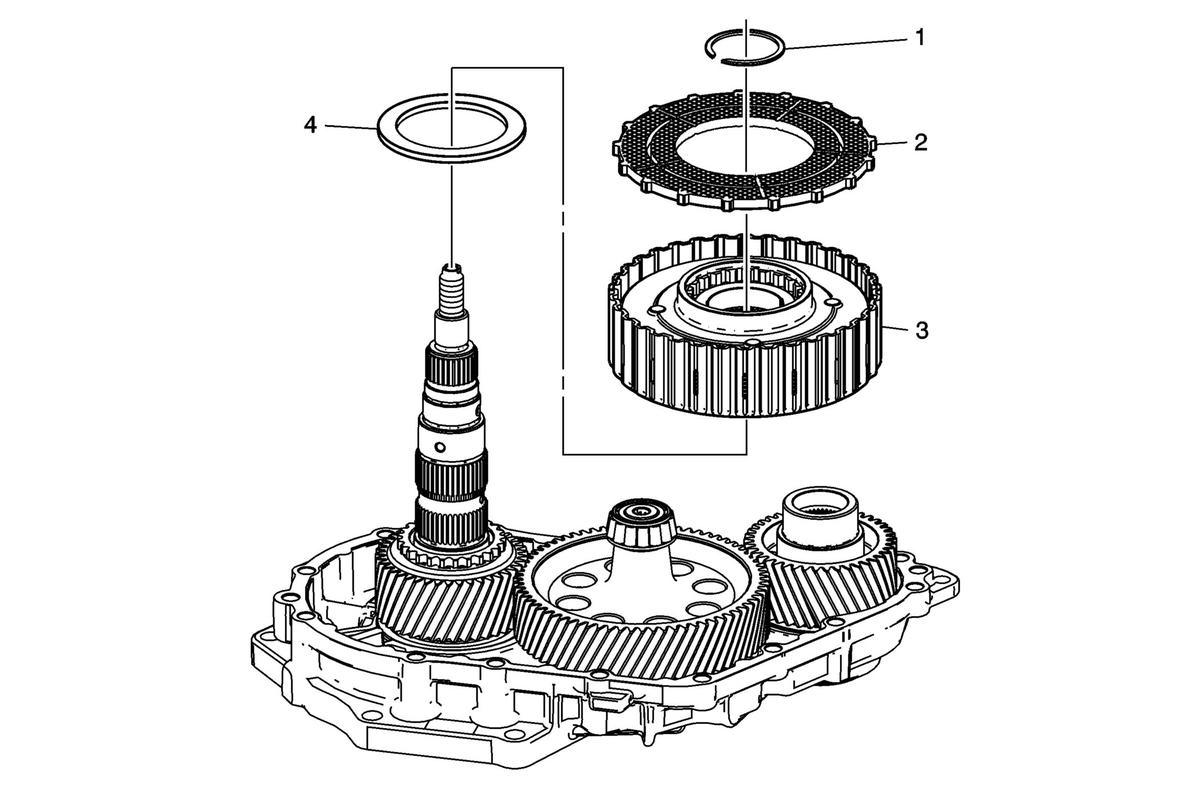

Fig 1: Armature and Front Drive Axle Clutch Assembly
GM2748555Courtesy of GENERAL MOTORS COMPANY
Armature and Front Drive Axle Clutch Assembly Removal

Callout Component Name
1 Two/Four Wheel Drive Clutch Retainer Ring
2 Armature
3 Front Drive Axle Clutch Assembly
Procedure
If the clutch pack assembly is replaced, reprogramming of the transfer case module is required. Refer to Transfer Case Control Module Programming and Setup , and Transfer Case Information Label .
4 Thrust Bearing
