Differential Temperature Sensor Replacement (226mm eLSD)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

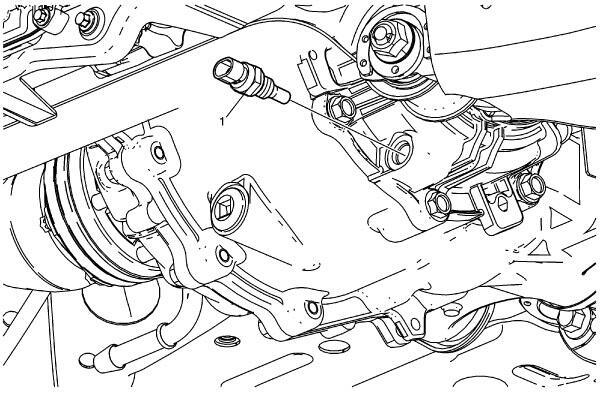

Fig 1: Differential Temperature Sensor (226mm eLSD)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V) . Install a Drain Pan under the vehicle. Drain the differential oil. Refer to Rear Axle Lubricant Replacement (226mm eLSD) .
1	Differential Temperature Sensor CAUTION: Refer to Fastener Caution . Procedure Clean any dirt from around the differential temperature sensor. Remove the temperature sensor and replace with the NEW one. Fill the differential with oil. Refer to Approximate Fluid Capacities . Tighten 10 N.m (89 lb in)

Callout

Component Name

Preliminary Procedure

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V) .
Install a Drain Pan under the vehicle.
Drain the differential oil. Refer to Rear Axle Lubricant Replacement (226mm eLSD) .

Differential Temperature Sensor

CAUTION:

Refer to Fastener Caution .

Procedure

Clean any dirt from around the differential temperature sensor.
Remove the temperature sensor and replace with the NEW one.
Fill the differential with oil. Refer to Approximate Fluid Capacities .

Tighten
10 N.m (89 lb in)
