Water Pump Removal (LCV)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

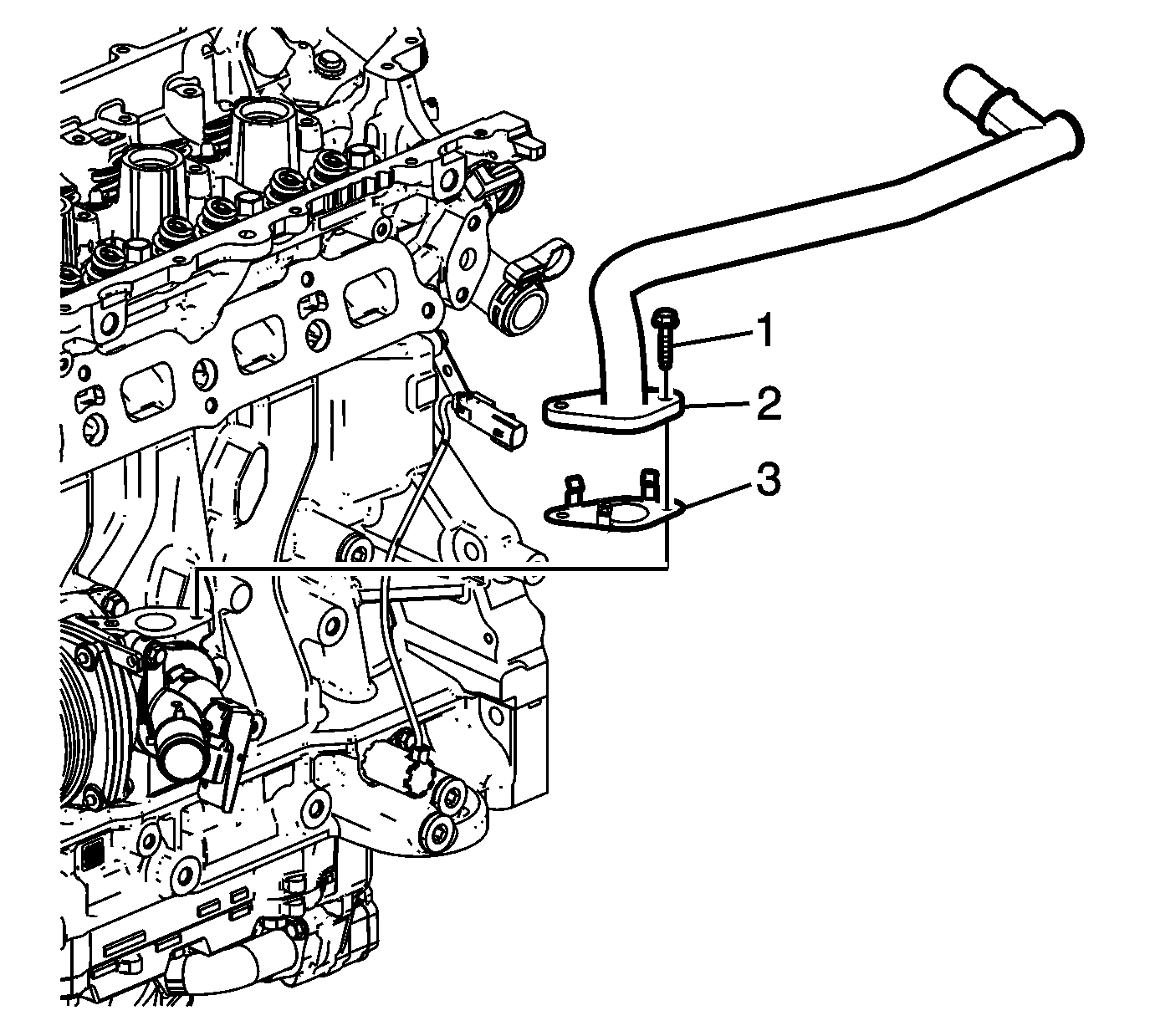

    Fig 1: Thermal Bypass Pipe, Bolts And Gasket
    GM2726767Courtesy of GENERAL MOTORS COMPANY
  1. Remove the thermal bypass pipe (2), bolts (1), and gasket (3) from the water pump assembly. Discard the gasket. Disconnect the pipe from the water outlet assembly.
    2. Fig 2: Water Outlet Assembly Components
    GM2726770Courtesy of GENERAL MOTORS COMPANY
  2. Remove the retaining clip (5) and engine coolant temperature sensor (2).
    3. NOTE:

    The water outlet assembly may vary by model.

  3. Remove the water outlet assembly (1), bolts (4), and gasket seal (3). Discard the gasket.
    4. Fig 3: Thermostat Assembly And Water Pump Assembly
    GM2726772Courtesy of GENERAL MOTORS COMPANY
  4. Remove the thermostat assembly (2), bolts (3), and gasket seal (4). Discard the gasket.
  5. Remove the water pump assembly (5), bolts (1), and seal (6). Discard the seal.
