Oil Pan Removal (LTG)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

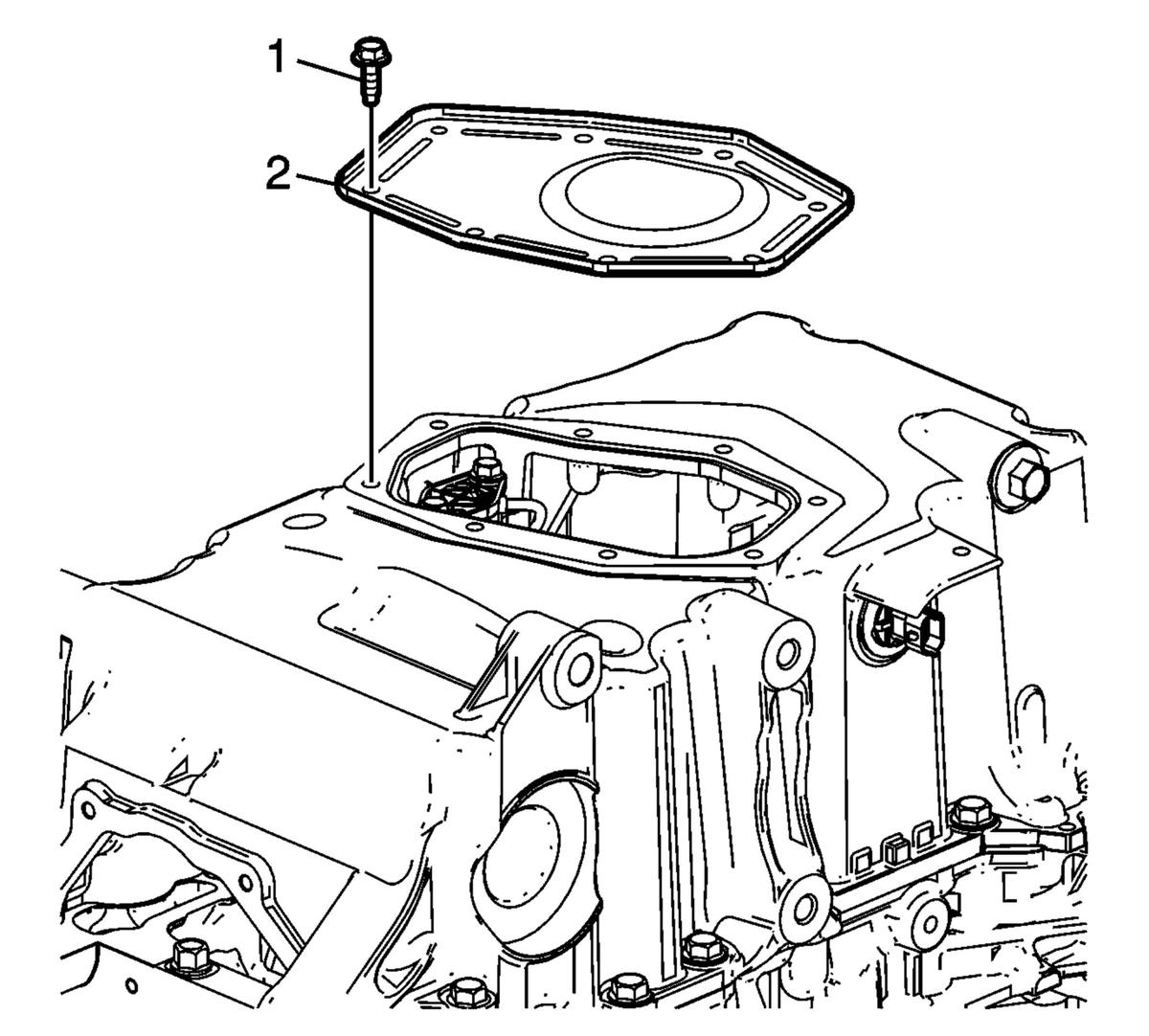

Fig 1: Lower Oil Pan And Bolts

Courtesy of GENERAL MOTORS COMPANY

Remove the lower oil pan bolts (1).
Remove the lower oil pan (2).

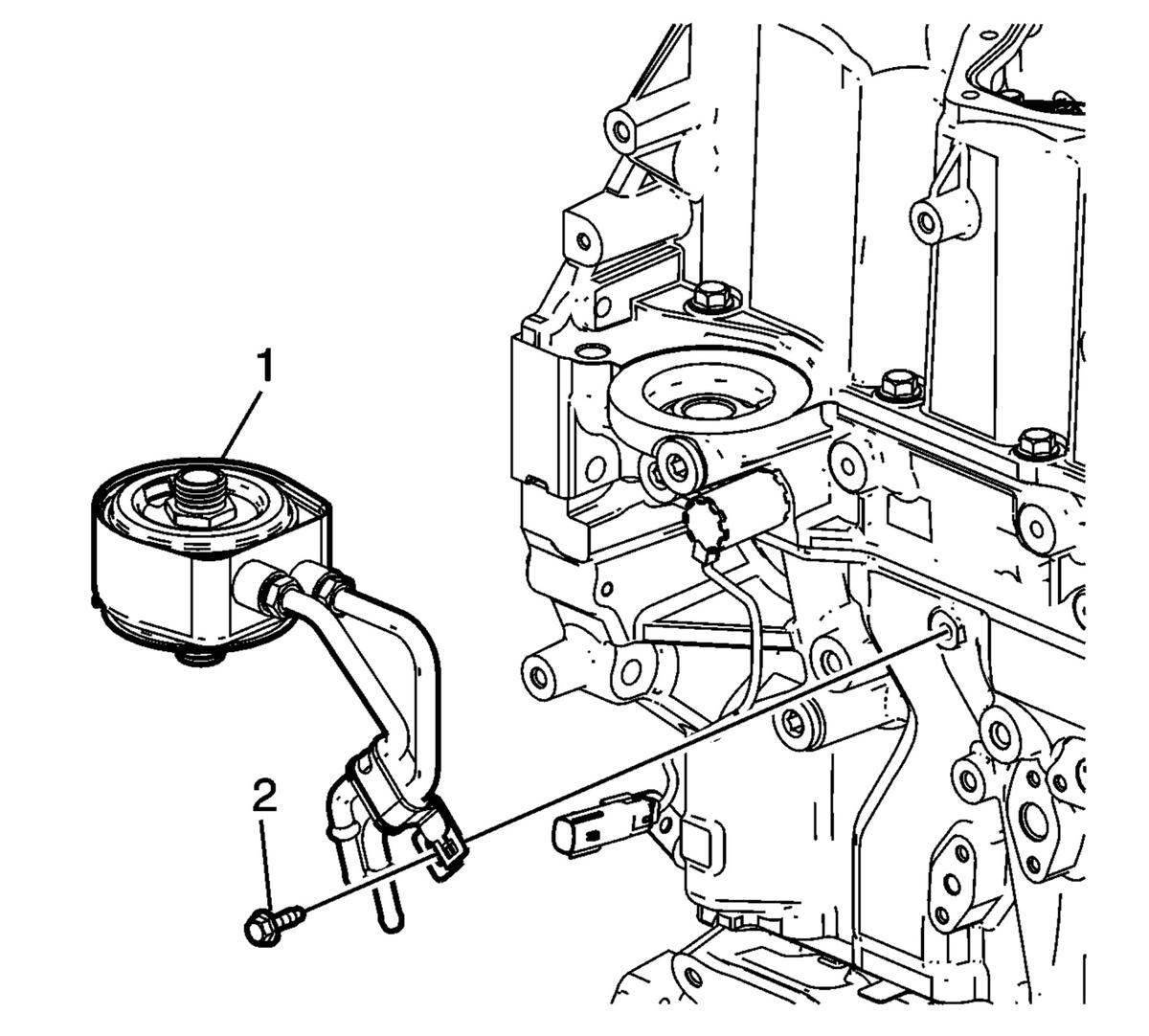

Fig 2: Engine Oil Cooler And Bolts

Courtesy of GENERAL MOTORS COMPANY

Remove the engine oil cooler (1) and bolts (2).

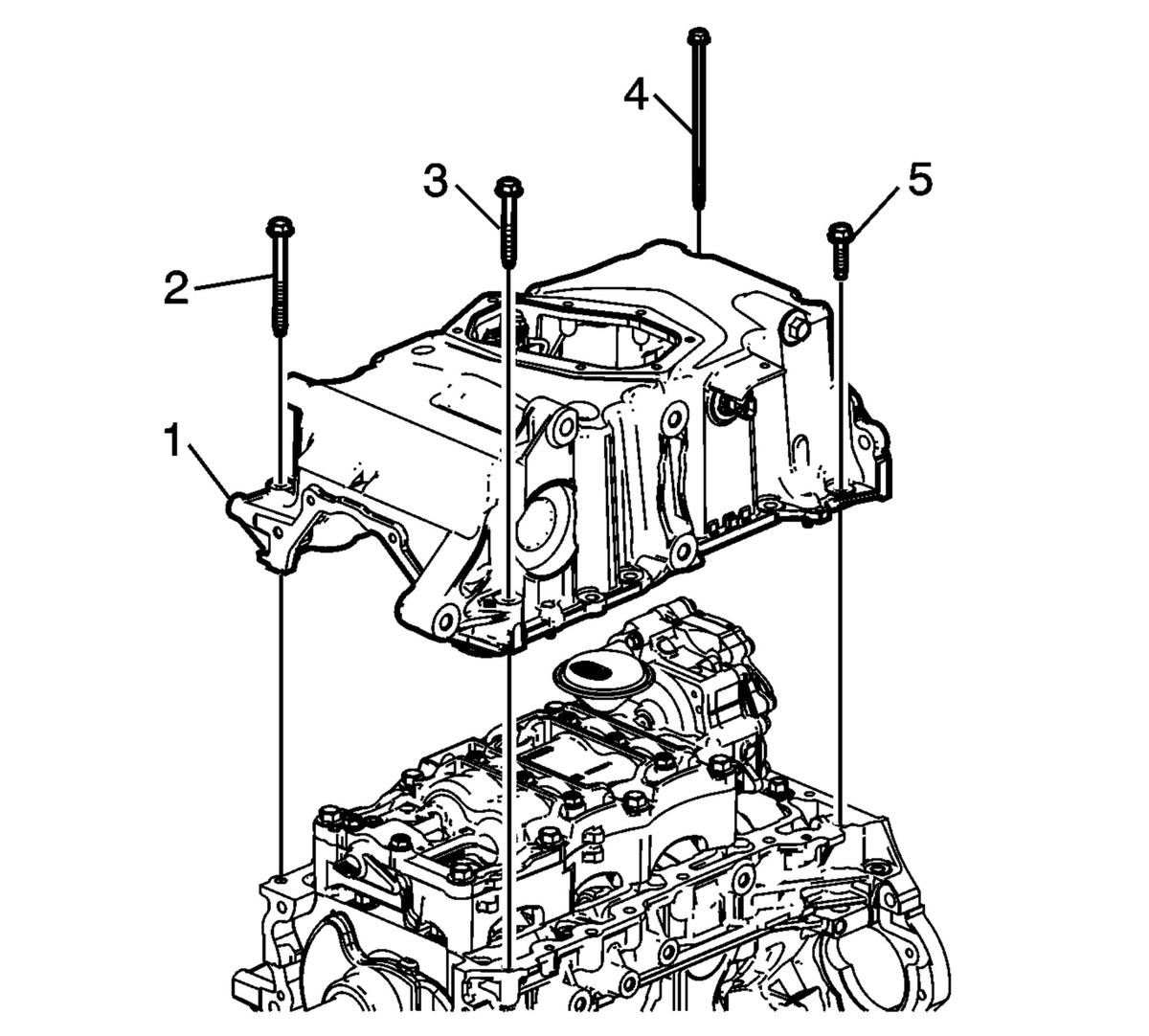

Fig 3: Upper Oil Pan And Bolts

Courtesy of GENERAL MOTORS COMPANY

Remove the upper oil pan bolts (2-5).
Remove the upper oil pan (1).
