Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V)

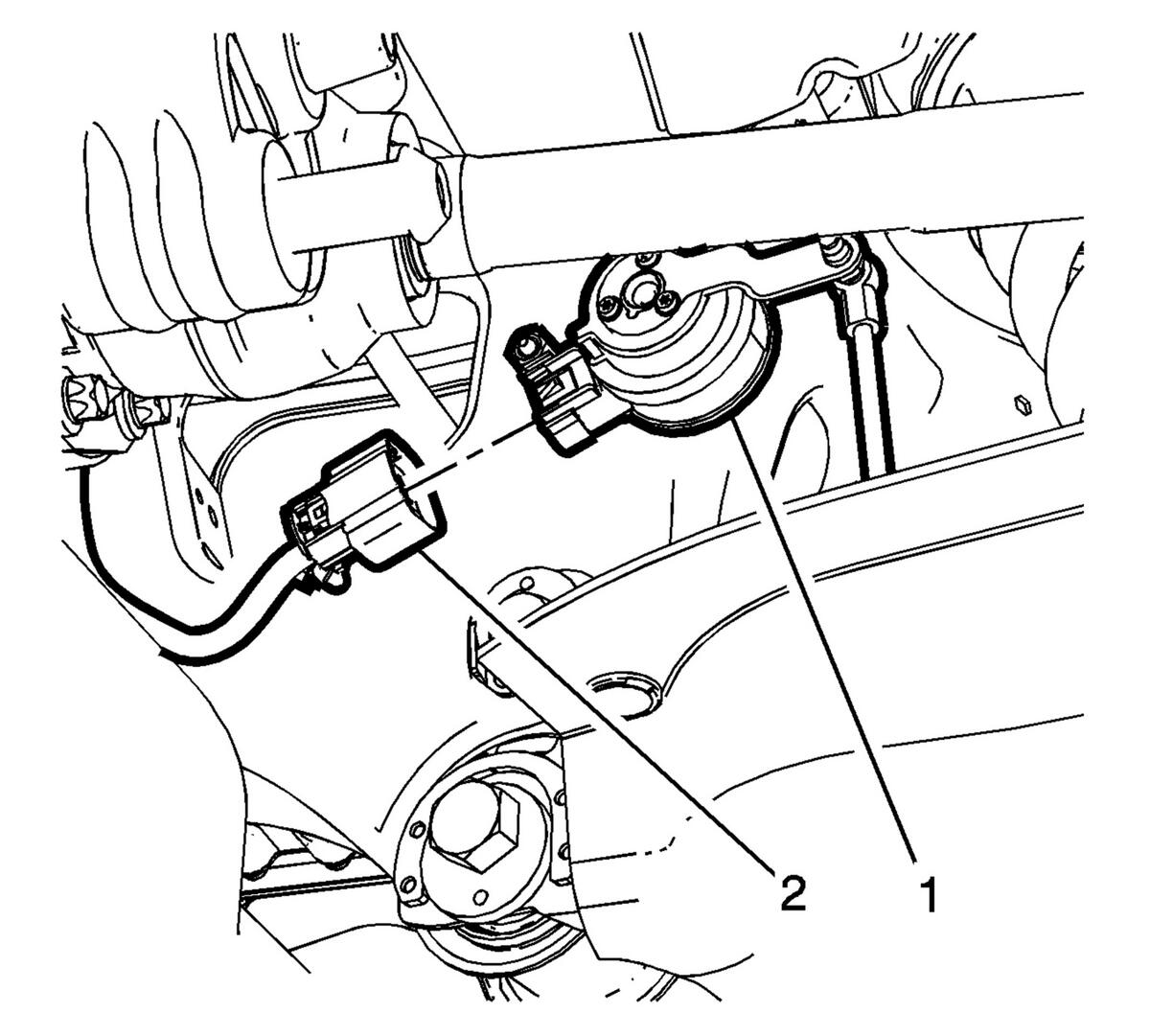

    2. Fig 1: Electronic Level Sensor & Electrical Connector
    GM2868758Courtesy of GENERAL MOTORS COMPANY
  2. Disconnect the electrical connector (2) from the electronic level sensor (1).
  3. Remove the right side rear suspension lower control arm cover. Refer to Rear Suspension Lower Control Arm Cover Replacement

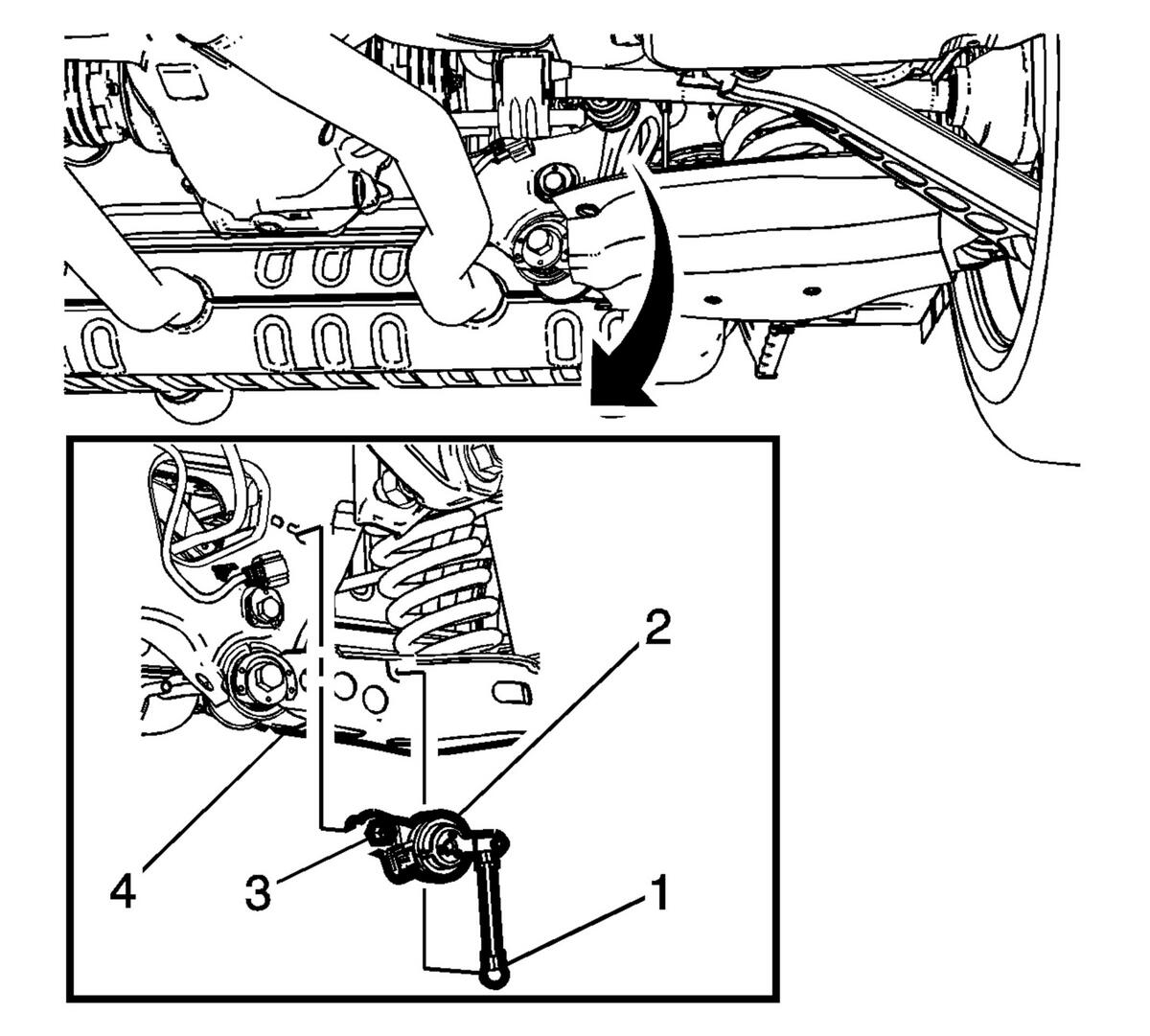

    4. Fig 2: Level Sensor & Related Components
    GM2868780Courtesy of GENERAL MOTORS COMPANY
  4. Disconnect the level sensor link (1) from the lower control arm (4).
  5. Loosen the level sensor nut (3).
  6. Remove the level sensor (2) from the vehicle.
