Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Use care when removing or installing the stabilizer shaft as coating can be removed by contact with tools or other vehicle components. Corrosion will occur and early stabilizer shaft failure will be the result.

Remove Exhaust Muffler Exhaust Muffler Replacement (LCV)Exhaust Muffler Replacement (LTG)

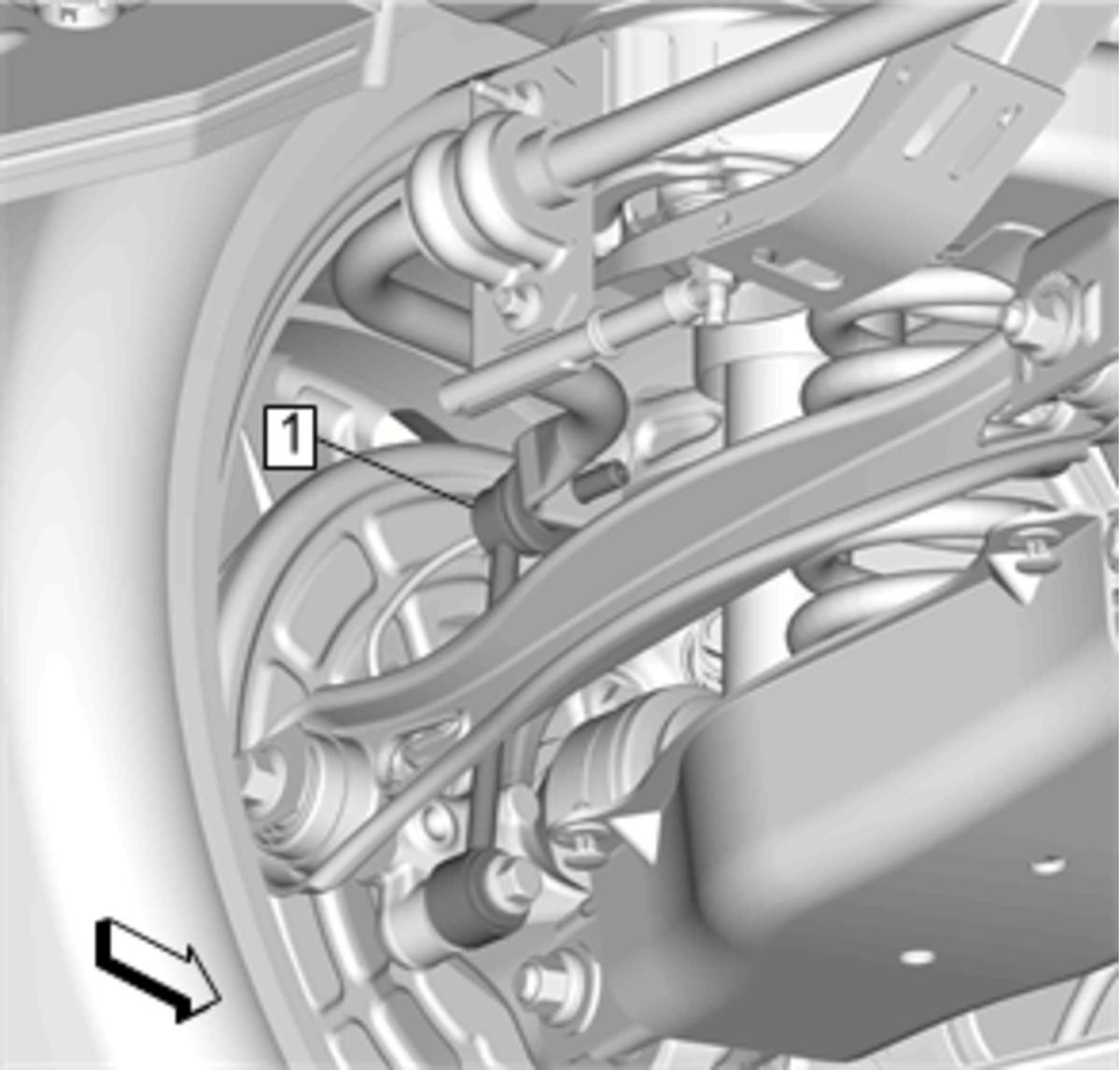

Fig 1: Rear Stabilizer Shaft Link

Courtesy of GENERAL MOTORS COMPANY

Separate Rear Stabilizer Shaft Link (1) @Right Side Stabilizer Shaft Link Replacement

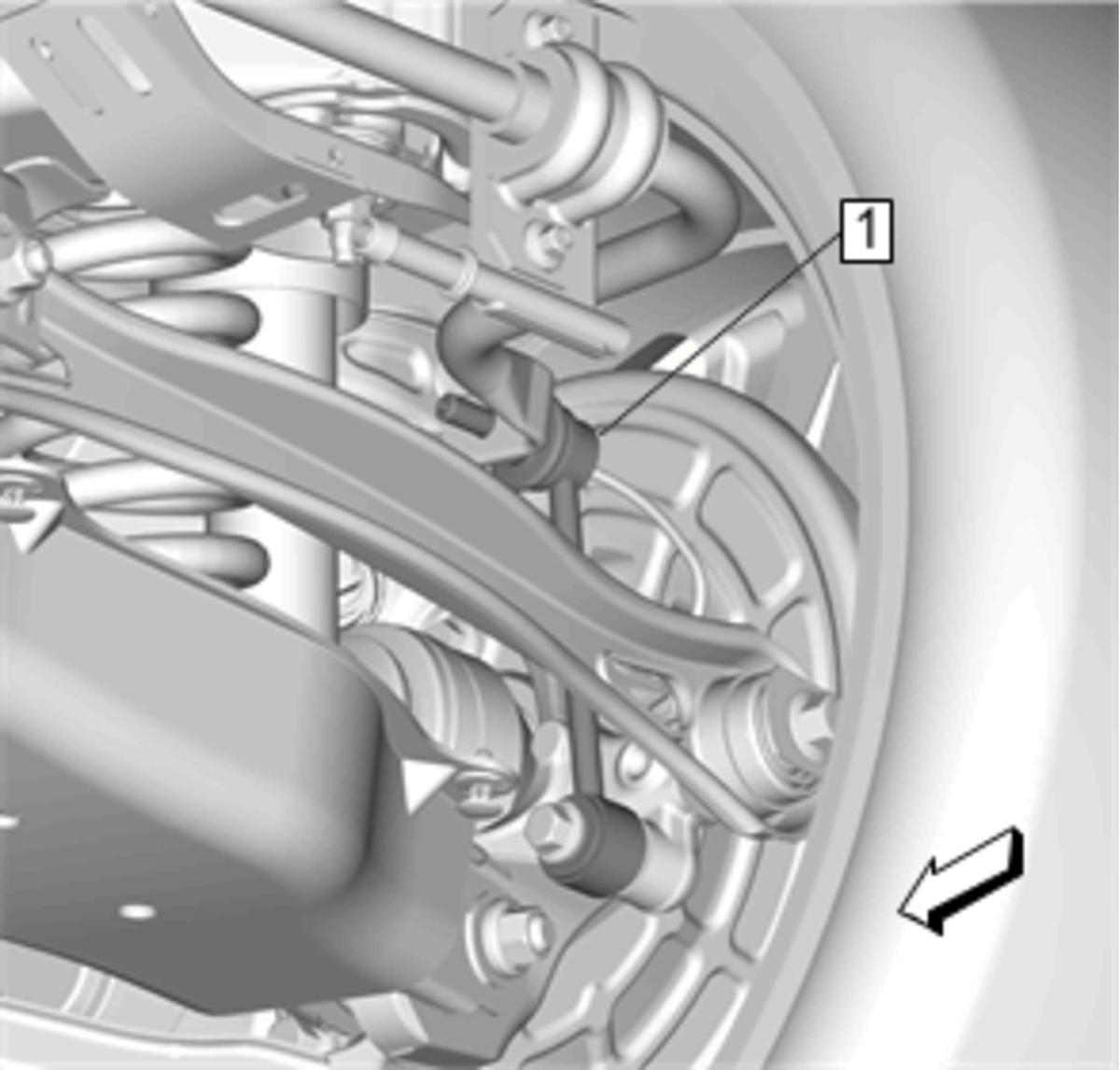

Fig 2: Rear Stabilizer Shaft Link

Courtesy of GENERAL MOTORS COMPANY

Separate Rear Stabilizer Shaft Link (1) @Left Side Stabilizer Shaft Link Replacement

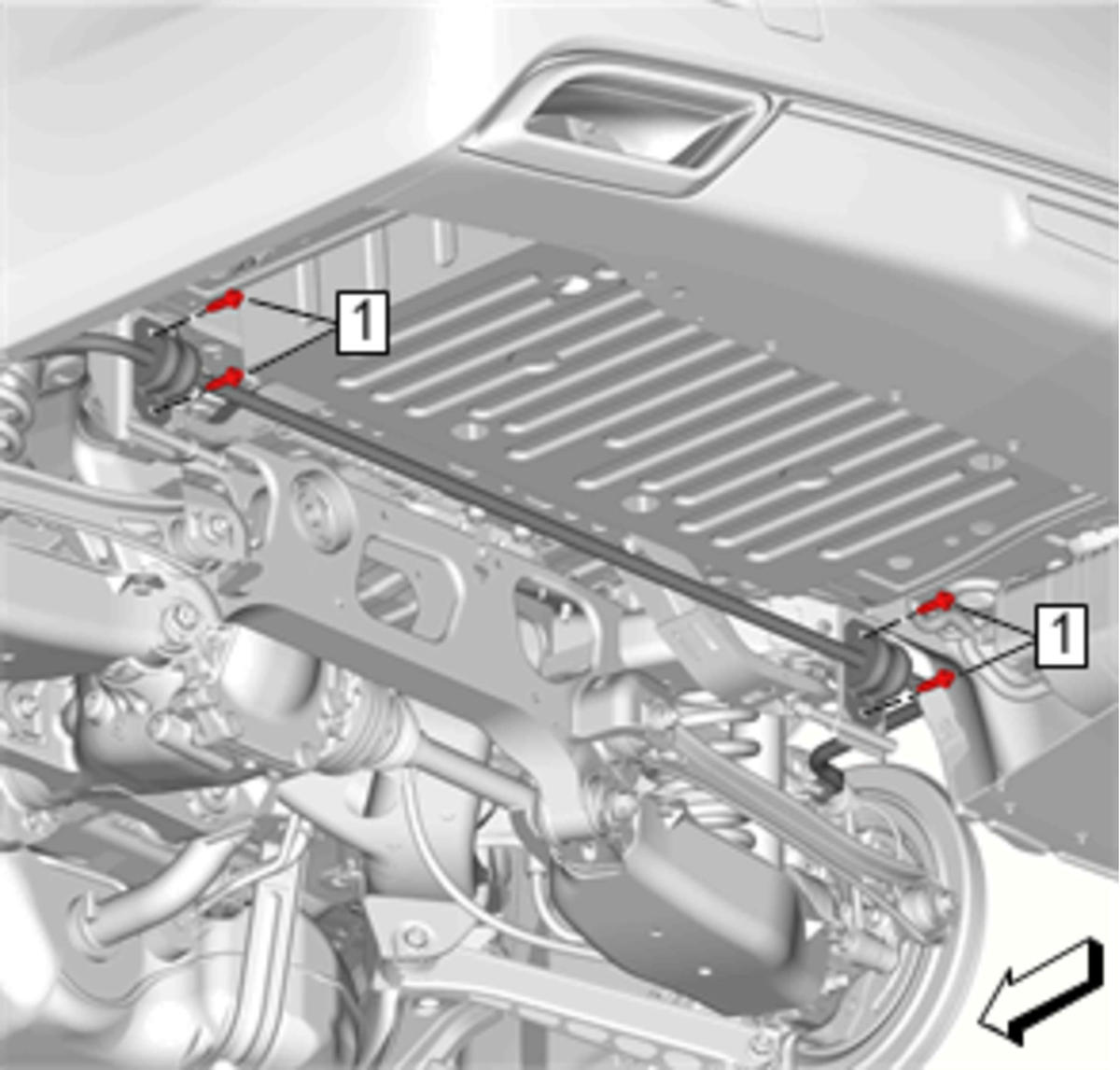

Fig 3: Rear Stabilizer Shaft Insulator Clamp Bolt

Courtesy of GENERAL MOTORS COMPANY

Remove Rear Stabilizer Shaft Insulator Clamp Bolt (1)

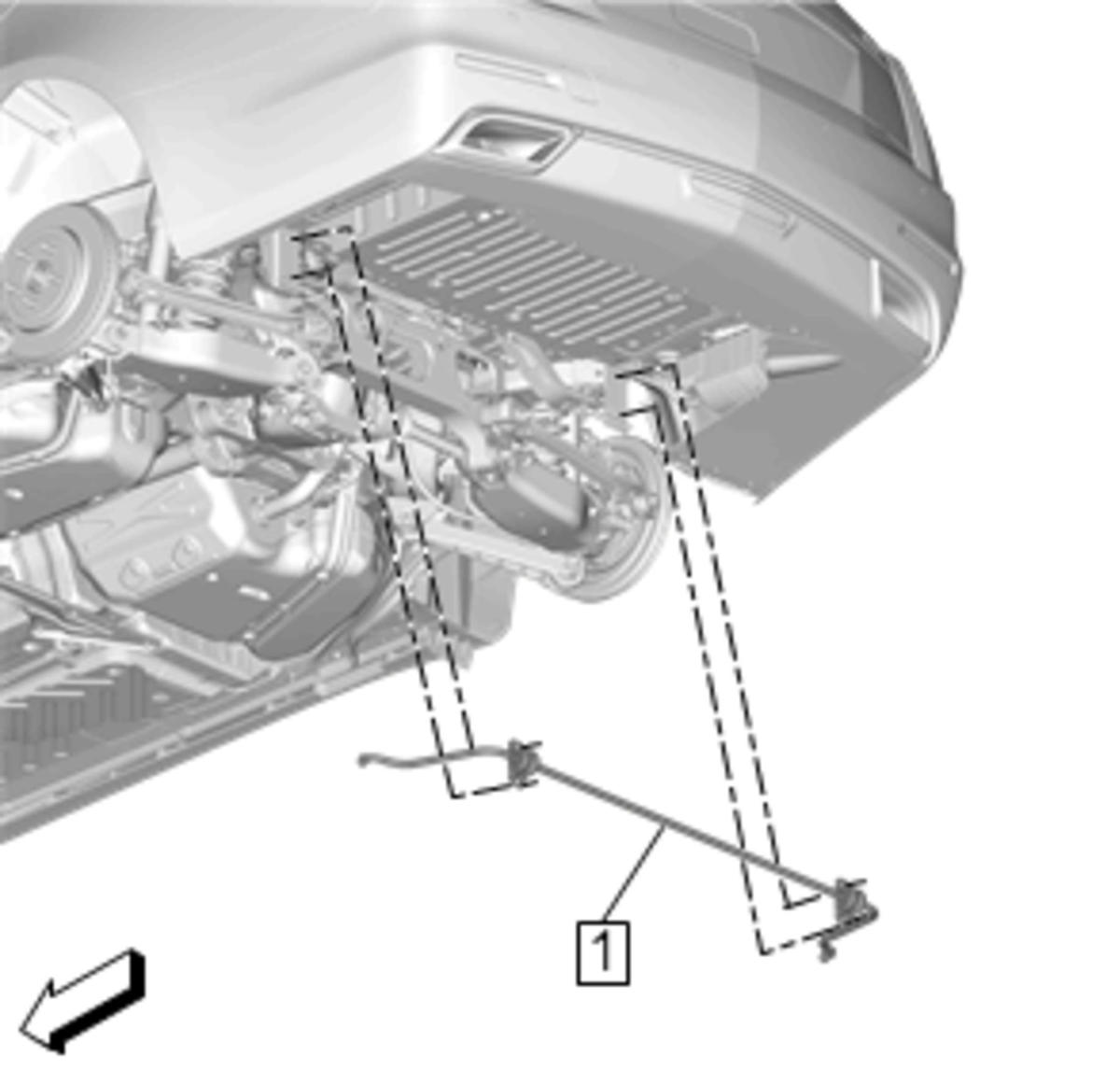

Fig 4: Rear Stabilizer Shaft

Courtesy of GENERAL MOTORS COMPANY

Remove Rear Stabilizer Shaft (1)
