Stabilizer Shaft Link Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

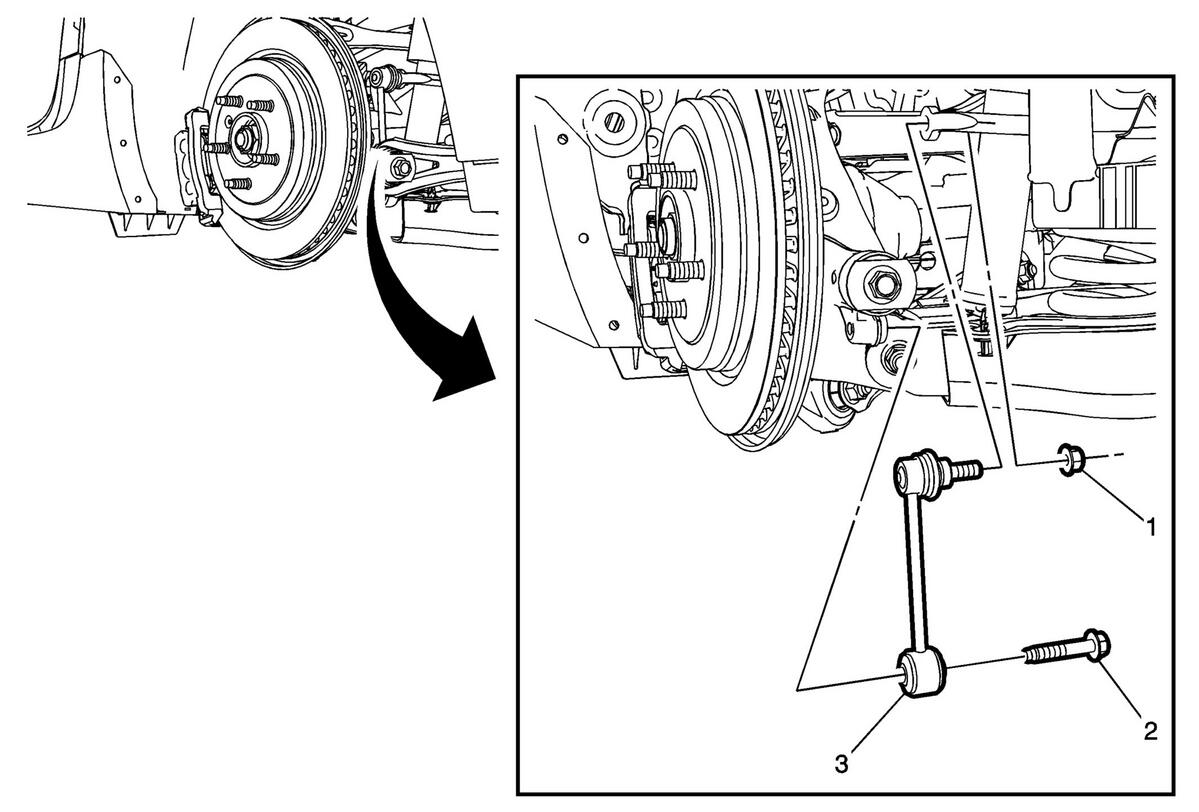

Fig 1: Stabilizer Shaft Link

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V) . Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (Non V-Series)Tire and Wheel Removal and Installation (V-Series) . Remove the rear suspension lower control arm cover. Refer to Rear Suspension Lower Control Arm Cover Replacement .
1	Stabilizer Shaft Link Nut CAUTION: Refer to Fastener Caution . Procedure Using the proper size allen wrench, hold the upper stabilizer shaft ball stud. Remove the upper stabilizer shaft link nut. NOTE: DO NOT allow the upper stabilizer shaft ball stud to rotate. Tighten 43 N.m (32 lb ft) NOTE: Tighten at curb height using jackstands. Refer to Height Measurements.
2	Stabilizer Shaft Link Bolt Procedure Remove the stabilizer shaft bolt. Tighten 58 N.m (43 lb ft)
3	Stabilizer Shaft Link
