Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION:

    Use care when removing or installing the stabilizer shaft as coating can be removed by contact with tools or other vehicle components. Corrosion will occur and early stabilizer shaft failure will be the result.

  1. Remove the rear tire and wheel assemblies. Tire and Wheel Removal and Installation (V-Series)

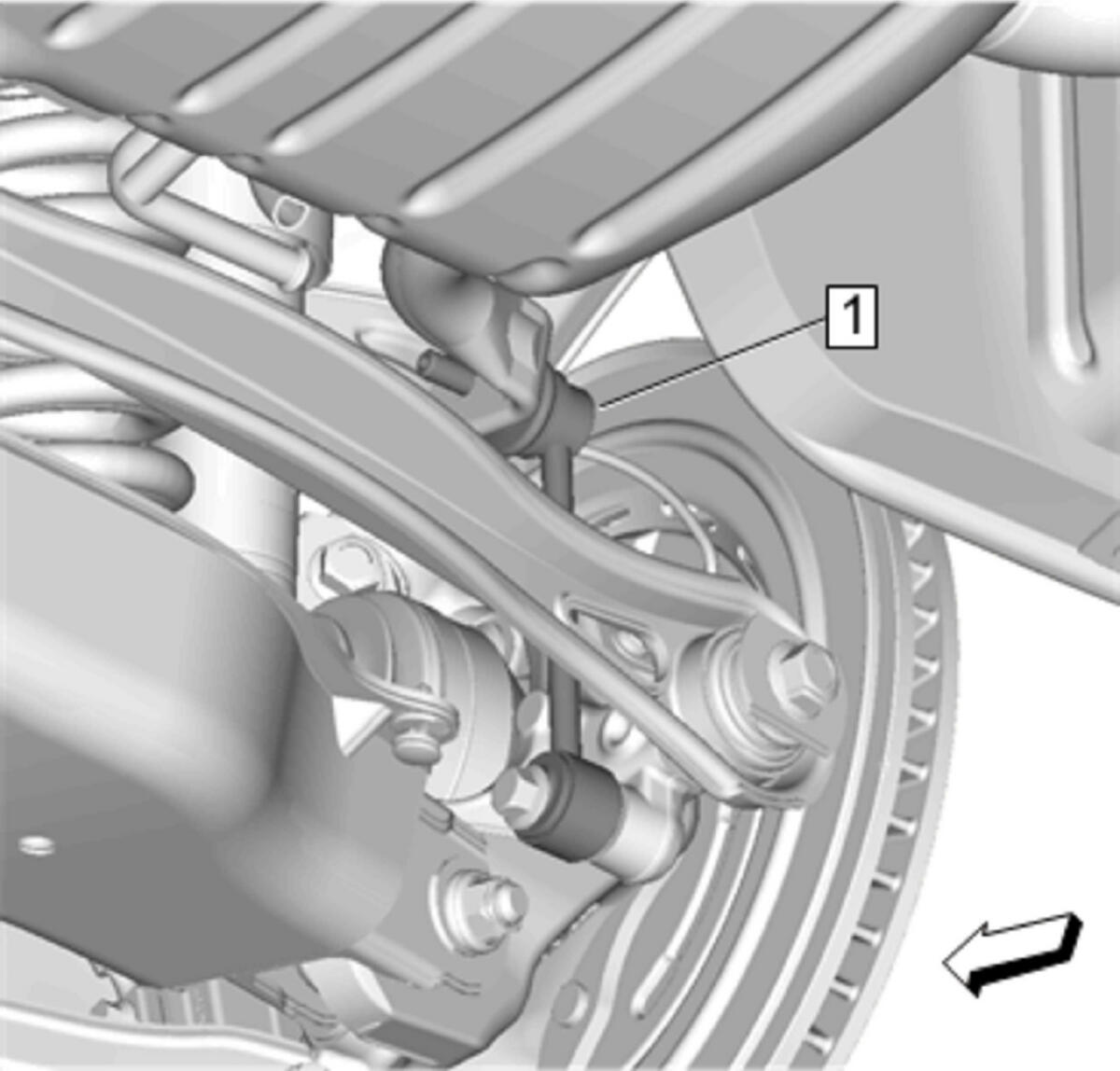

    2. Fig 1: Rear Stabilizer Shaft Link
    GM4419336Courtesy of GENERAL MOTORS COMPANY
  2. Separate Rear Stabilizer Shaft Link (1) @Right Side Stabilizer Shaft Link Replacement

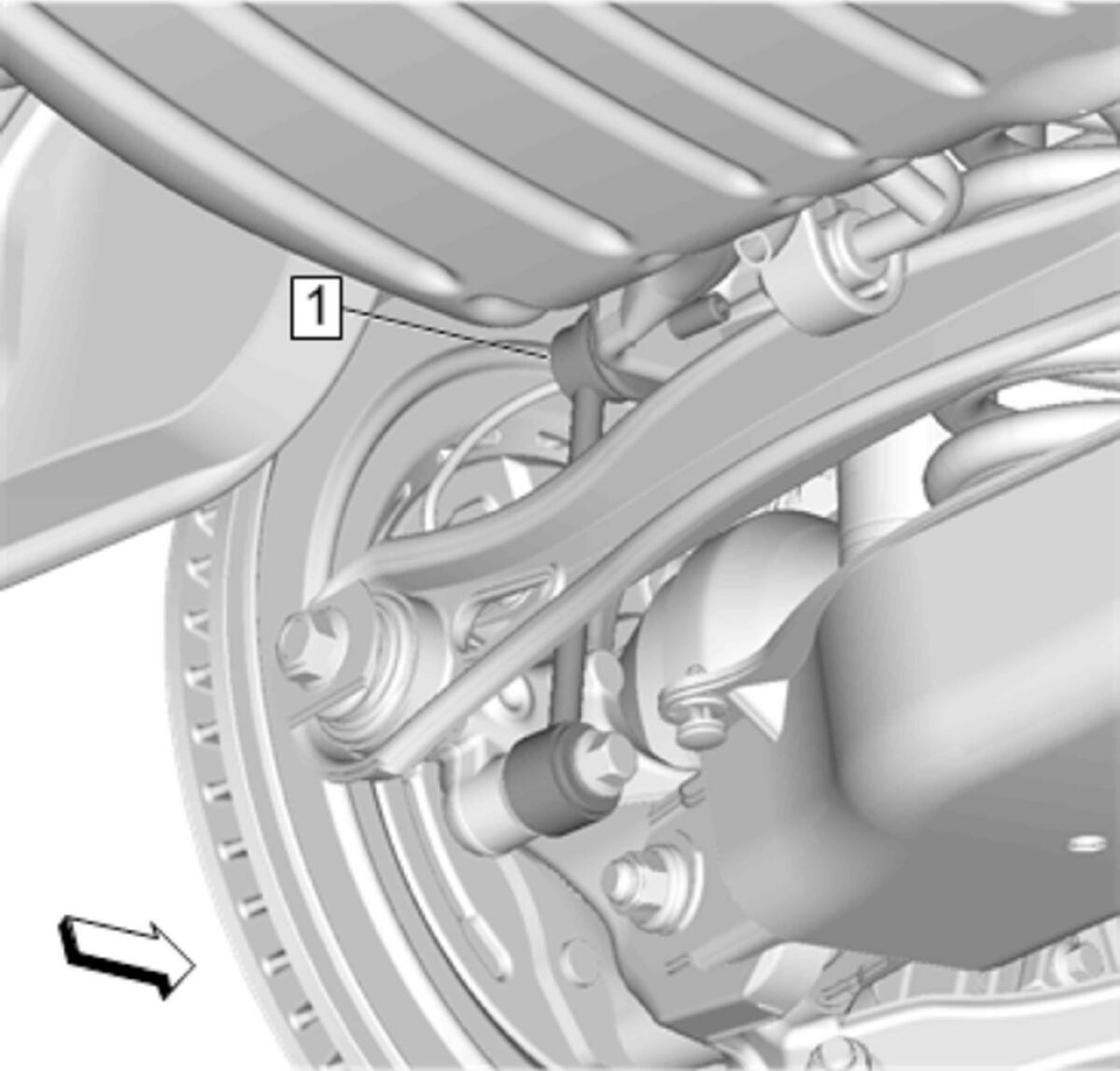

    3. Fig 2: Rear Stabilizer Shaft Link
    GM4419335Courtesy of GENERAL MOTORS COMPANY
  3. Separate Rear Stabilizer Shaft Link (1) @Left Side Stabilizer Shaft Link Replacement

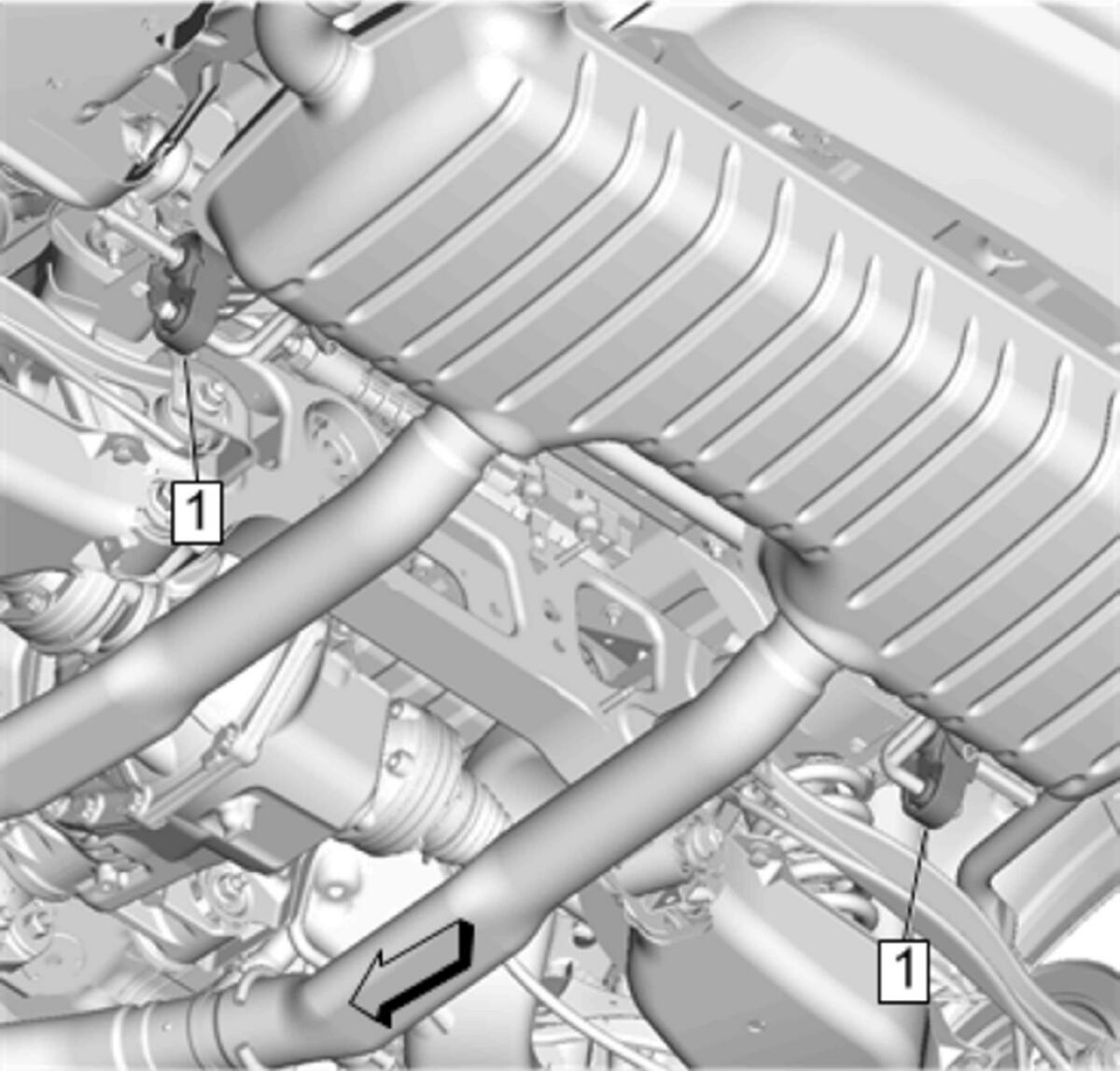

    4. Fig 3: Rear Exhaust Muffler Isolators
    GM4419334Courtesy of GENERAL MOTORS COMPANY
  4. Remove the two rear exhaust muffler isolators (1). Exhaust Muffler Replacement (LF4)
  5. Remove the wiring harness from the top left stabilizer shaft insulator clamp bolt.

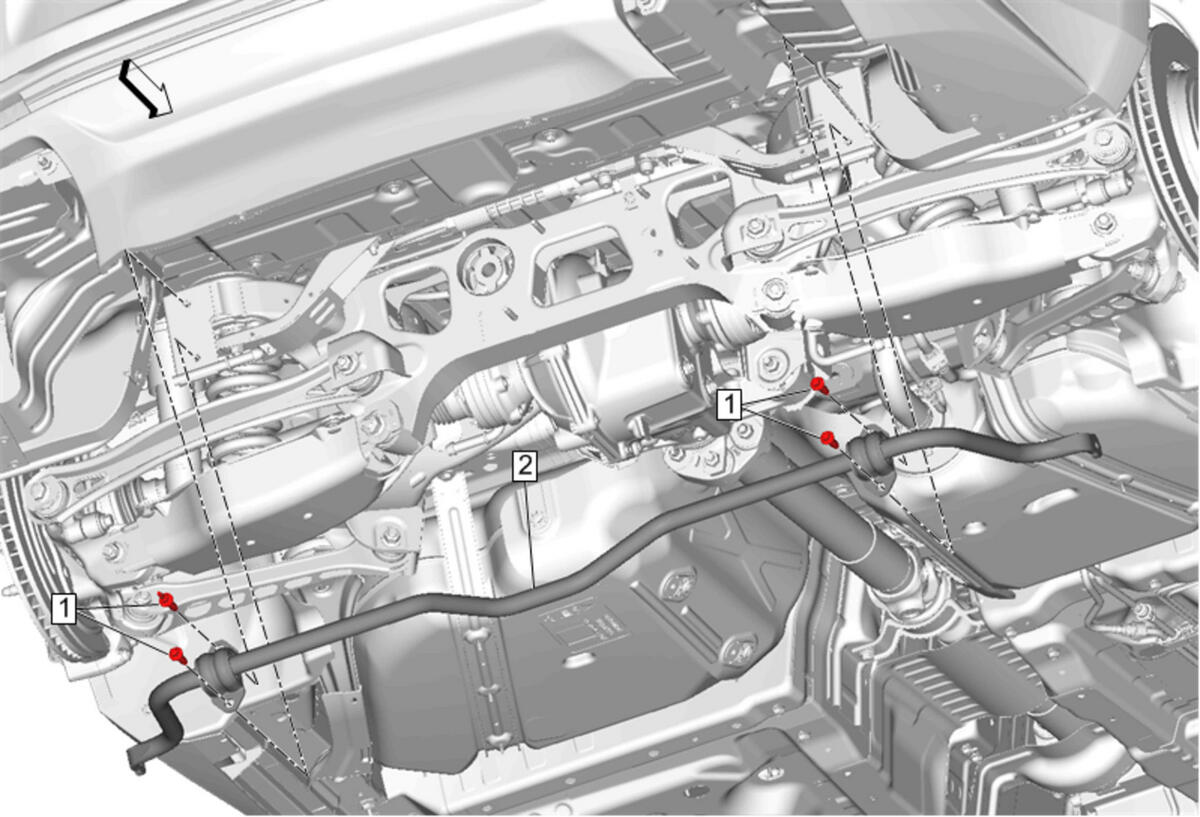

    6. Fig 4: Rear Stabilizer Shaft And Insulator Clamp Bolt
    GM4419339Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The Exhaust Muffler is removed for illustration purposes only. It is not necessary to remove the Exhaust Muffler to remove the Stabilizer Shaft.

  6. Remove Rear Stabilizer Shaft Insulator Clamp Bolt (1)
  7. Remove Rear Stabilizer Shaft (2)
