Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V) .
  2. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (Non V-Series)Tire and Wheel Removal and Installation (V-Series) .
  3. Remove the rear wheelhouse panel liner. Refer to Rear Wheelhouse Liner Replacement (Non V-Series)Rear Wheelhouse Liner Replacement (V-Series) .
  4. Remove the rear suspension lower control arm cover. Refer to Rear Suspension Lower Control Arm Cover Replacement .

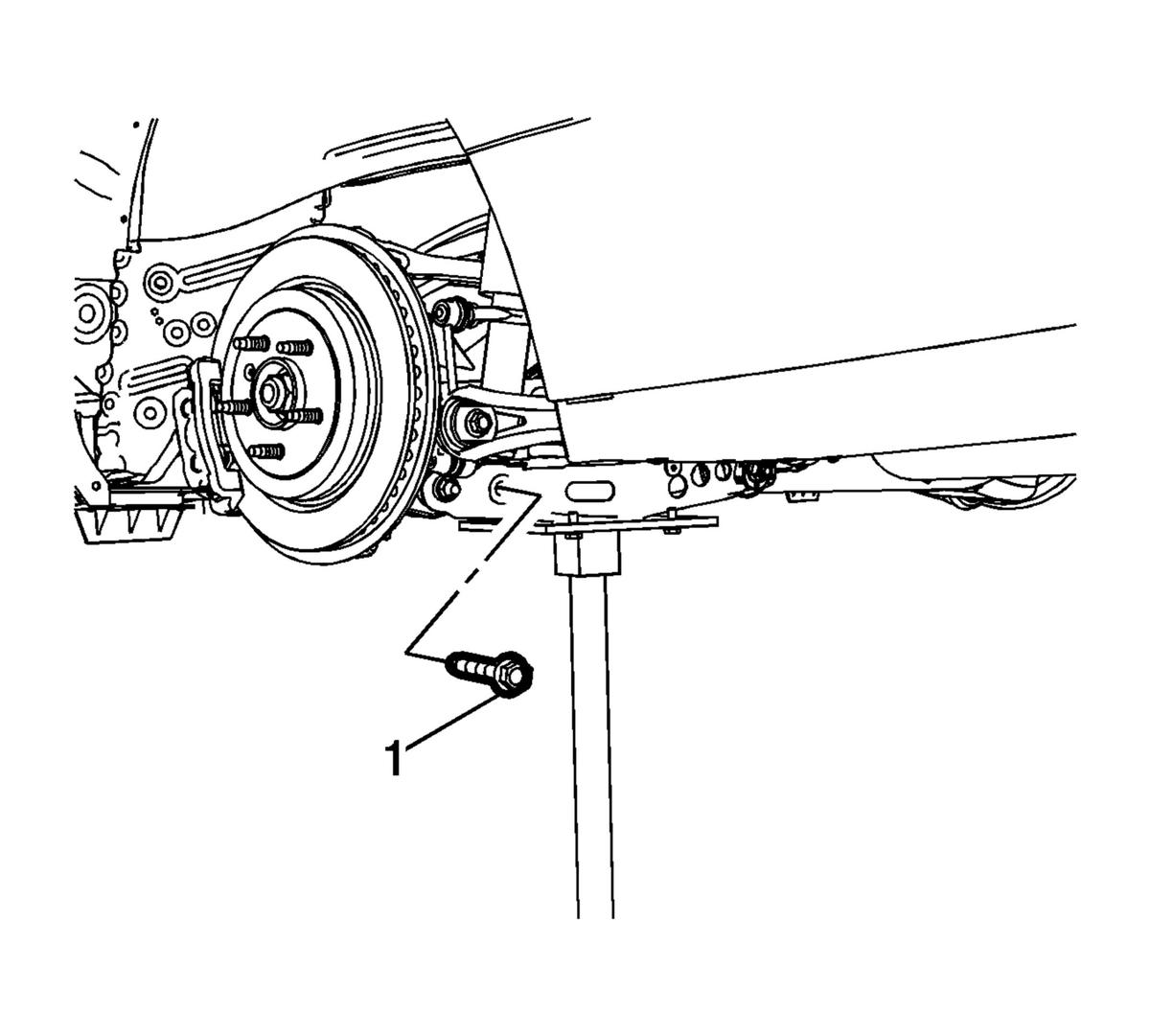

    5. Fig 1: Lower Rear Shock Absorber Bolt
    GM2862531Courtesy of GENERAL MOTORS COMPANY
  5. Using a hydraulic jack, support the rear lower control arm.
  6. Remove and discard the lower rear shock absorber bolt (1).
  7. Remove the rear shock absorber electrical connection, if applicable.

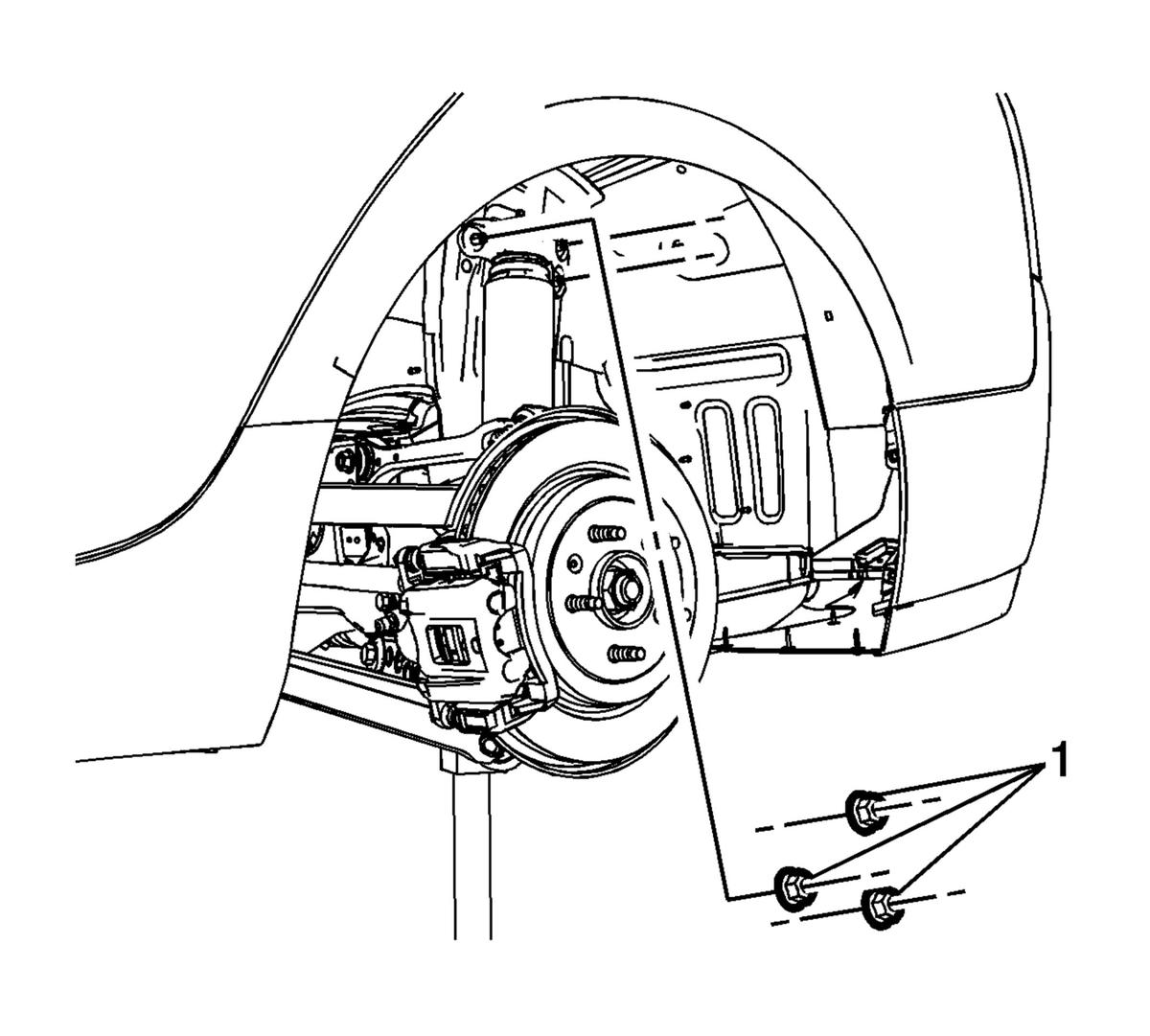

    8. Fig 2: Upper Shock Absorber Nuts
    GM2862533Courtesy of GENERAL MOTORS COMPANY
  8. Remove the 3 upper shock absorber nuts (1).

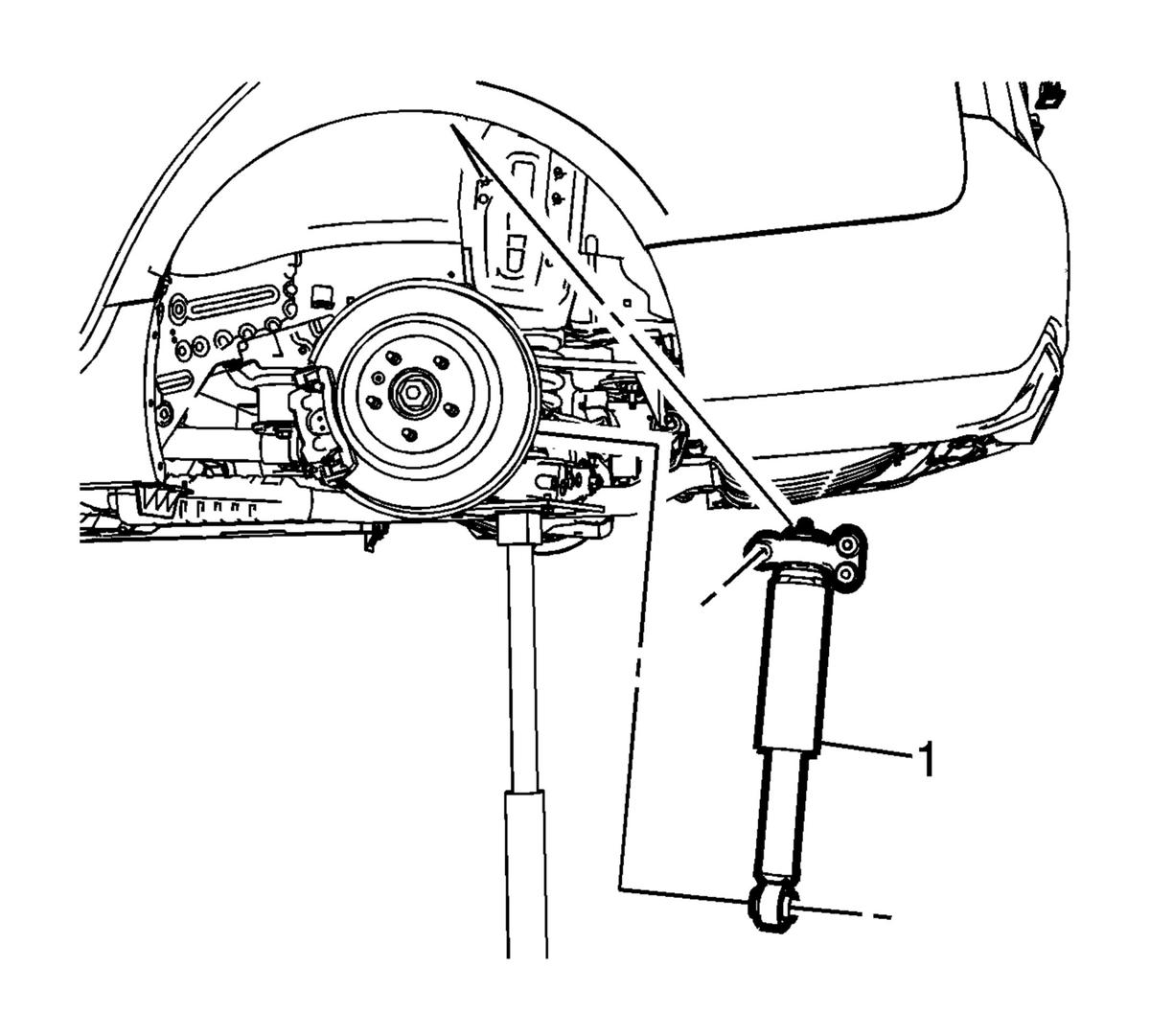

    9. Fig 3: Rear Shock Absorber
    GM2862534Courtesy of GENERAL MOTORS COMPANY
  9. Remove the rear shock absorber (1) from the vehicle.
