Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION:

    Refer to Fastener Caution .

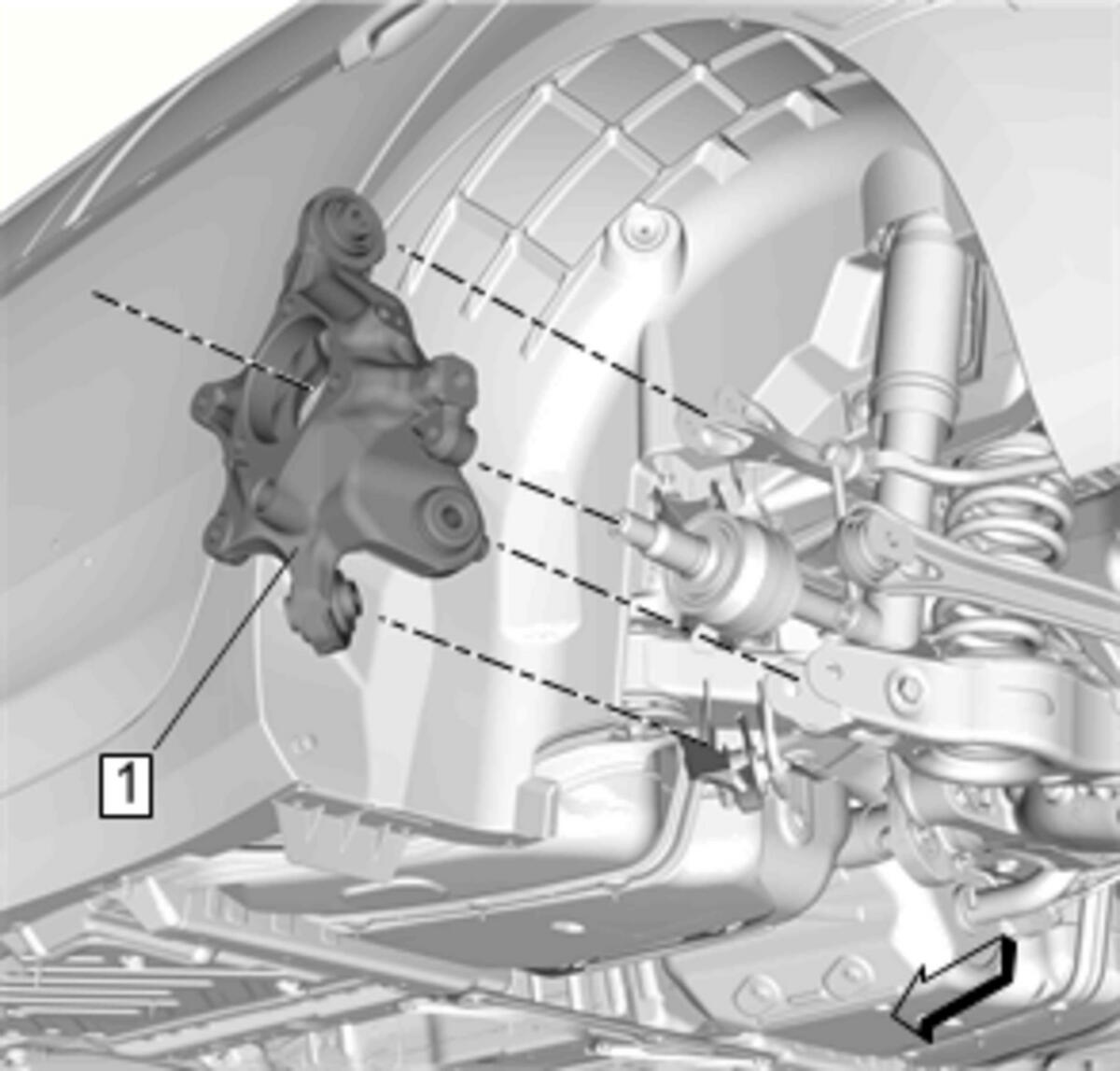

    Fig 1: Knuckle
    GM3966970Courtesy of GENERAL MOTORS COMPANY
  1. Install Knuckle(1)

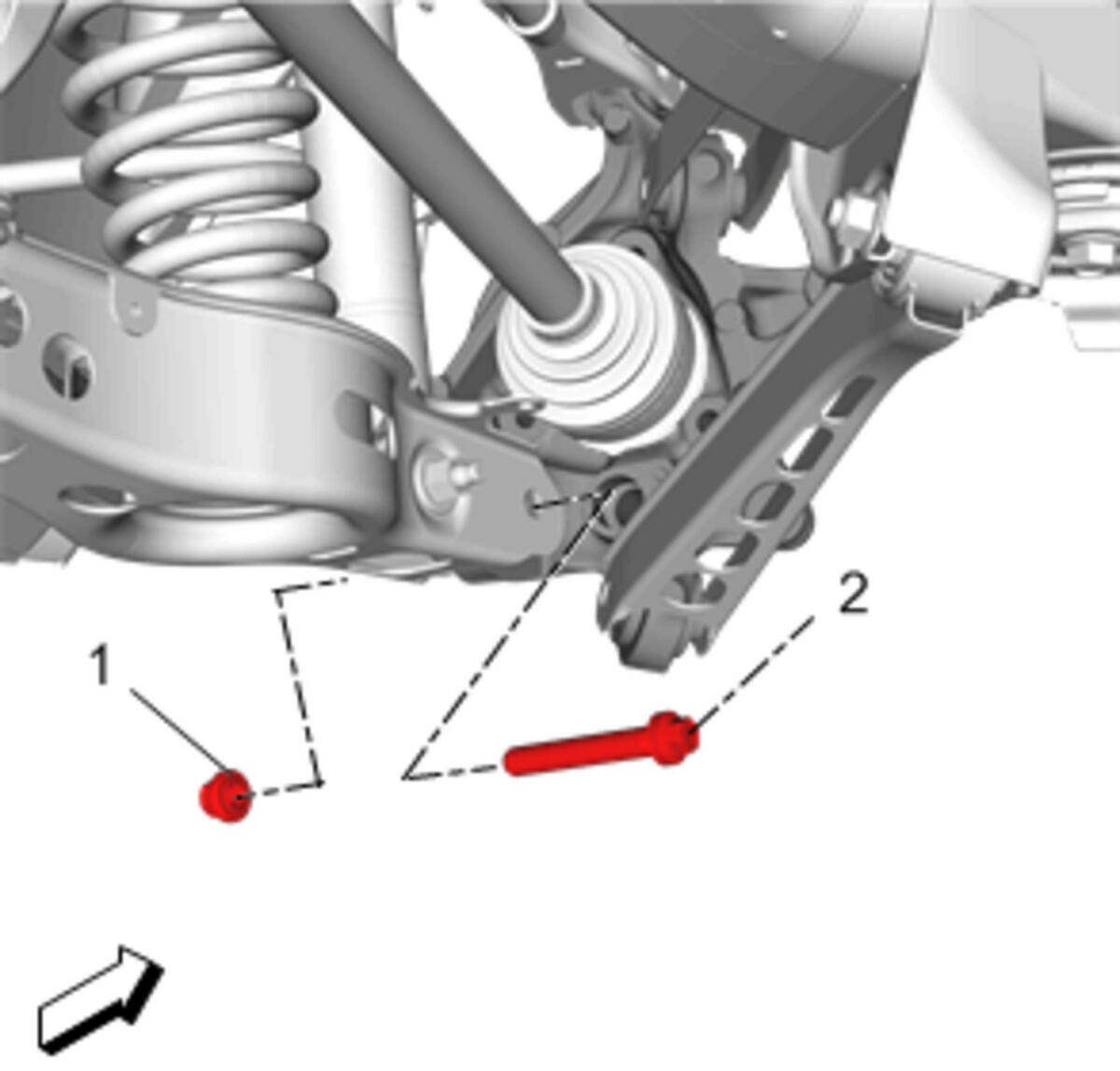

    2. Fig 2: Rear Suspension Lower Control Arm Outer Nut And Bolt
    GM3966969Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    Refer to Torque-to-Yield Fastener Warning .

  2. Install Rear Suspension Lower Control Arm Bolt(2) a NEW bolt.
  3. Install Rear Suspension Lower Control Arm Nut(1) -Lower Control Arm Replacement (with F55) Lower Control Arm Replacement (without F55)

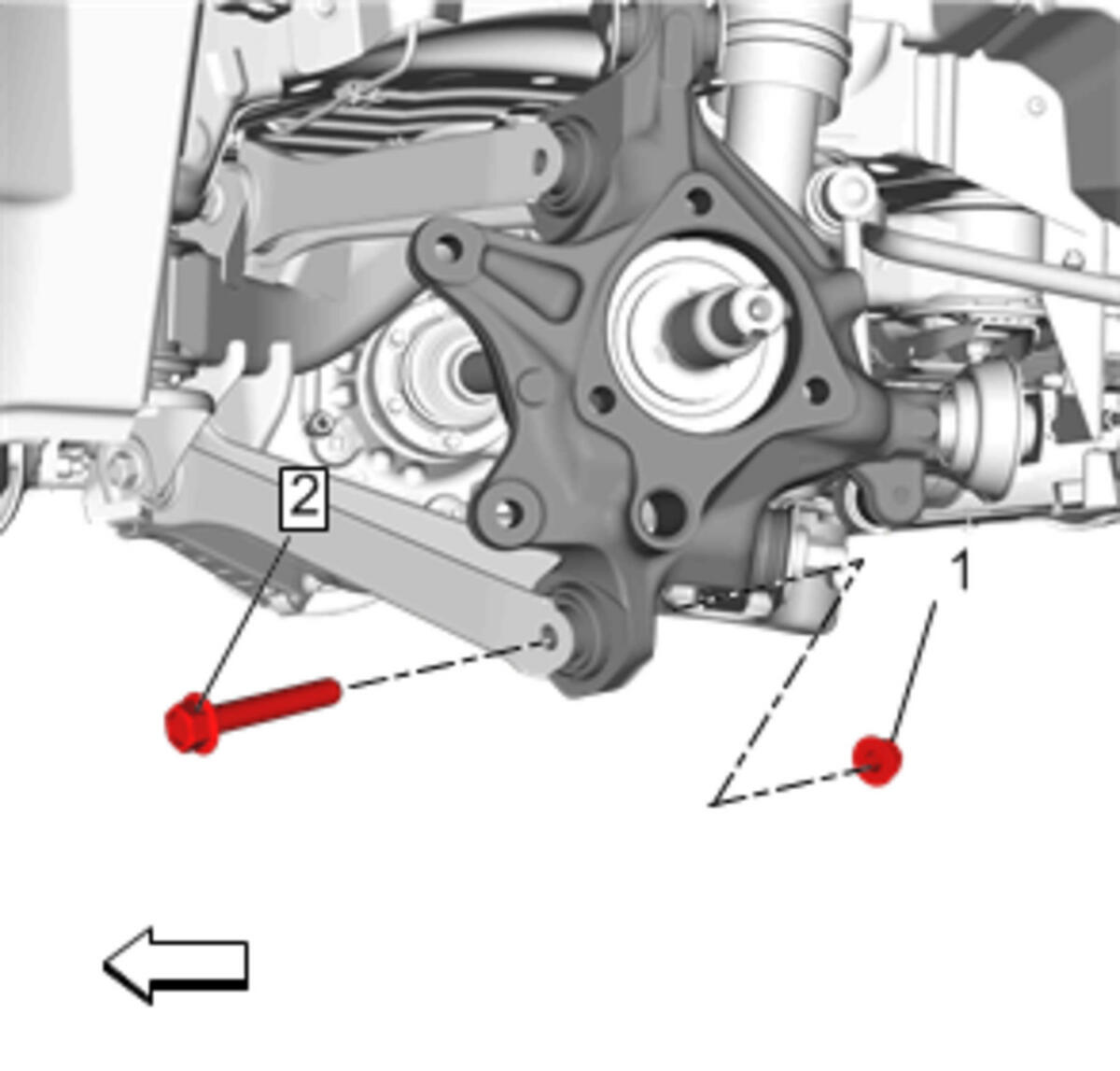

    4. Fig 3: Lower Rear Trailing Arm Outer Nut
    GM3966968Courtesy of GENERAL MOTORS COMPANY
  4. Install the NEW lower rear trailing arm outer bolt (2) and the nut (1). Trailing Arm Replacement (Upper) Trailing Arm Replacement (Lower)

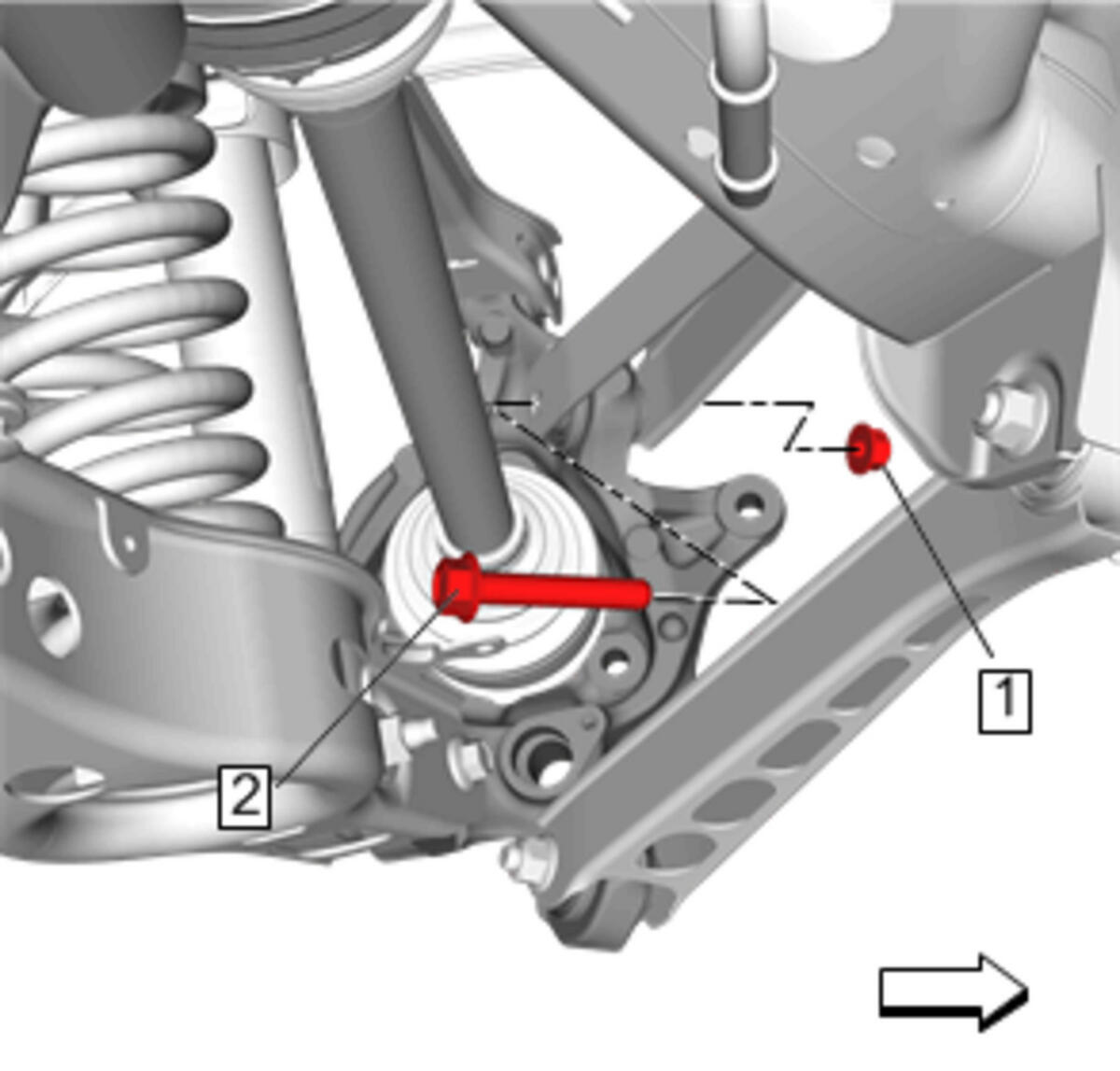

    5. Fig 4: Upper Rear Trailing Arm Nut And Bolt
    GM3966967Courtesy of GENERAL MOTORS COMPANY
  5. Install the NEW upper rear trailing arm outer bolt (2) and the nut (1). Trailing Arm Replacement (Upper) Trailing Arm Replacement (Lower)

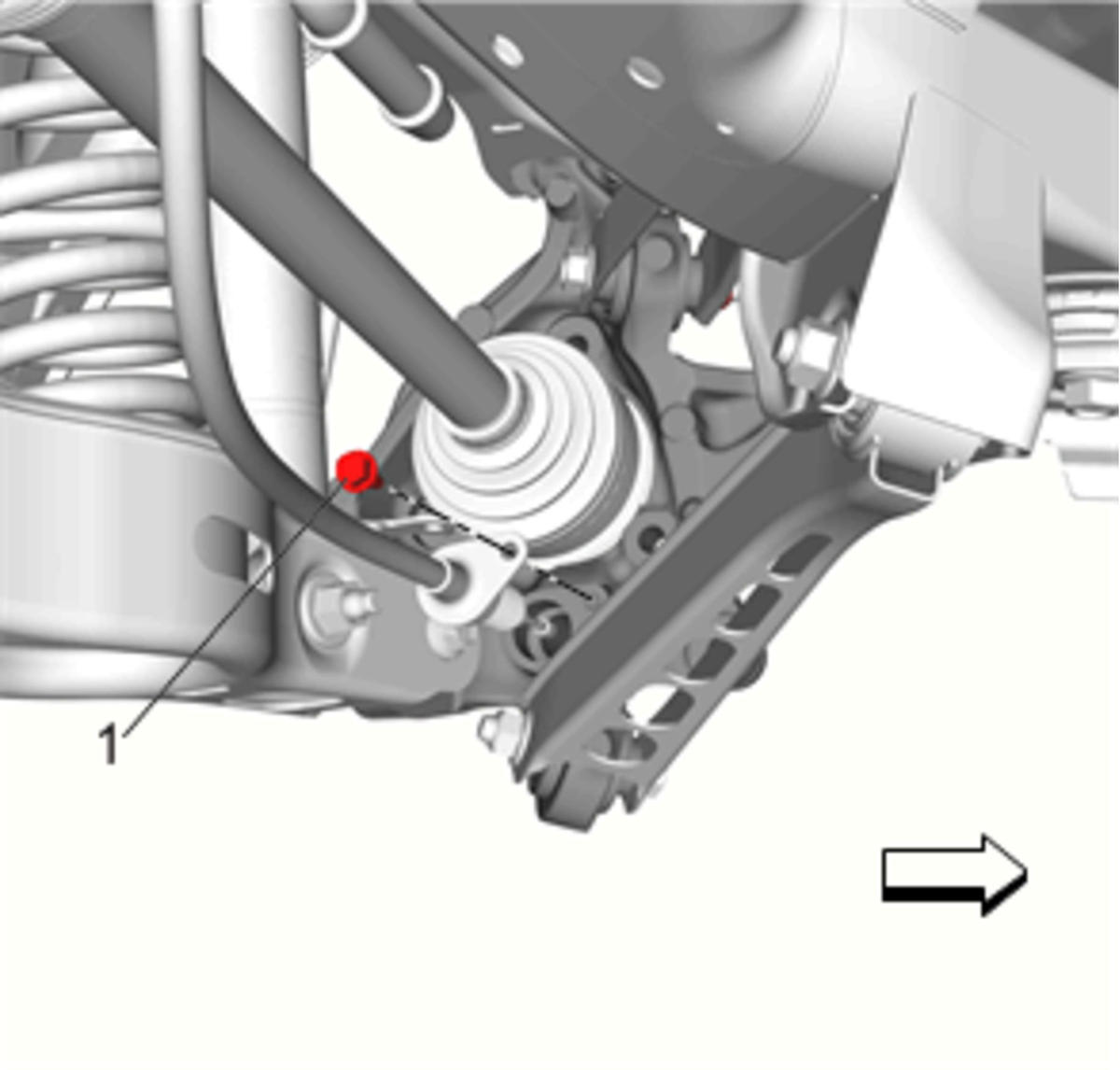

    6. Fig 5: Parking Brake Cable Bolt
    GM3966966Courtesy of GENERAL MOTORS COMPANY
  6. Install the brake cable to the knuckle and install the retaining bolt (1). Parking Brake Rear Cable Replacement

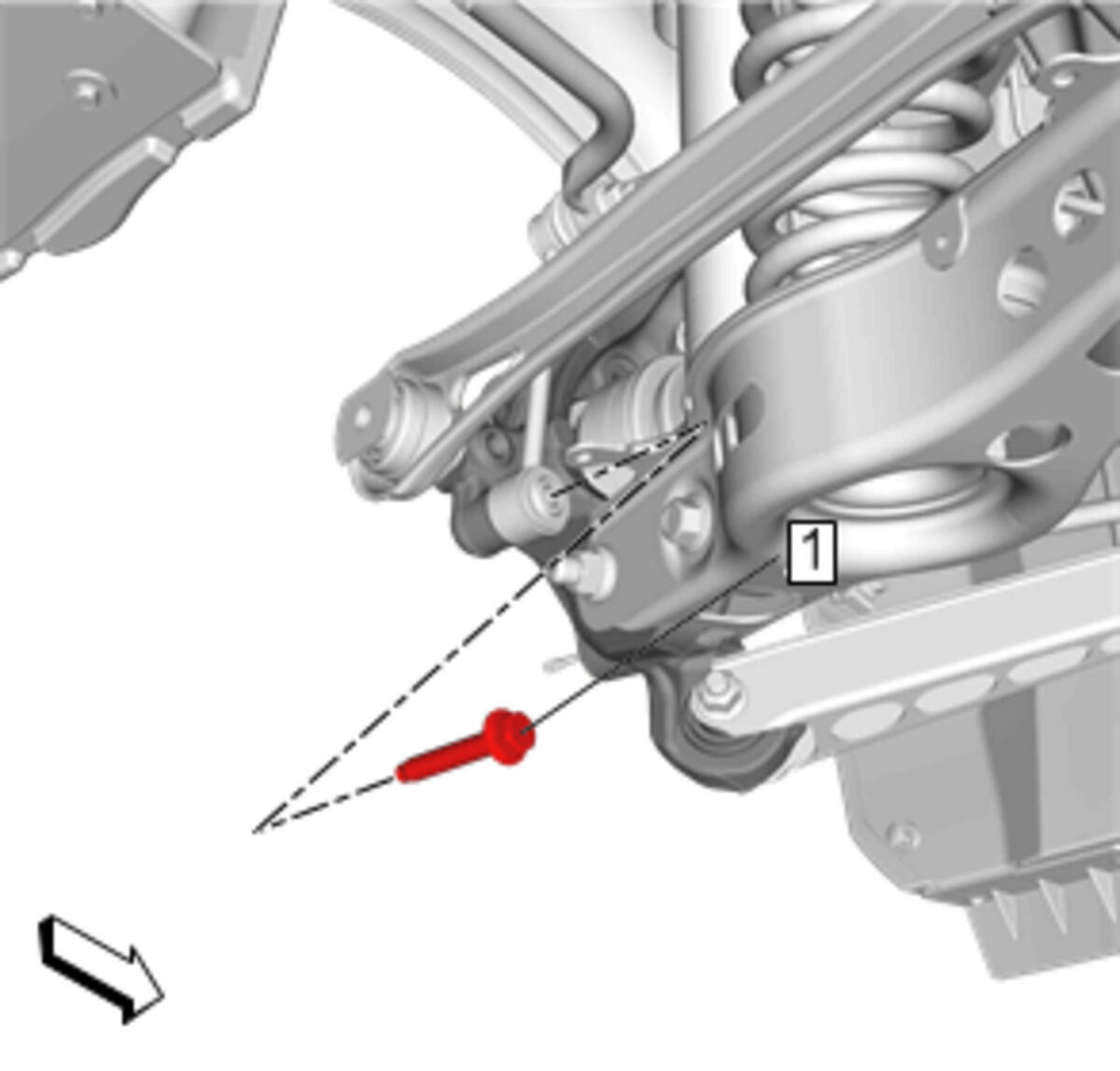

    7. Fig 6: Rear Stabilizer Shaft Link Bolt
    GM3966964Courtesy of GENERAL MOTORS COMPANY
  7. Install Rear Stabilizer Shaft Link Bolt(1) -Stabilizer Shaft Link Replacement

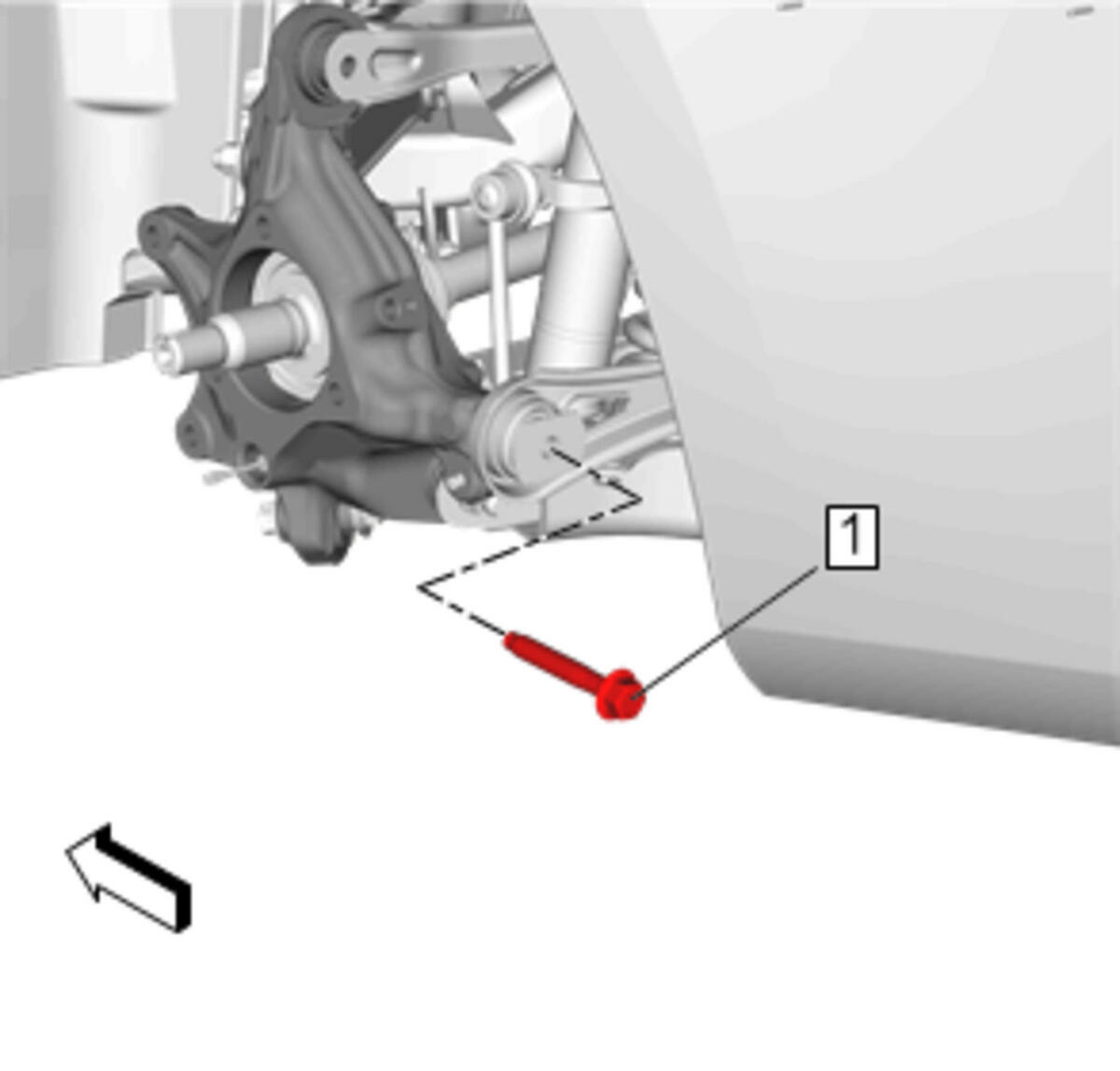

    8. Fig 7: Rear Suspension Adjust Link Outer Bolt
    GM3966962Courtesy of GENERAL MOTORS COMPANY
  8. Install Rear Suspension Adjust Link Outer Bolt(1) -Adjust Link Replacement

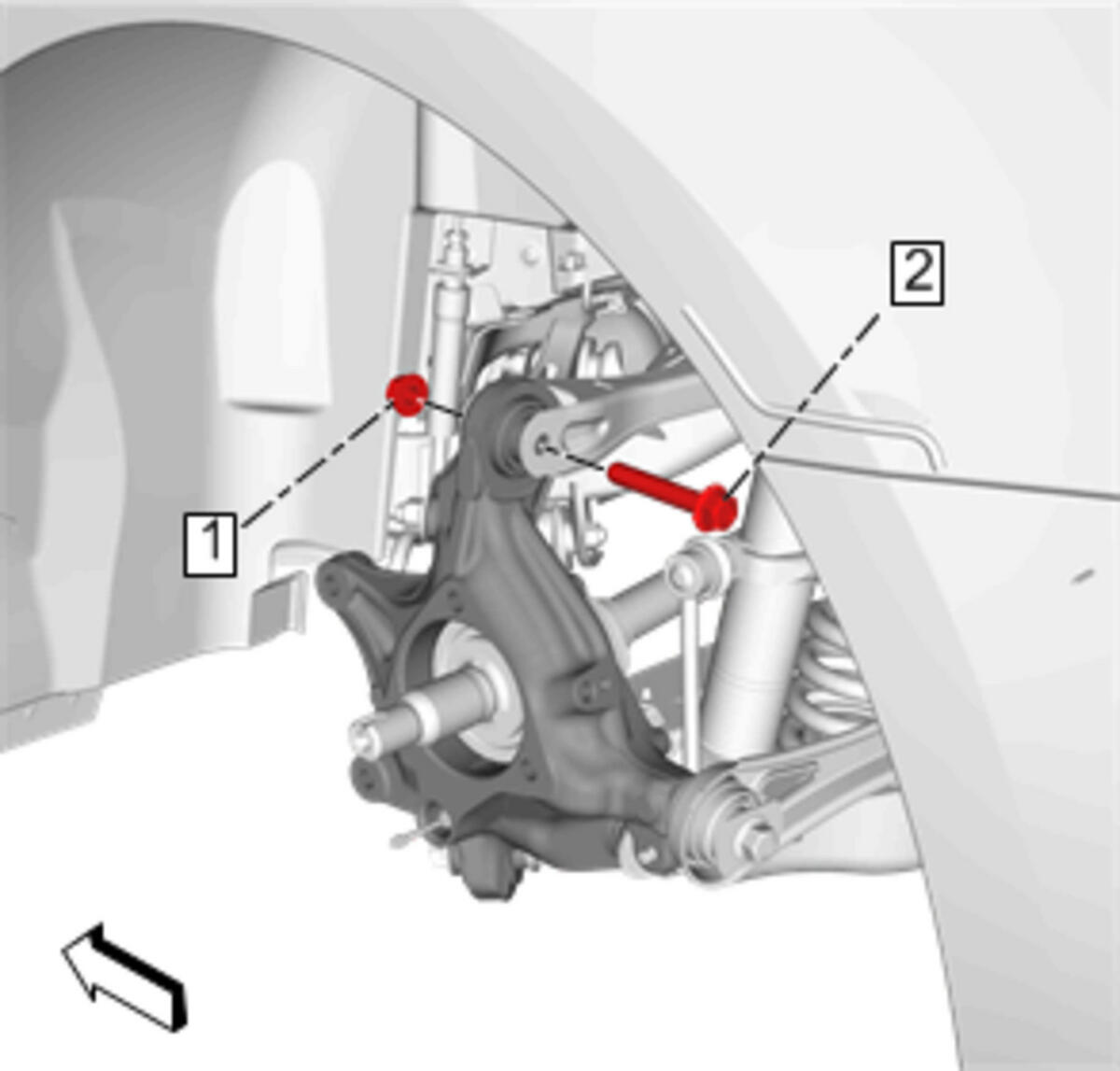

    9. Fig 8: Rear Axle Upper Control Arm Outer Nut And Rear Axle Upper Control Arm Outer Bolt
    GM3966960Courtesy of GENERAL MOTORS COMPANY
  9. Install NEW Rear Suspension Upper Lateral Link Bolt (2)
  10. Install Rear Suspension Upper Lateral Link nut (1)Upper Control Arm Replacement

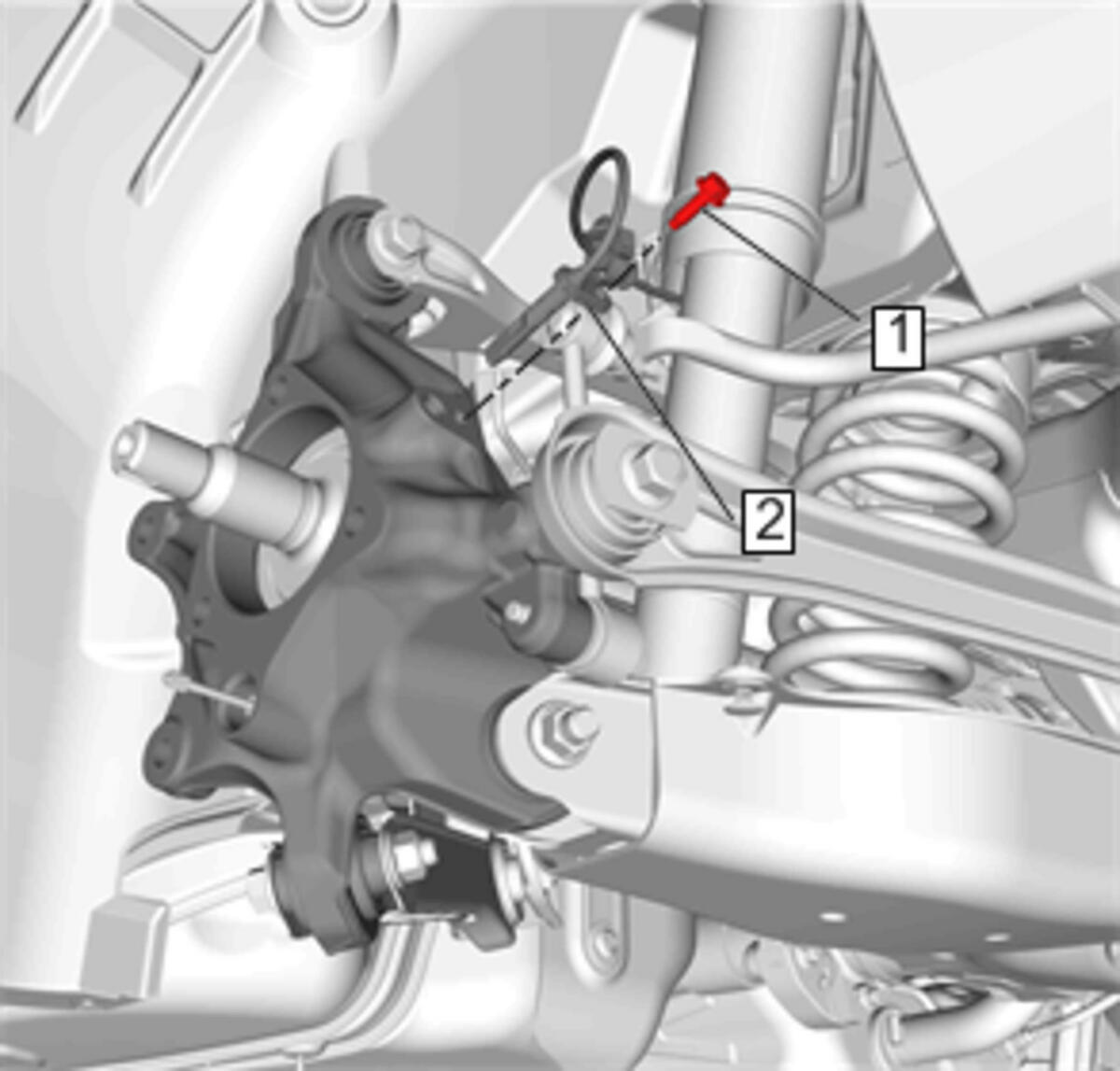

    11. Fig 9: Wheel Speed Sensor Bolt
    GM3966958Courtesy of GENERAL MOTORS COMPANY
  11. Install Rear Wheel Speed Sensor(2)
  12. Install Wheel Speed Sensor Bolt(1)Rear Wheel Speed Sensor Replacement
  13. Install the rear brake backing plate. Rear Brake Backing Plate Replacement
  14. Install the wheel bearing and hub assembly. Rear Wheel Bearing and Hub Replacement
  15. Install the rear brake rotor. Rear Brake Rotor Replacement (JE5, J55)Rear Brake Rotor Replacement (J6G)
  16. Install the rear brake caliper and bracket. Rear Brake Caliper Bracket Replacement

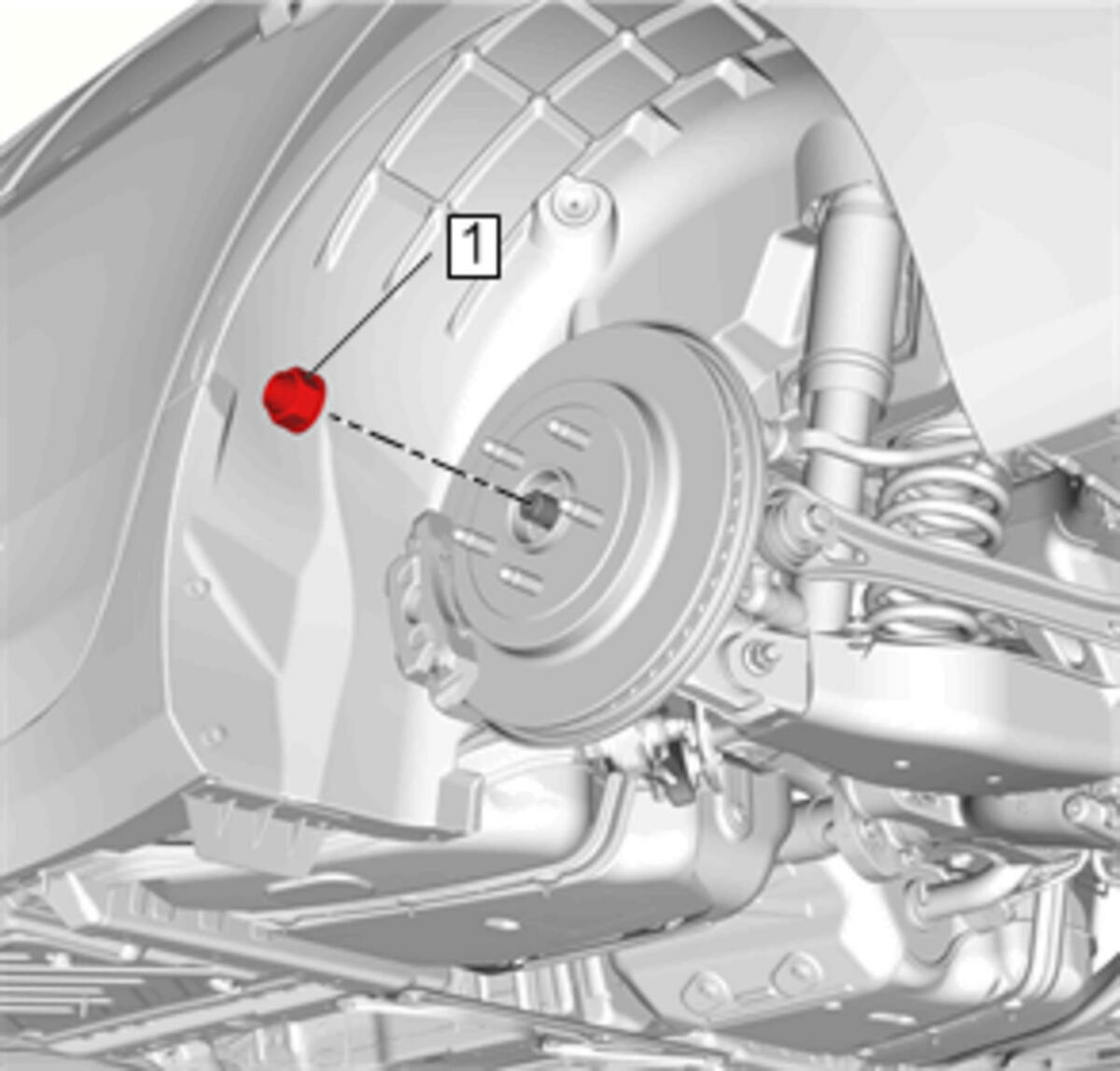

    17. Fig 10: Wheel Drive Shaft Nut
    GM3966957Courtesy of GENERAL MOTORS COMPANY
  17. Install the NEW wheel drive shaft retaining nut (1). Rear Wheel Drive Shaft Replacement - Left Side (LCV, LF4)Rear Wheel Drive Shaft Replacement - Left Side (LTG, LGX) , or Rear Wheel Drive Shaft Replacement - Right Side (LGX, LTG)Rear Wheel Drive Shaft Replacement - Right Side (LF4, LCV)
  18. Install the rear wheel. Tire and Wheel Removal and Installation (Non V-Series)Tire and Wheel Removal and Installation (V-Series)
  19. Adjust the rear wheel alignment. Rear Camber Adjustment , or Rear Toe Adjustment
