Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (V-Series)

Fig 1: Front Wheelhouse Splash Shield

Courtesy of GENERAL MOTORS COMPANY

Remove Front Wheelhouse Splash Shield (1). Refer to Front Wheelhouse Splash Shield Replacement (Rear Wheel Drive)

Fig 2: Front Compartment Lower Noise Shield

Courtesy of GENERAL MOTORS COMPANY

Remove Front Compartment Lower Noise Shield (1). Refer to Front Compartment Lower Noise Shield Replacement (Front Wheel Drive)

Fig 3: Steering Knuckle Nut

Courtesy of GENERAL MOTORS COMPANY

Loosen Steering Knuckle Nut (1)
Do NOT remove the nut.

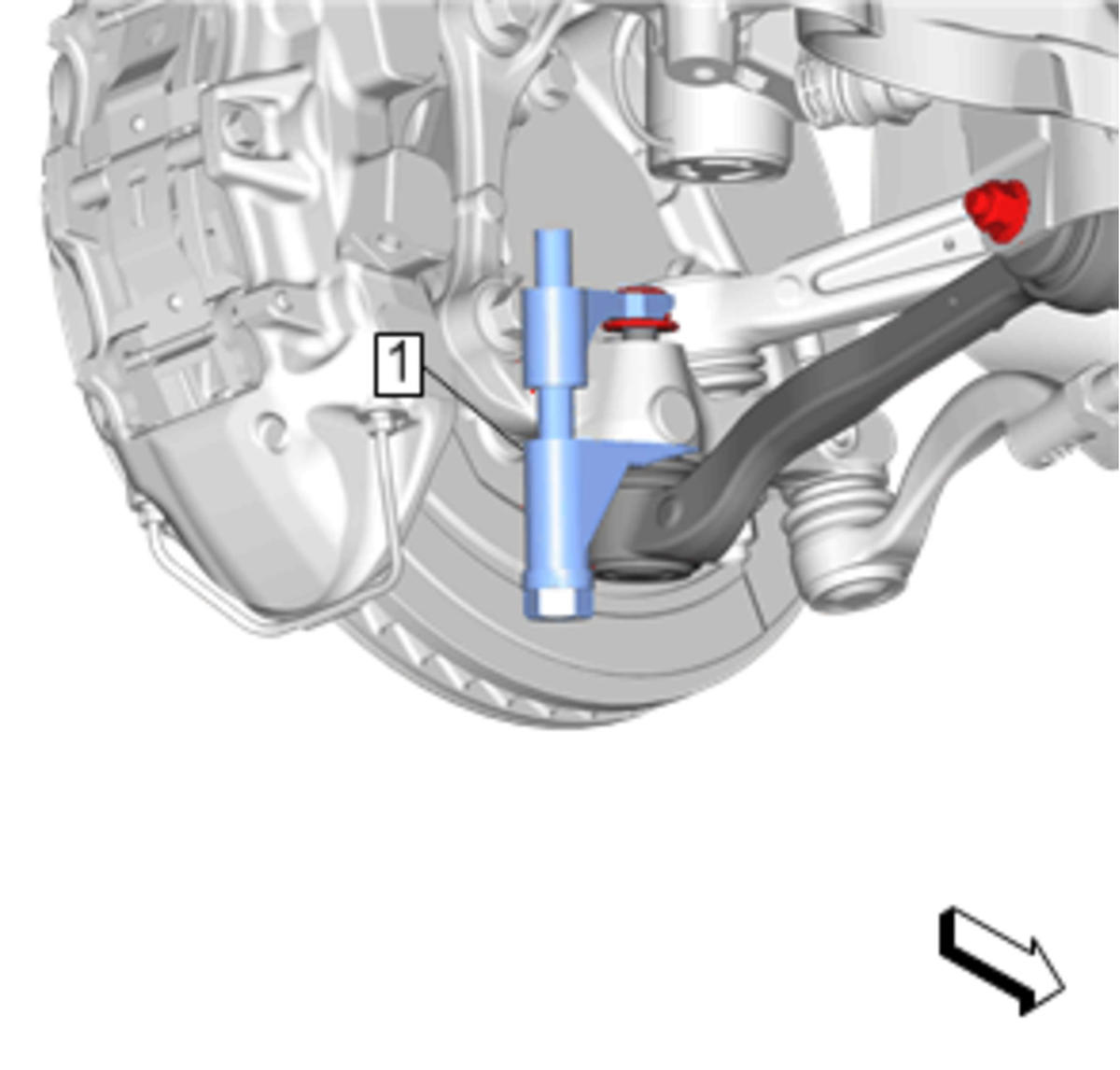

Fig 4: Front Lower Control Front Link And Steering Knuckle

Courtesy of GENERAL MOTORS COMPANY

Use the CH-42188-B separator (1) to separate the front lower control front link from the steering knuckle.

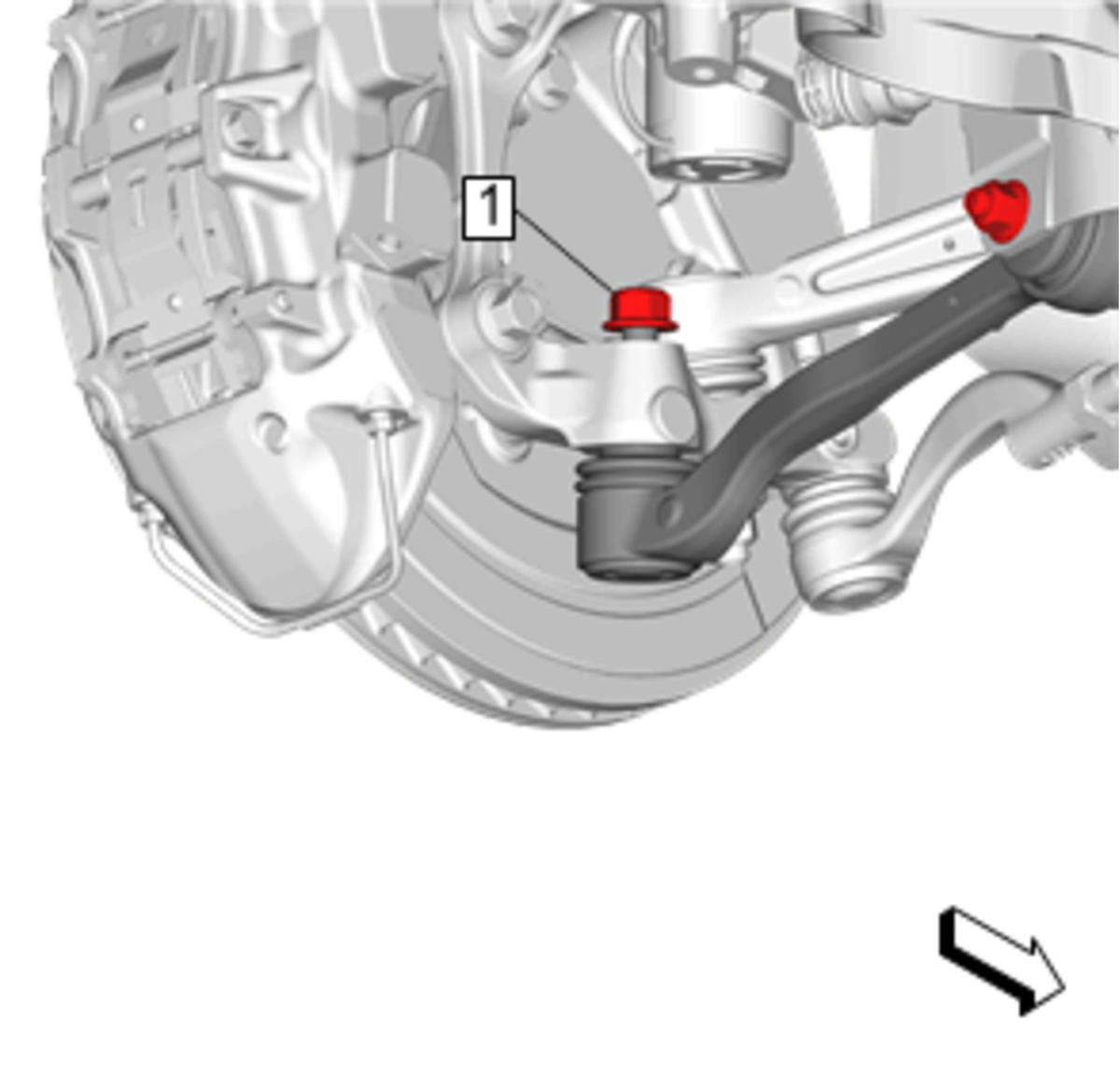

Fig 5: Steering Knuckle Nut

Courtesy of GENERAL MOTORS COMPANY

Remove Steering Knuckle Nut (1)

Fig 6: Front Lower Control Rear Link Nut And Bolt

Courtesy of GENERAL MOTORS COMPANY

Remove Front Lower Control Rear Link Nut (1)

CAUTION:

Use caution when removing components surrounding the Steering Gear Boots. Avoid tool contact with the steering gear boot and clamps. Damage to the steering gear boot may lead to dirt and water contamination in the steering gear rack and components requiring a preventable replacement of the Steering Gear and its Components.

Remove Front Lower Control Rear Link Bolt (2)
DISCARD the bolt.

Fig 7: Front Lower Control Rear Link

Courtesy of GENERAL MOTORS COMPANY

Remove Front Lower Control Rear Link (1)
