Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the following components if fuel tank replacement was necessary:
    1. Fuel tank fuel pump module. Refer to Fuel Tank Fuel Pump Module Replacement .

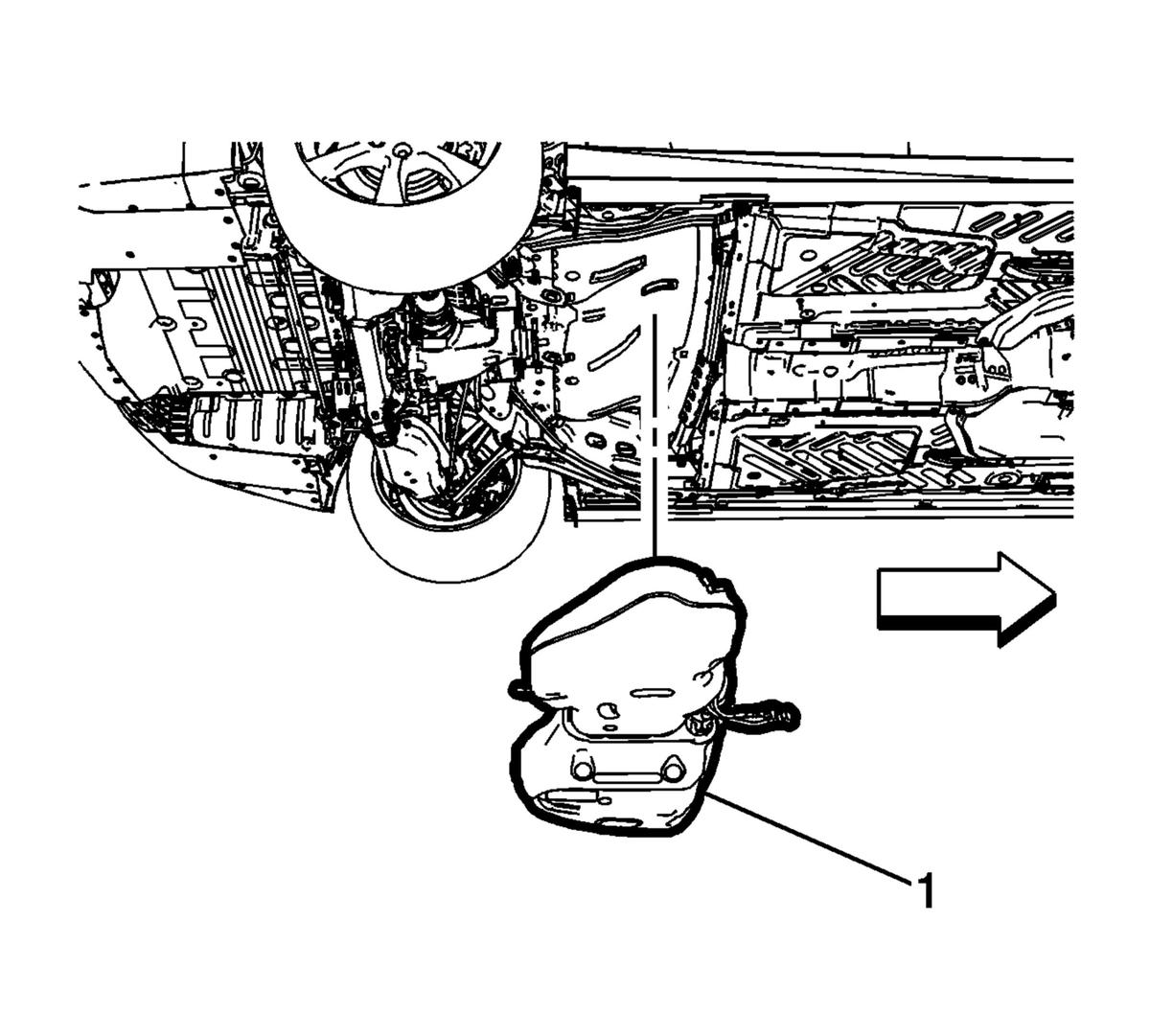

    2. Fig 1: Fuel Tank
    GM2834562Courtesy of GENERAL MOTORS COMPANY
  2. Use a suitable jack and install the fuel tank (1).

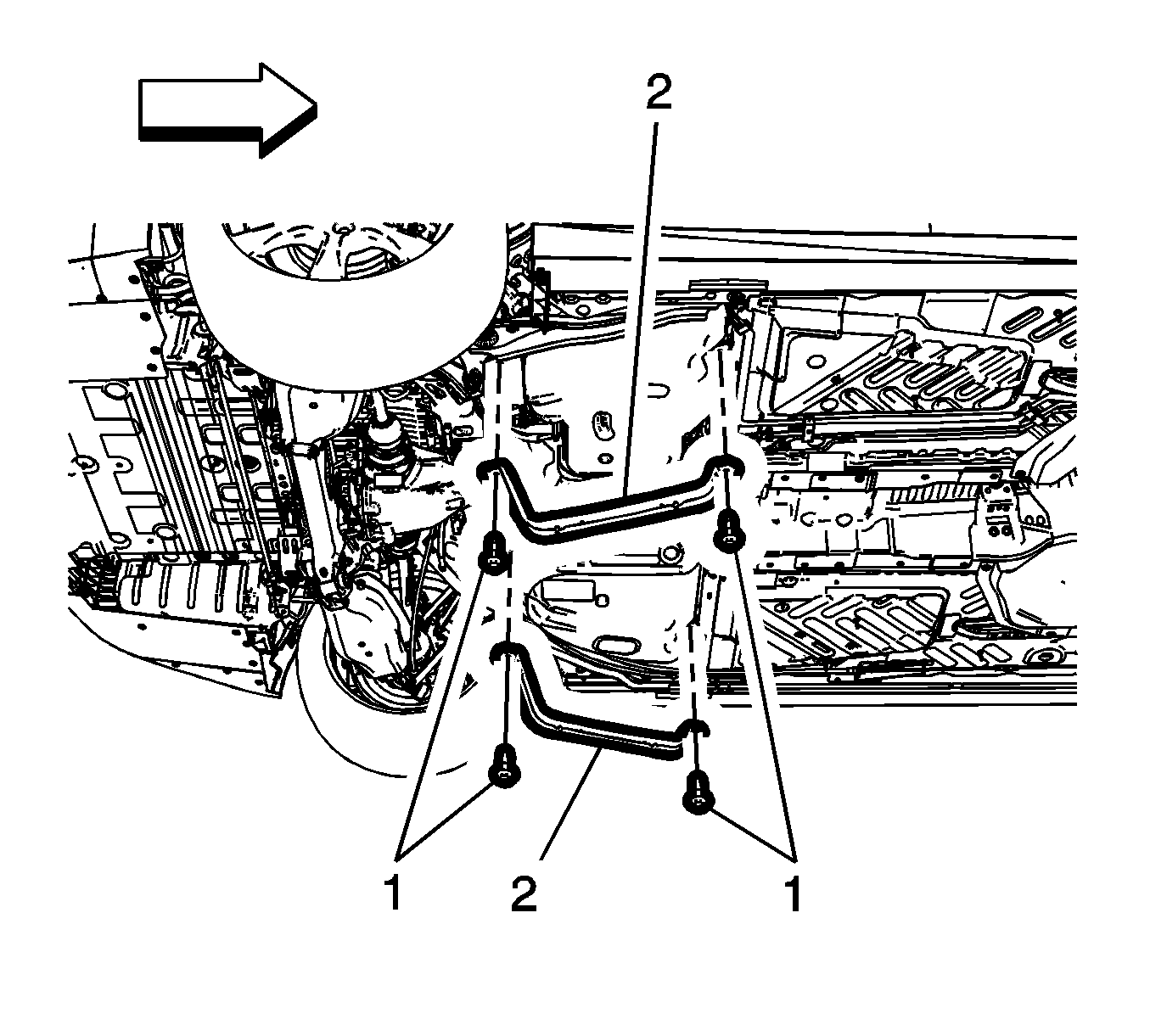

    3. Fig 2: Fuel Tank Strap & Bolts
    GM2834565Courtesy of GENERAL MOTORS COMPANY
  3. Install the fuel tank straps (2).
    4. CAUTION:

    Refer to Fastener Caution .

  4. Install the fuel tank strap bolts (1) and tighten to 20 N.m (15 lb ft).

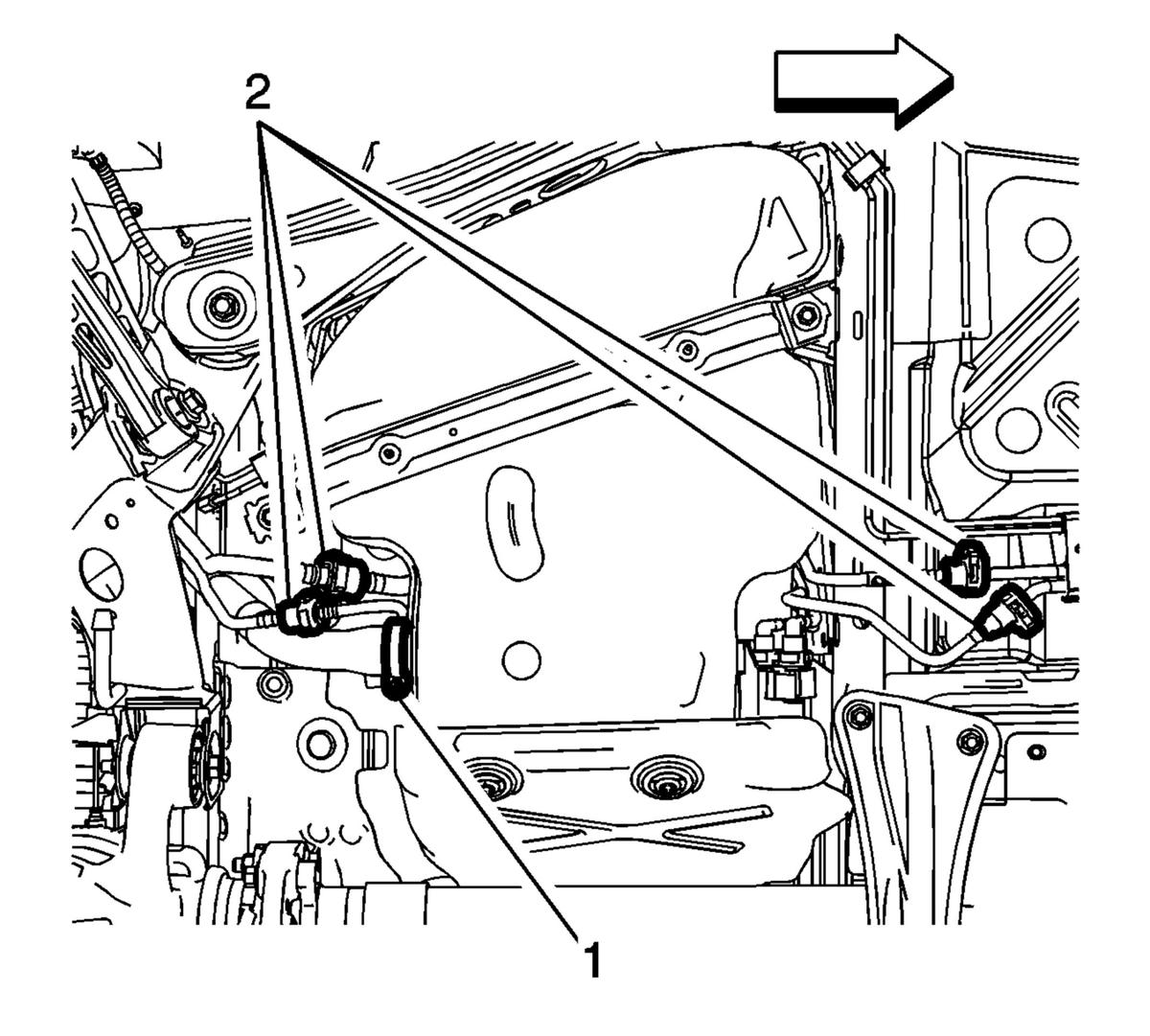

    5. Fig 3: Filler Pipe Hose Clamp, Evaporative Emission & Fuel Pipe Connectors
    GM2834532Courtesy of GENERAL MOTORS COMPANY
  5. Install the filler pipe and tighten the hose clamps (1).
  6. Connect the fuel tank harness connector.
  7. Connect the evaporative emission and fuel pipes (2). Refer to Plastic Collar Quick Connect Fitting Service .
  8. Install the two piece propeller shaft. Refer to Two-Piece Propeller Shaft Replacement (LTG, LGX, LCV) .
  9. Install the left and right side rear air deflectors. Refer to Underbody Rear Air Deflector Replacement - Left Side , and Underbody Rear Air Deflector Replacement - Right Side .
  10. Refill the fuel tank.
  11. Inspect for fuel leaks.
