Underbody Rear Air Deflector Replacement - Left Side

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

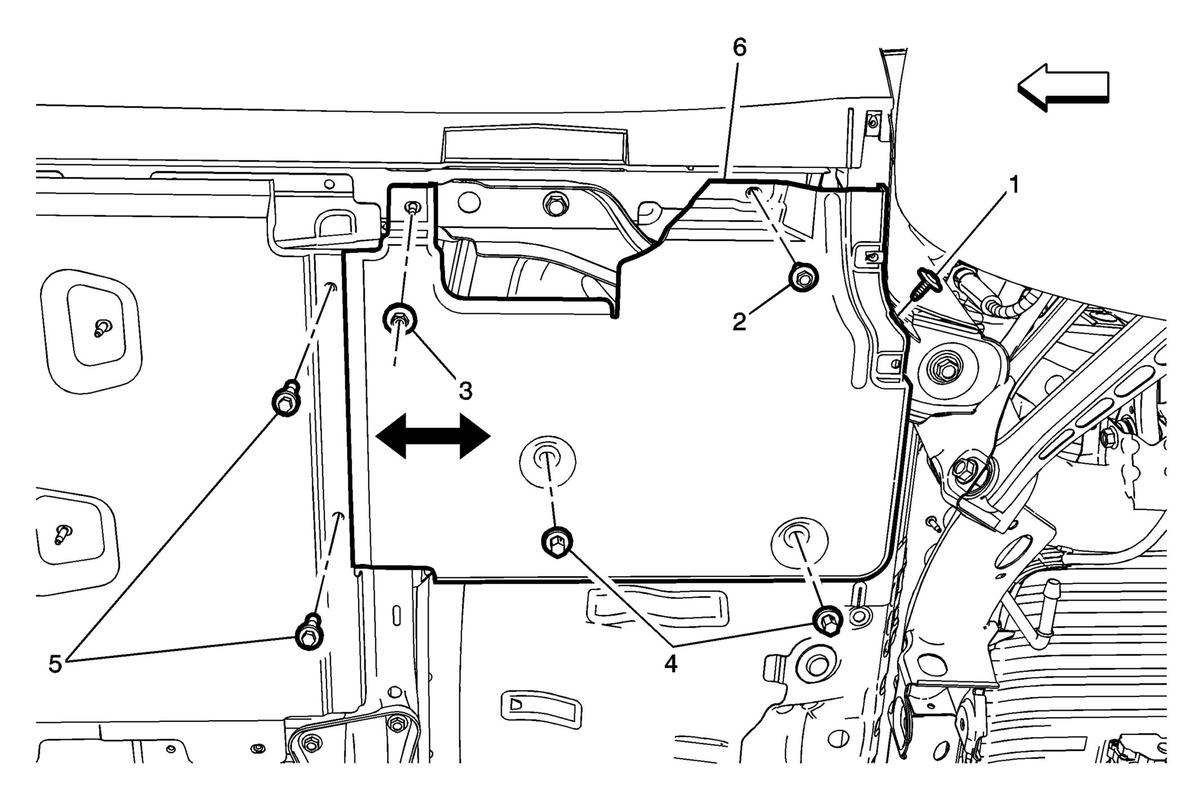

Fig 1: Underbody Rear Air Deflector - Left Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V) . Remove the rear tire front air deflector. Refer to Rear Tire Front Air Deflector Replacement .
1	Underbody Rear Air Deflector Push in Retainer
2	Underbody Rear Air Deflector Bolt CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
3	Underbody Rear Air Deflector Nut Tighten 9 N.m (80 lb in)
4	Underbody Rear Air Deflector Nut (Qty: 2) Tighten 2.5 N.m (22 lb in)
5	Rear Deflector to Front Deflector Bolt (Qty: 2) Tighten 2.5 N.m (22 lb in)
6	Underbody Rear Air Deflector Procedure Slide the rear air deflector out from the front air deflector.
