Air Cleaner Outlet Duct Replacement (LCV)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

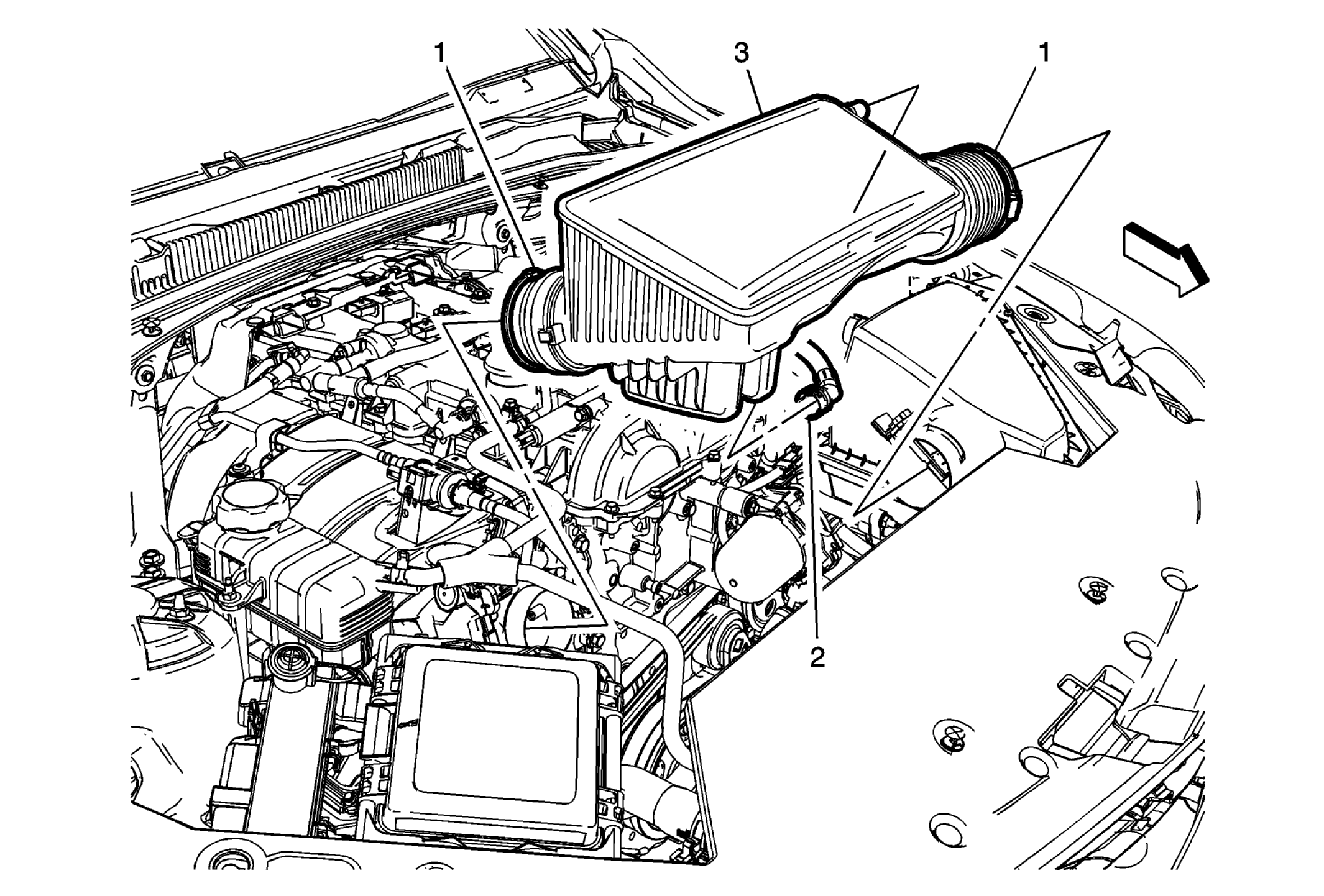

| Callout | Component Name |
|---|---|
| 1 | Air Cleaner Outlet Duct Clamps (Qty: 2)
CAUTION:
Refer to Fastener Caution .
NOTE:
Ensure the outlet duct is fully seated to the mating surfaces before clamping. Verify that the cuff is not rolled under. |
| 2 | PCV Tube |
| 3 | Air Cleaner Outlet Duct |
