Rear Bumper Upper Fascia Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

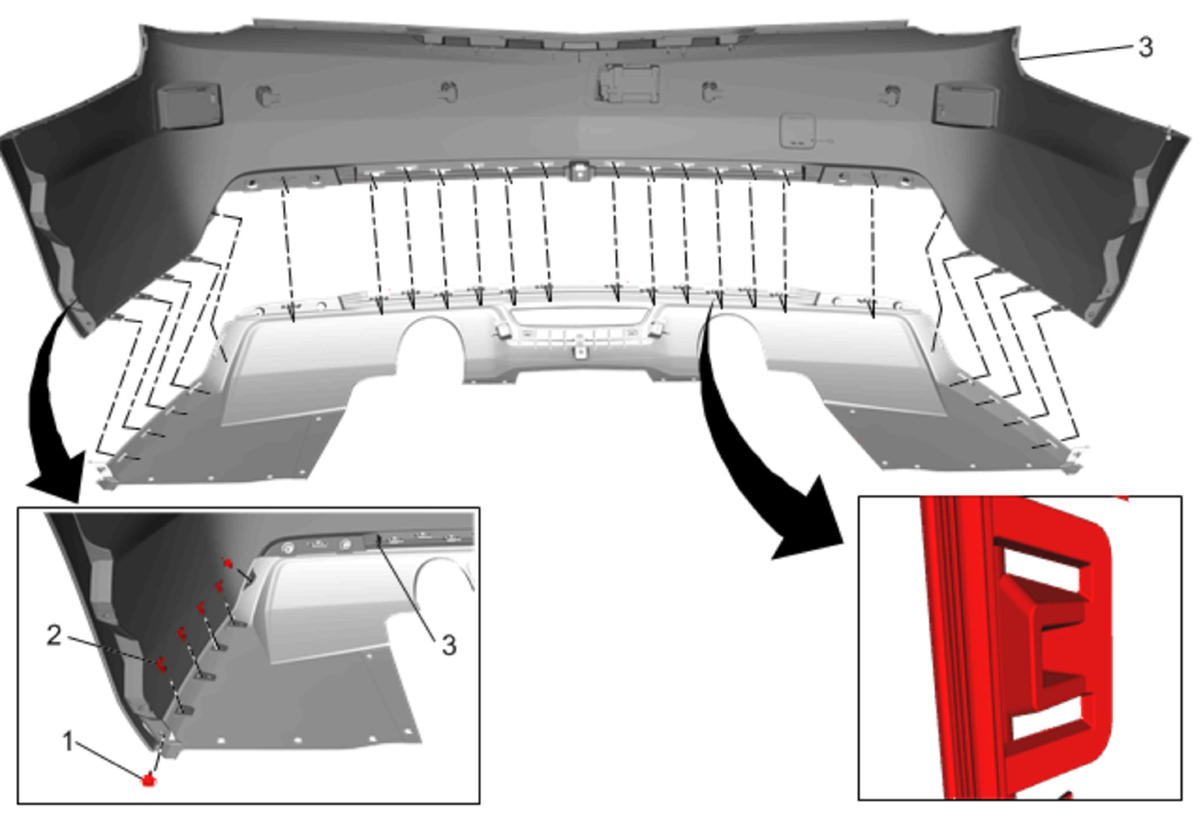

Fig 1: Rear Bumper Upper Fascia Replacement
GM4489027Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear Bumper Energy Absorber Replacement Rear Bumper Energy Absorber Replacement (Coupe)
1 Rear Bumper Upper Fascia Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Rear Bumper Fascia Clip (Qty: 10)
3 Rear Bumper Upper Fascia

Procedure

  1. Using a trim type tool release the retainer tabs.
  2. Transfer components as necessary.
