Rear Bumper Impact Bar Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

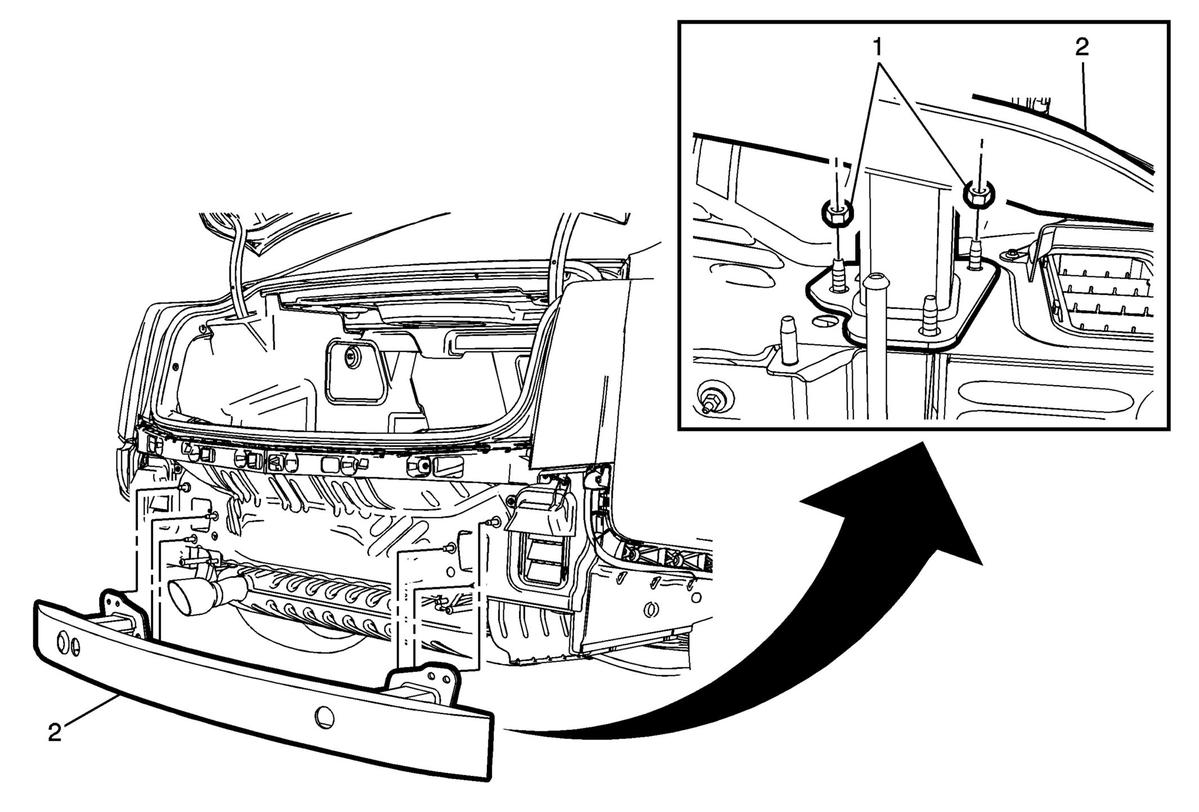

Fig 1: Rear Bumper Impact Bar

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement . Remove the exhaust rear muffler rear hanger. Refer to Exhaust Rear Muffler Rear Hanger Replacement (Steel Design)Exhaust Rear Muffler Rear Hanger Replacement (Aluminum Design) .
1	Rear Bumper Impact Bar Nut (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten 40 N.m (30 lb ft)
2	Rear Bumper Impact Bar

Callout

Component Name

Preliminary Procedures

Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .
Remove the exhaust rear muffler rear hanger. Refer to Exhaust Rear Muffler Rear Hanger Replacement (Steel Design)Exhaust Rear Muffler Rear Hanger Replacement (Aluminum Design) .

Rear Bumper Impact Bar Nut (Qty: 6)

CAUTION:

Refer to Fastener Caution .

Tighten
40 N.m (30 lb ft)

Rear Bumper Impact Bar
