Exhaust Rear Muffler Rear Hanger Replacement (Steel Design)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

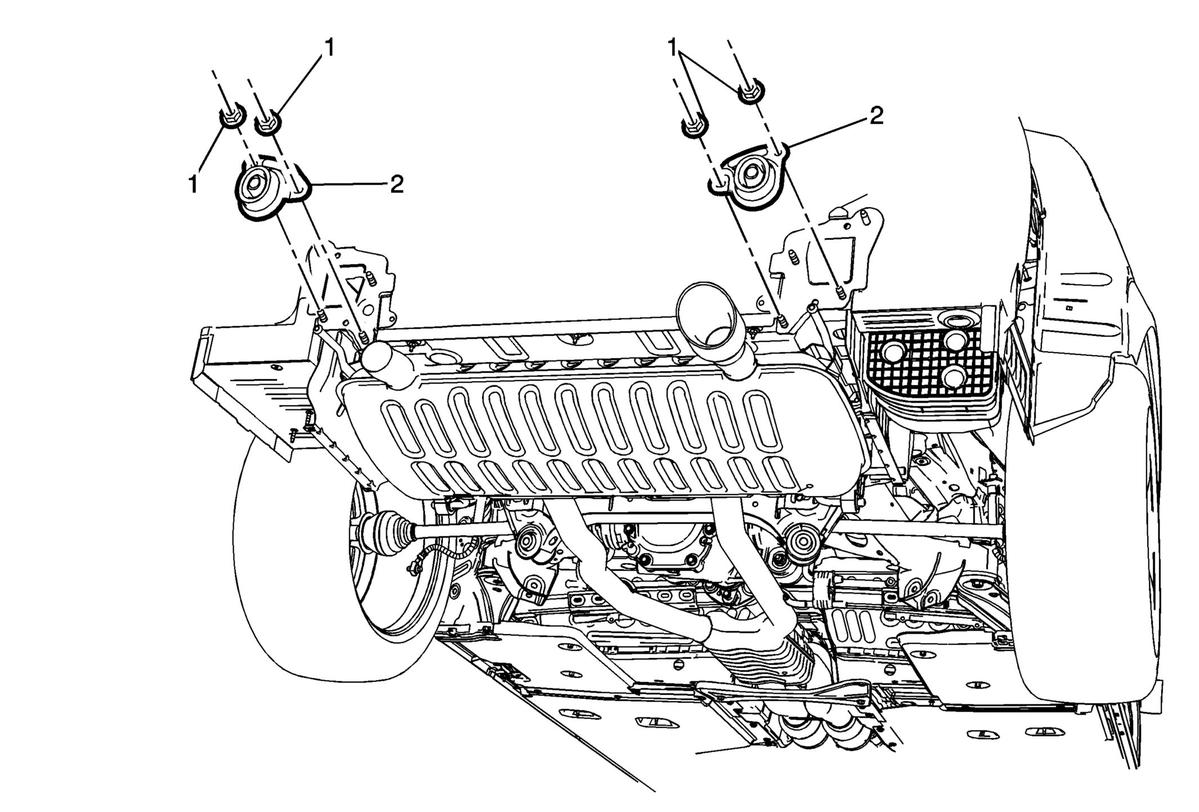

Fig 1: Exhaust Rear Muffler Rear Hanger (Steel Design)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Exhaust Service Warning . Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V) . Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .
1	Exhaust Rear Muffler Hanger Bracket Fasteners (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 40 N.m (30 lb ft)
2	Exhaust Rear Muffler Hanger Brackets (Qty: 2)

Callout

Component Name

WARNING:

Refer to Exhaust Service Warning .

Preliminary Procedure

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V) .
Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .

Exhaust Rear Muffler Hanger Bracket Fasteners (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Tighten:
40 N.m (30 lb ft)

Exhaust Rear Muffler Hanger Brackets (Qty: 2)
