Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

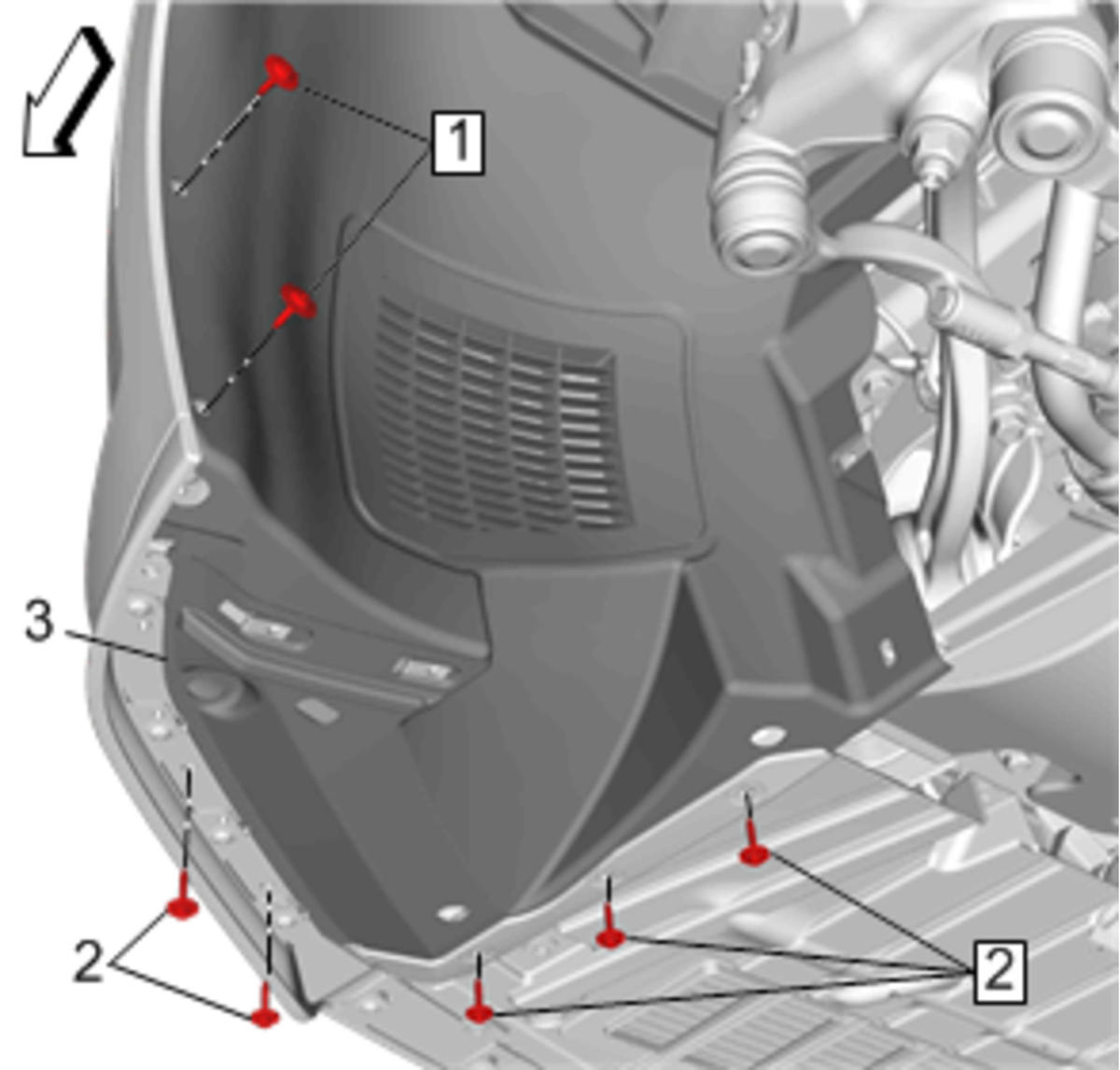

    Fig 1: Front Wheelhouse Liner And Bolt
    GM4024878Courtesy of GENERAL MOTORS COMPANY
  1. Install Front Wheelhouse Liner (3)
    2. CAUTION:

    Refer to Fastener Caution .

  2. Front Wheelhouse Liner Bolt (2) Tighten 2.5 N.m (22 lb in)
  3. Front Wheelhouse Liner Screw (1) Tighten 2.5 N.m (22 lb in)

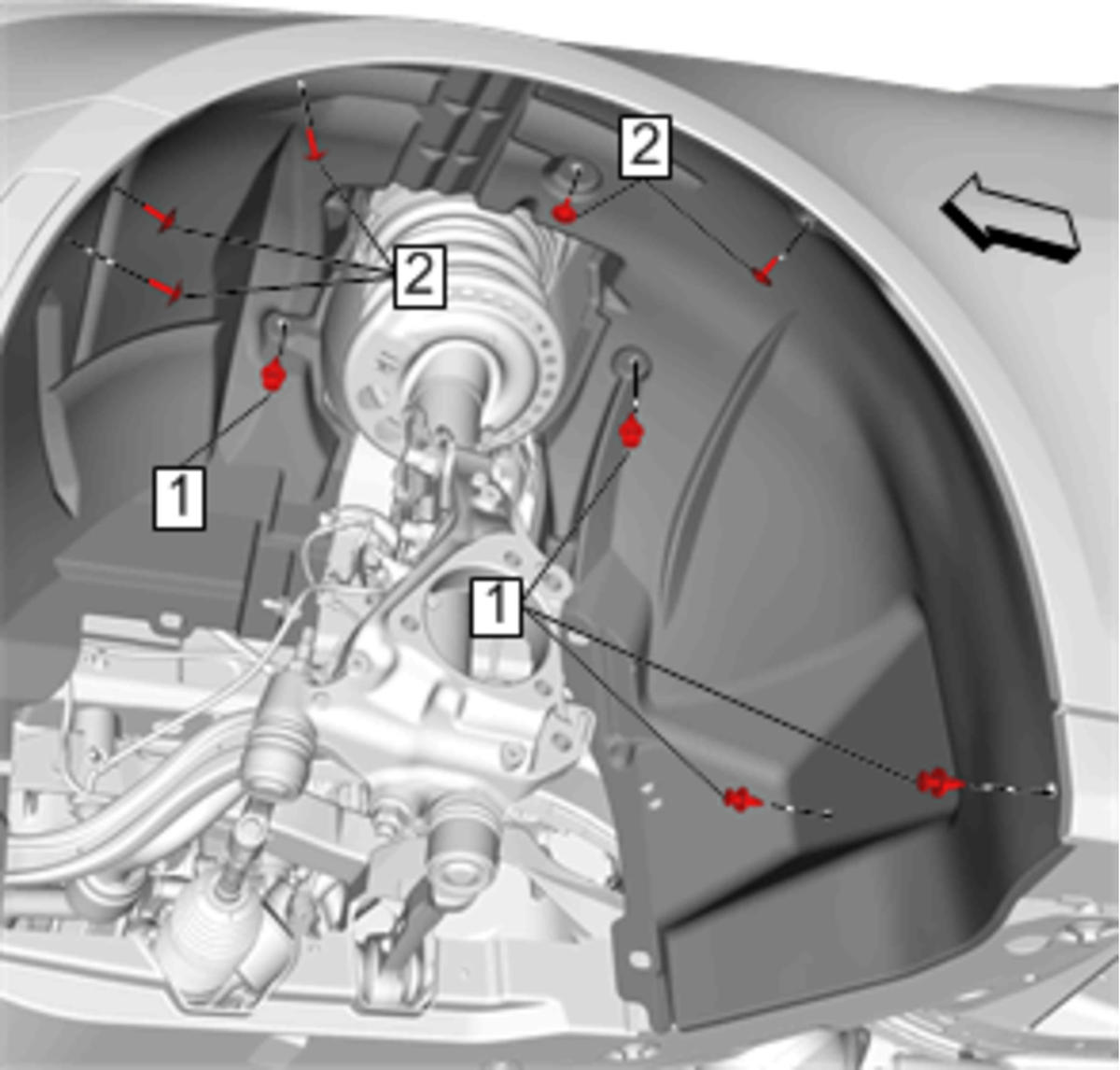

    4. Fig 2: Front Wheelhouse Liner Screw
    GM4024880Courtesy of GENERAL MOTORS COMPANY
  4. Install Front Wheelhouse Liner Retainer (1)
  5. Front Wheelhouse Liner Screw (2) Tighten 2.5 N.m (2 lb ft).
  6. Install Front Wheelhouse Panel Splash Shield. Refer to Front Wheelhouse Splash Shield Replacement (Rear Wheel Drive) Front Wheelhouse Splash Shield Replacement (All Wheel Drive)
  7. Install Front Tire Front Air Deflector. Refer to Front Tire Front Air Deflector Replacement
  8. Install the front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (V-Series)
  9. Lower the vehicle.
