Installation Procedure
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

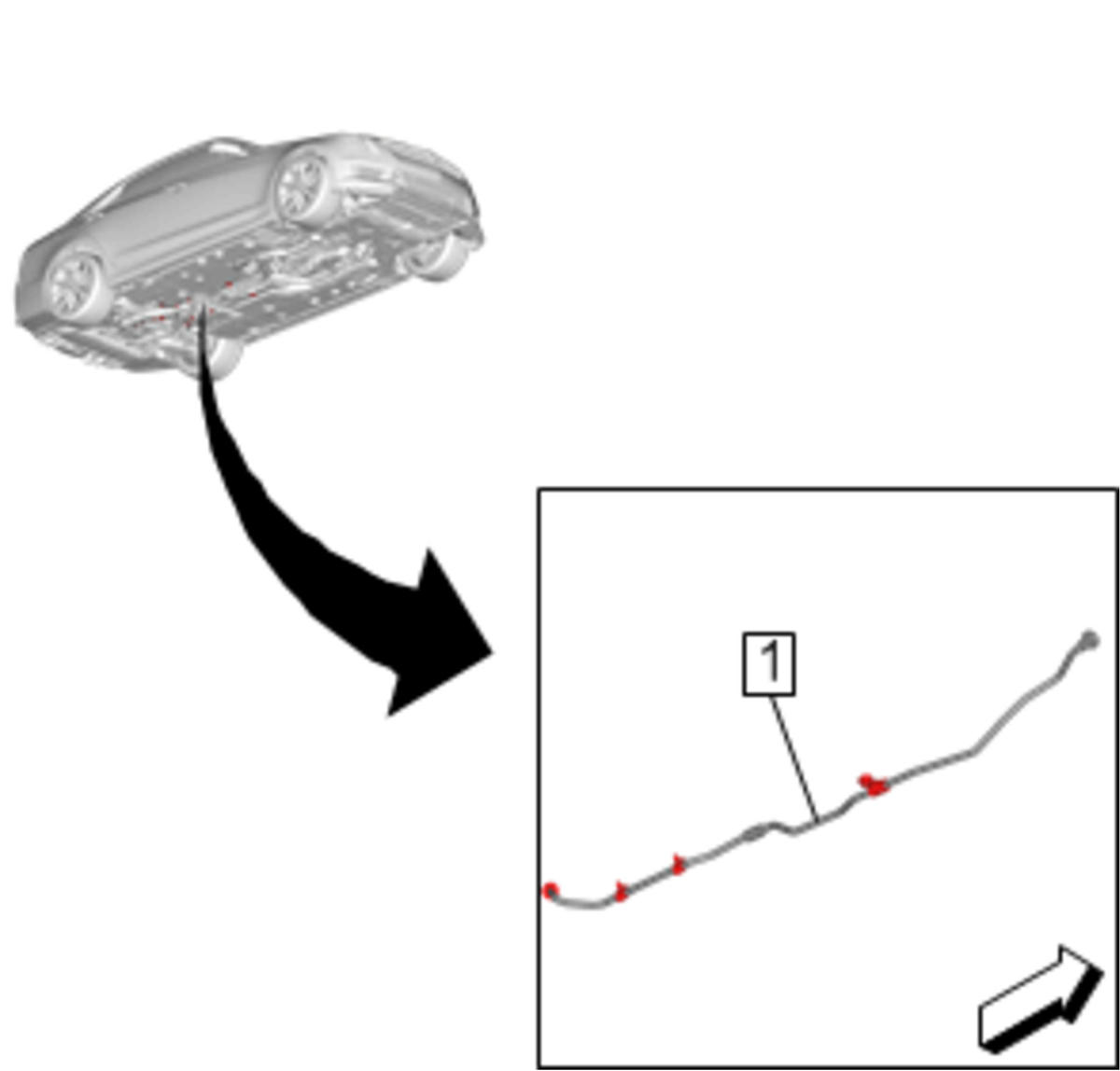

- Install Transmission Fluid Cooler Pipe(Mid Line Right) (1)

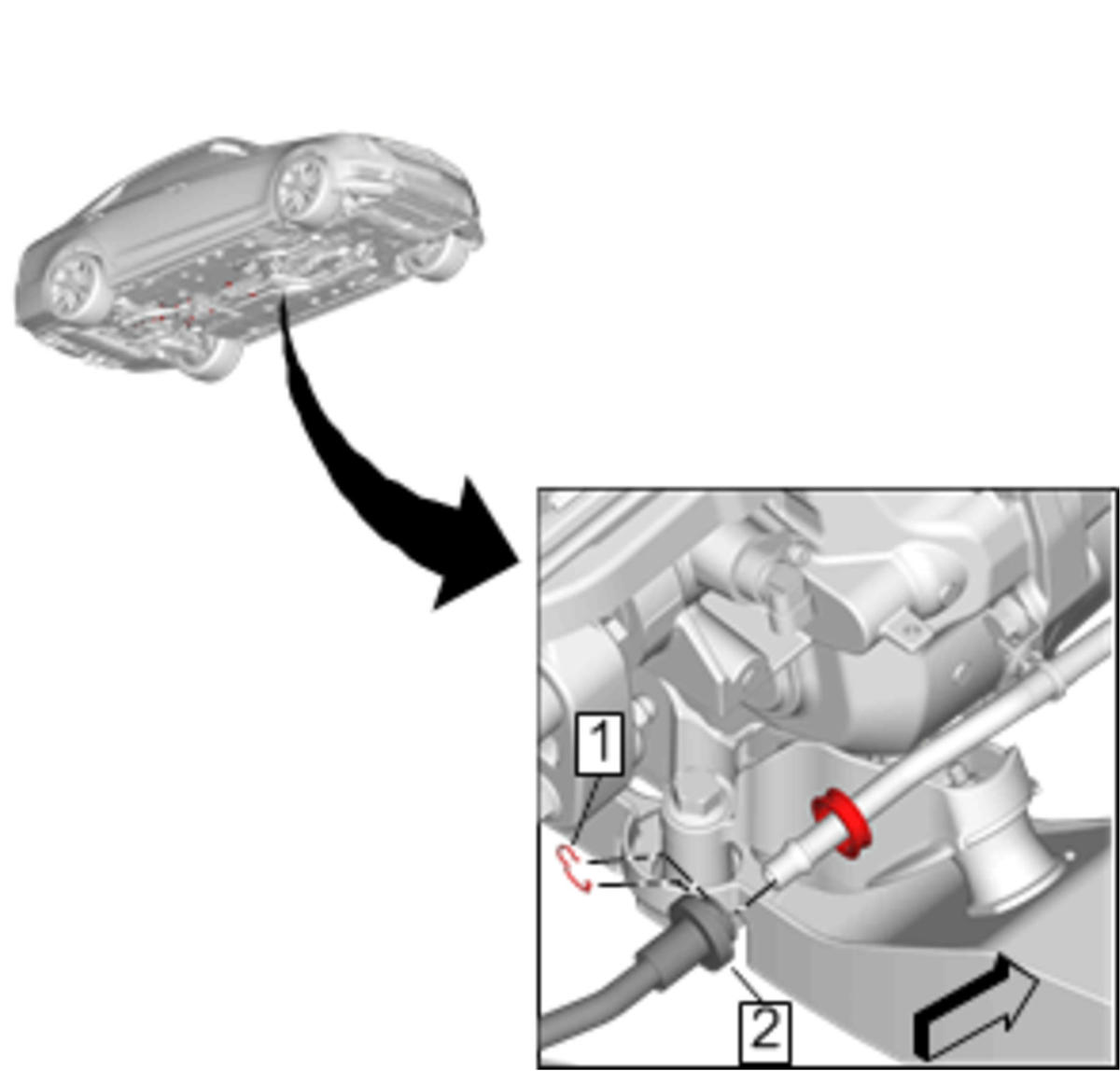

- Install Transmission Fluid Cooler Pipe Fitting Retainer (1) @Transmission Fluid Cooler Pipe(Rear Differential Outlet Hose) Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection
- Install Transmission Fluid Cooler Pipe(Mid Line Right) (2) @Transmission Fluid Cooler Pipe(Rear Differential Outlet Hose)

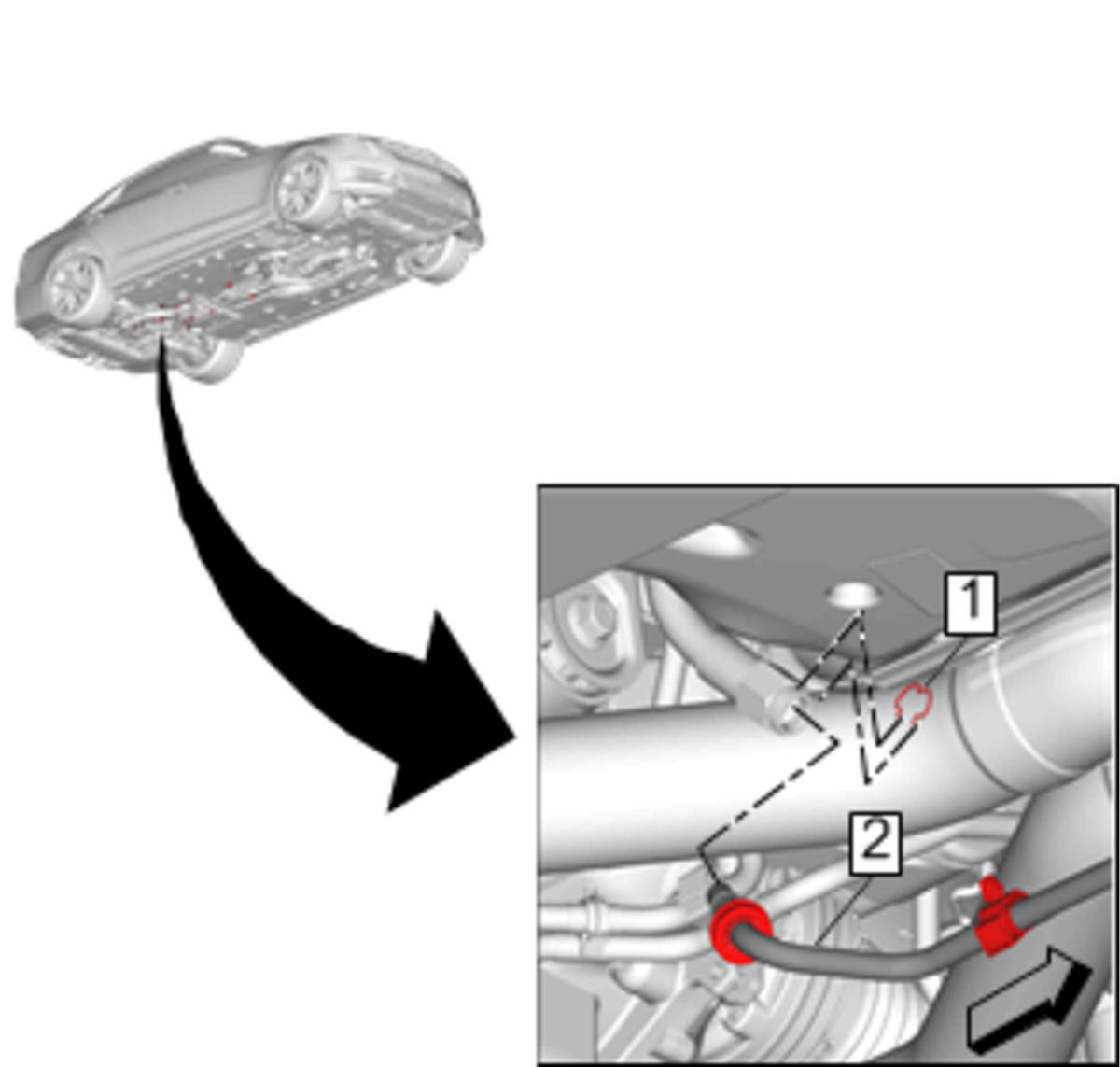

- Install Transmission Fluid Cooler Pipe Fitting Retainer (1) @Transmission Fluid Cooler Pipe(Mid Line Right) Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection
- Install Transmission Fluid Cooler Pipe(Mid Line Right) (2) @Transmission Fluid Cooler Inlet and Outlet Pipe

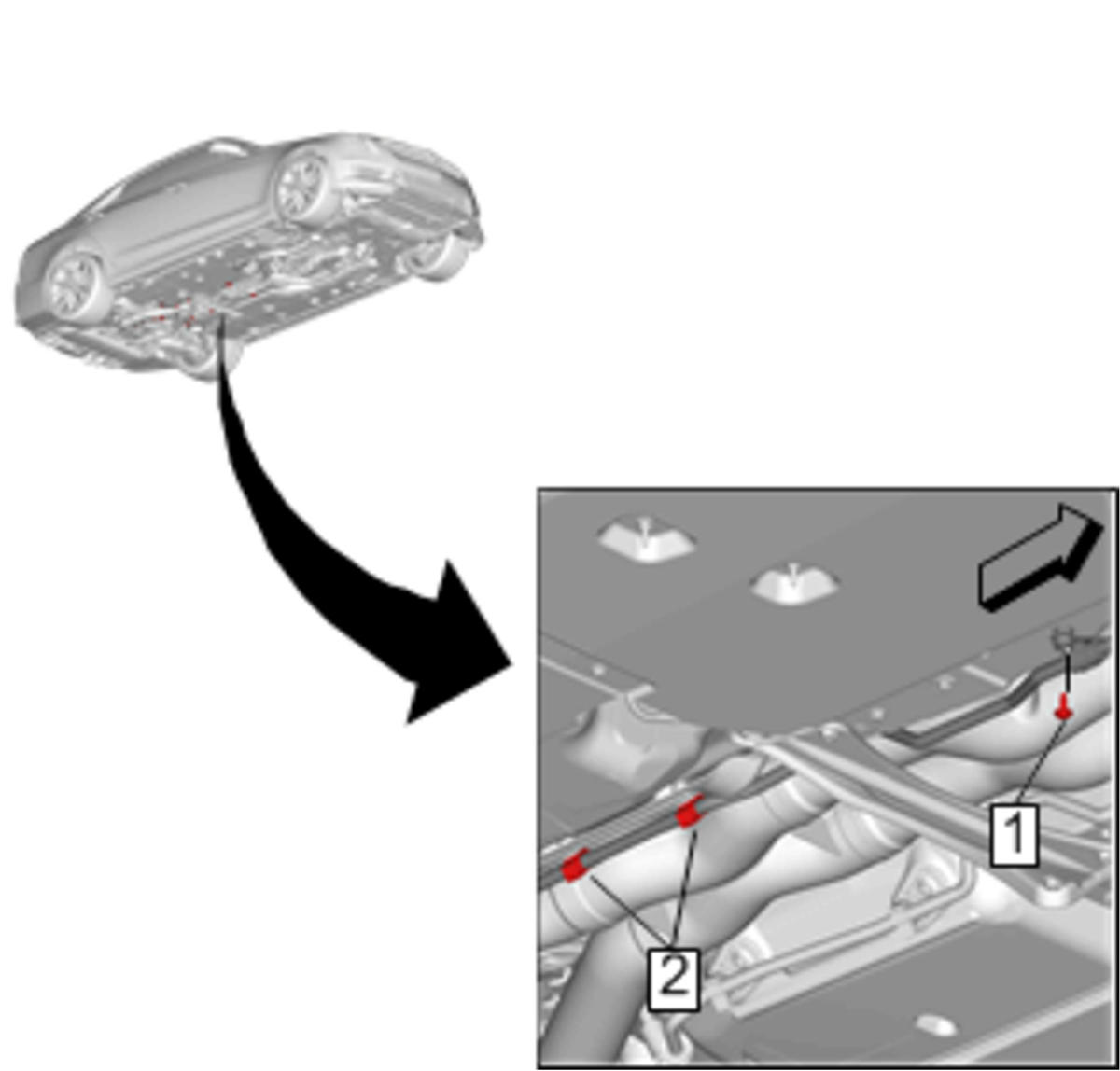

- Install the right side underbody front air deflector bolt (1) and tighten to 9 N.m (80 lb in).
- Install the transmission fluid cooler pipe clips (2) into the right side underbody front air deflector.
- Fill the transmission to the proper level with NEW transmission fluid. Transmission Fluid Level Inspection (MG9)
- Inspect for transmission fluid leaks.
CAUTION:
Refer to Fastener Caution .
