Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Engine Oil Pan Sealing Surface
    GM2726783Courtesy of GENERAL MOTORS COMPANY
    NOTE:
    • The lower crankcase surface must be free of contamination prior to applying the sealer.
    • Install and align the oil pan to block within 20 minutes of applying the sealer.
    • The oil pan must be fastened to final torque specification within 60 minutes of applying the sealer.
  1. Apply a 4.25 mm bead of sealer (1) on the level part of the flange around the perimeter of the oil pan. Refer to Adhesives, Fluids, Lubricants, and Sealers (LTG)Adhesives, Fluids, Lubricants, and Sealers (LCV) .

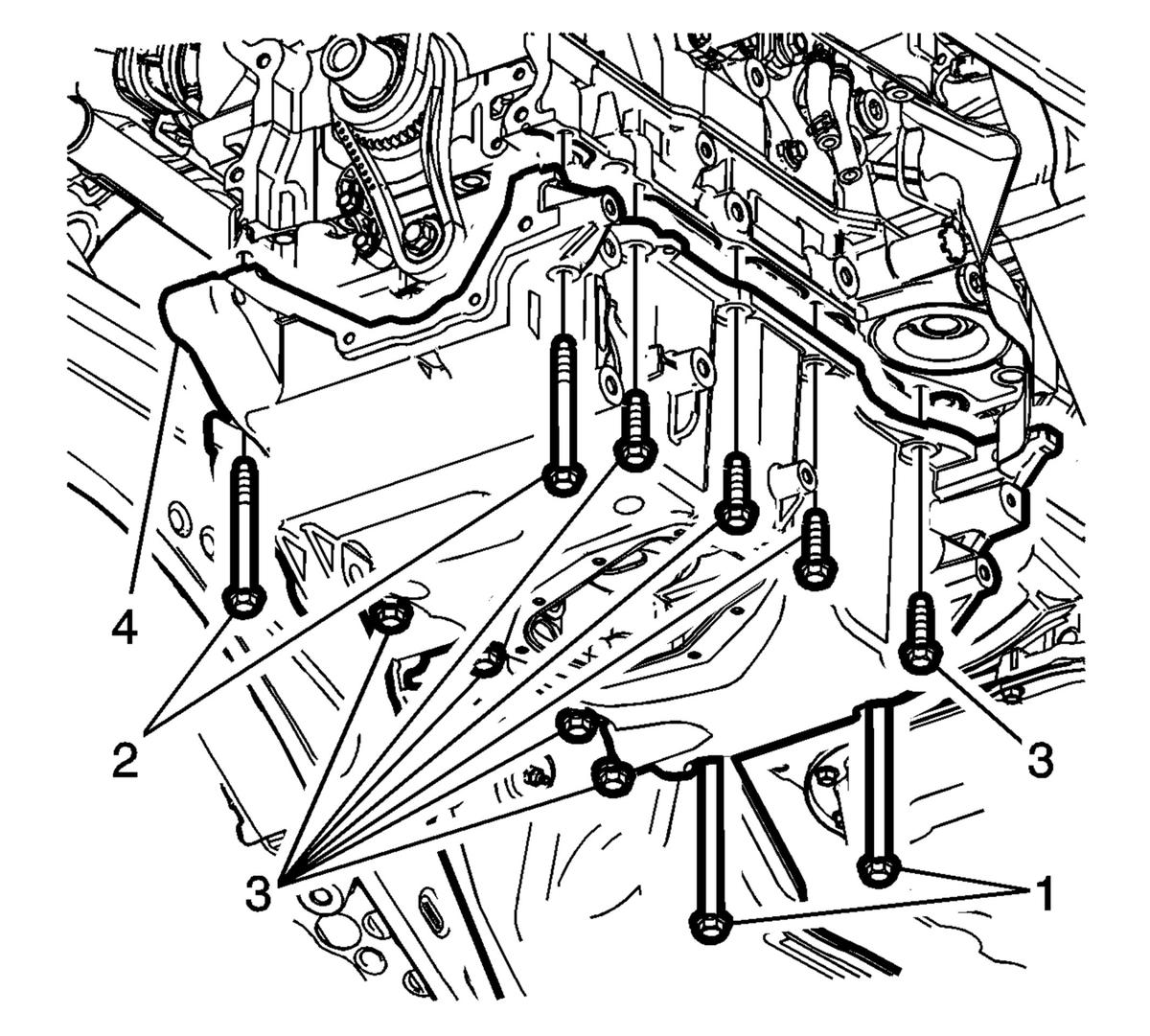

    2. Fig 2: Oil Pan And Bolts
    GM3258178Courtesy of GENERAL MOTORS COMPANY
  2. Install the oil pan (4).
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install the oil pan bolts (1-3) and finger tight.
    4. Fig 3: Engine Oil Pan Bolt Tightening Sequence
    GM2726785Courtesy of GENERAL MOTORS COMPANY
  4. Tighten the oil pan bolts in sequence to final torque twice using the following procedure:
    1. Tighten bolts in sequence 1-11 to 25 N.m (18 lb ft).
    2. Tighten bolts in sequence 12-13 to 10 N.m (89 lb in).

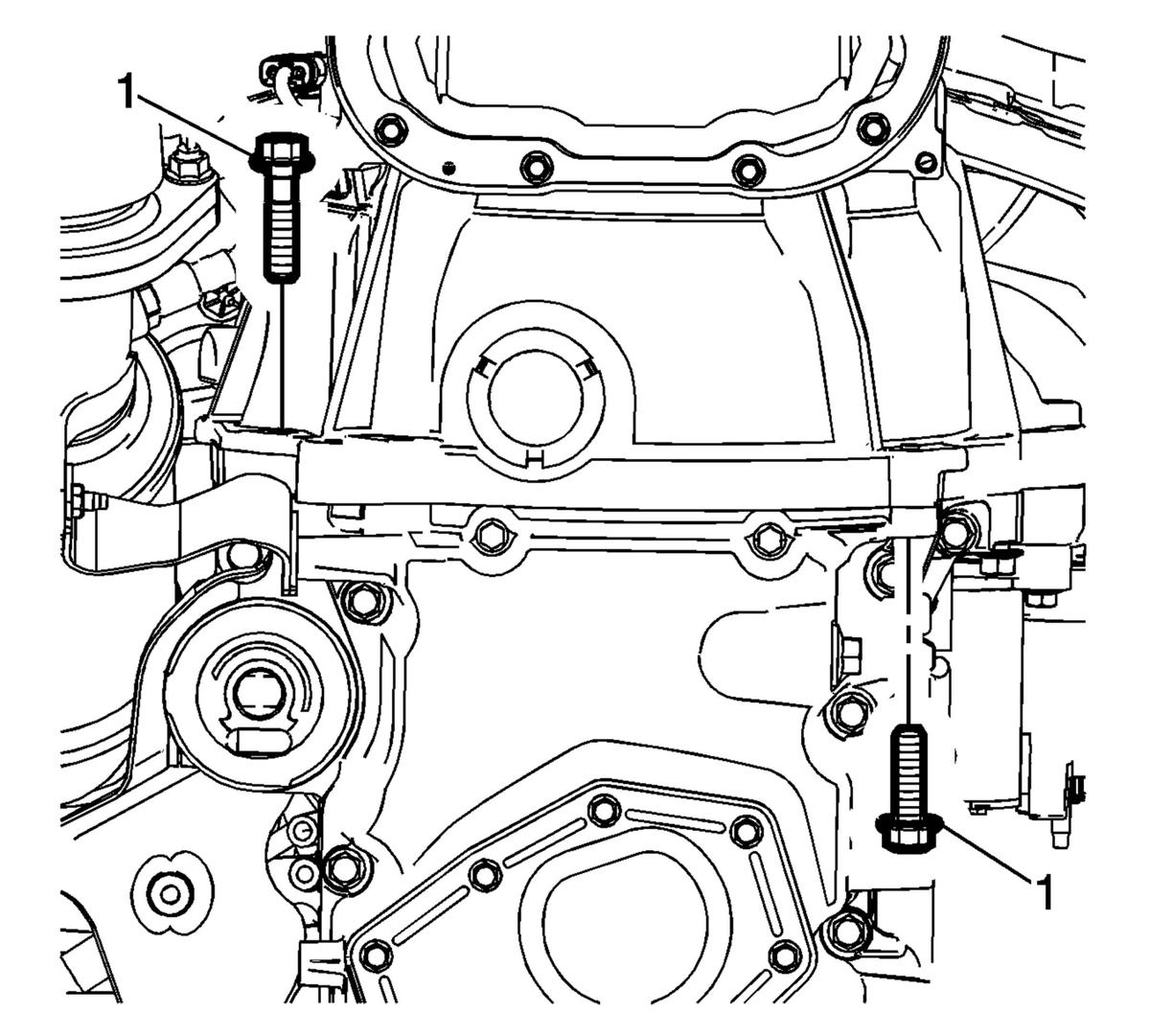

    5. Fig 4: Transmission Bolts
    GM3258181Courtesy of GENERAL MOTORS COMPANY
  5. Install the transmission bolts (1) and tighten to 50 N.m (37 lb ft).

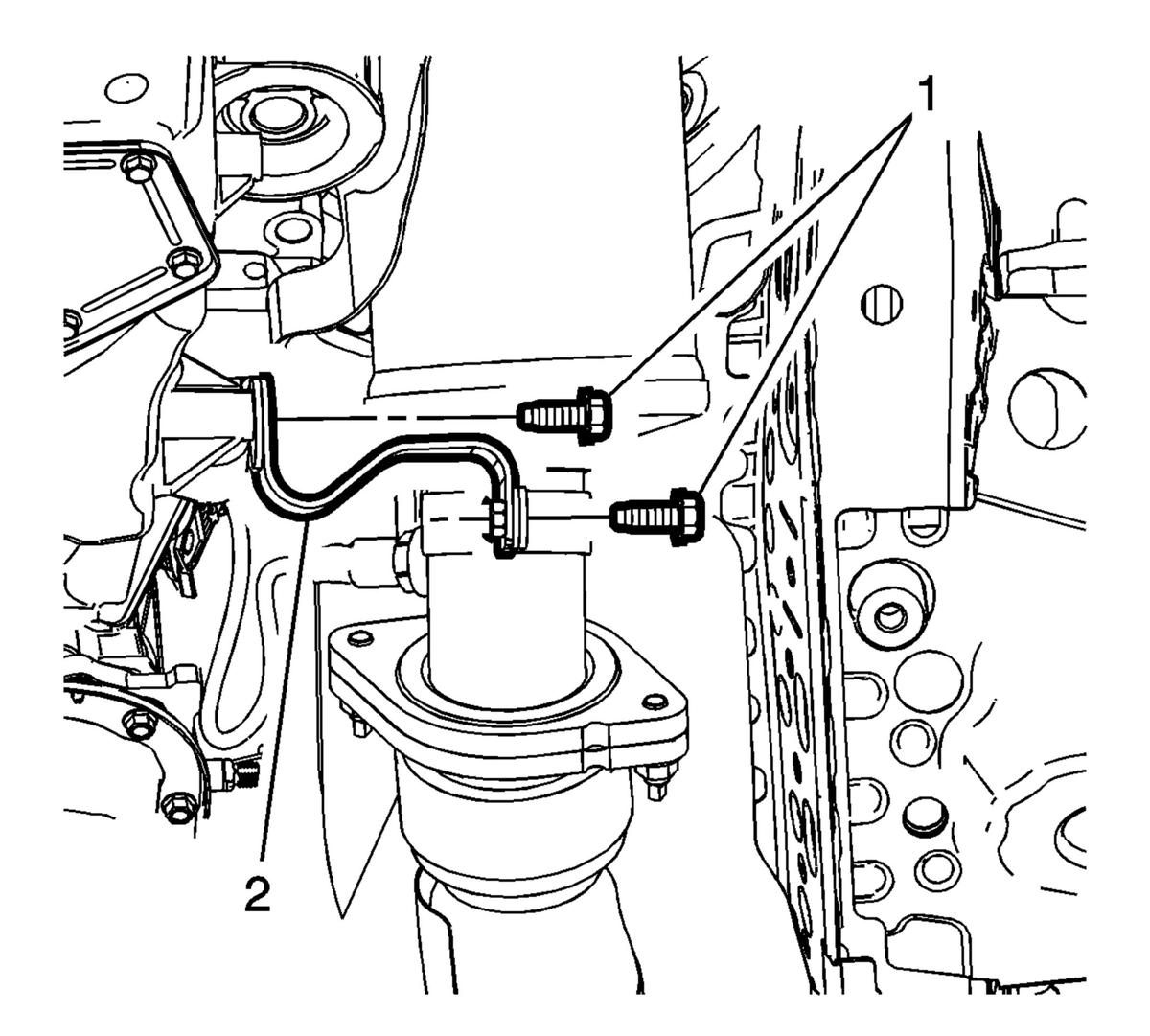

    6. Fig 5: Exhaust Bracket And Bolts
    GM3258186Courtesy of GENERAL MOTORS COMPANY
  6. Install the exhaust bracket (2).
  7. Install the exhaust bolts (1) and tighten to 10 N.m (89 lb in).

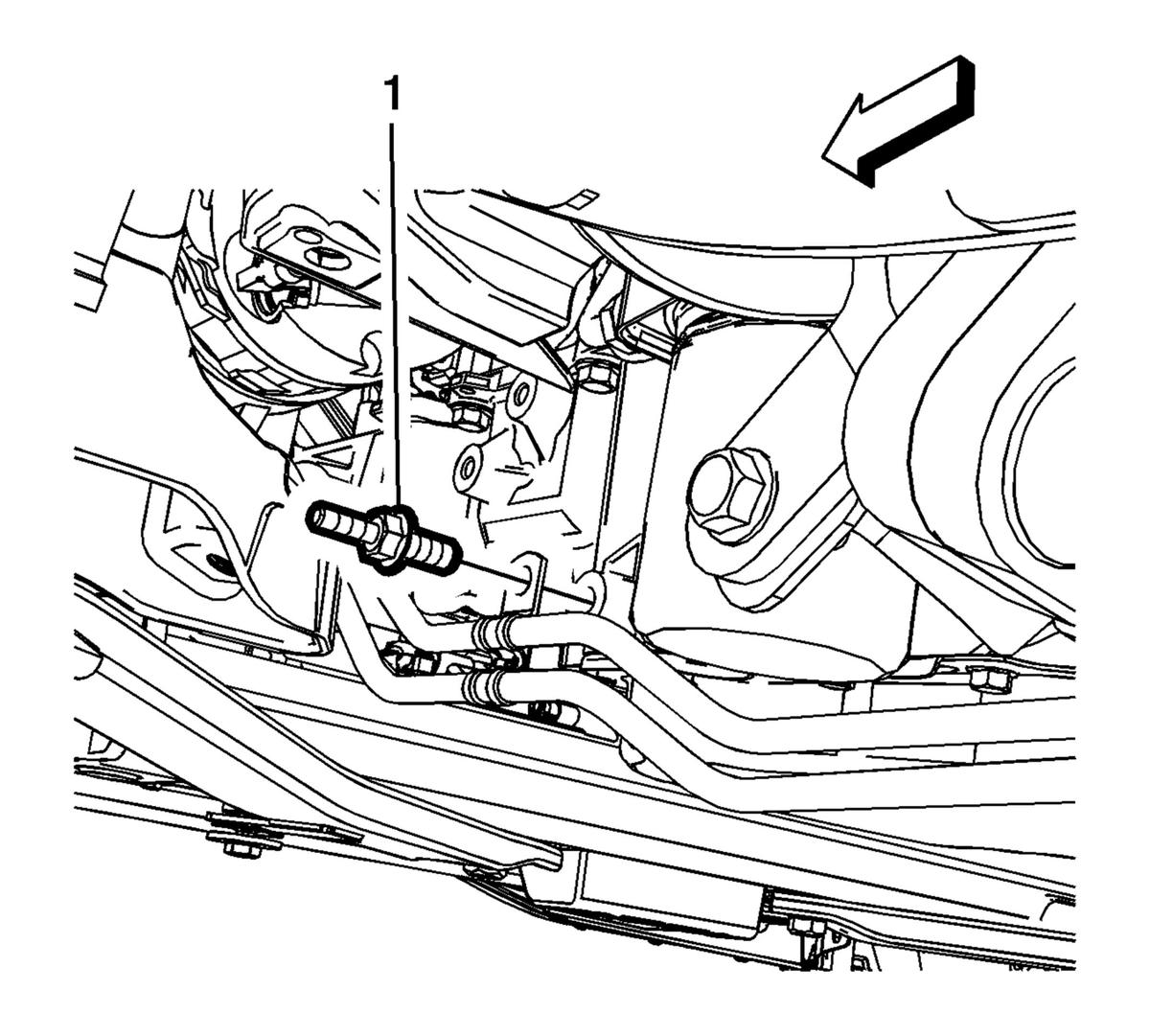

    8. Fig 6: Transmission Fluid Cooler Inlet & Outlet Pipe Stud
    GM2884520Courtesy of GENERAL MOTORS COMPANY
  8. Position the inlet and outlet pipe then install the retainer bolt. Refer to Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LCV Without V03)Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LTG With AWD, Without V03)Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LTG With RWD, Without V03)Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LCV With V03)Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LTG With RWD, With V03)Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LTG With AWD, With V03) .

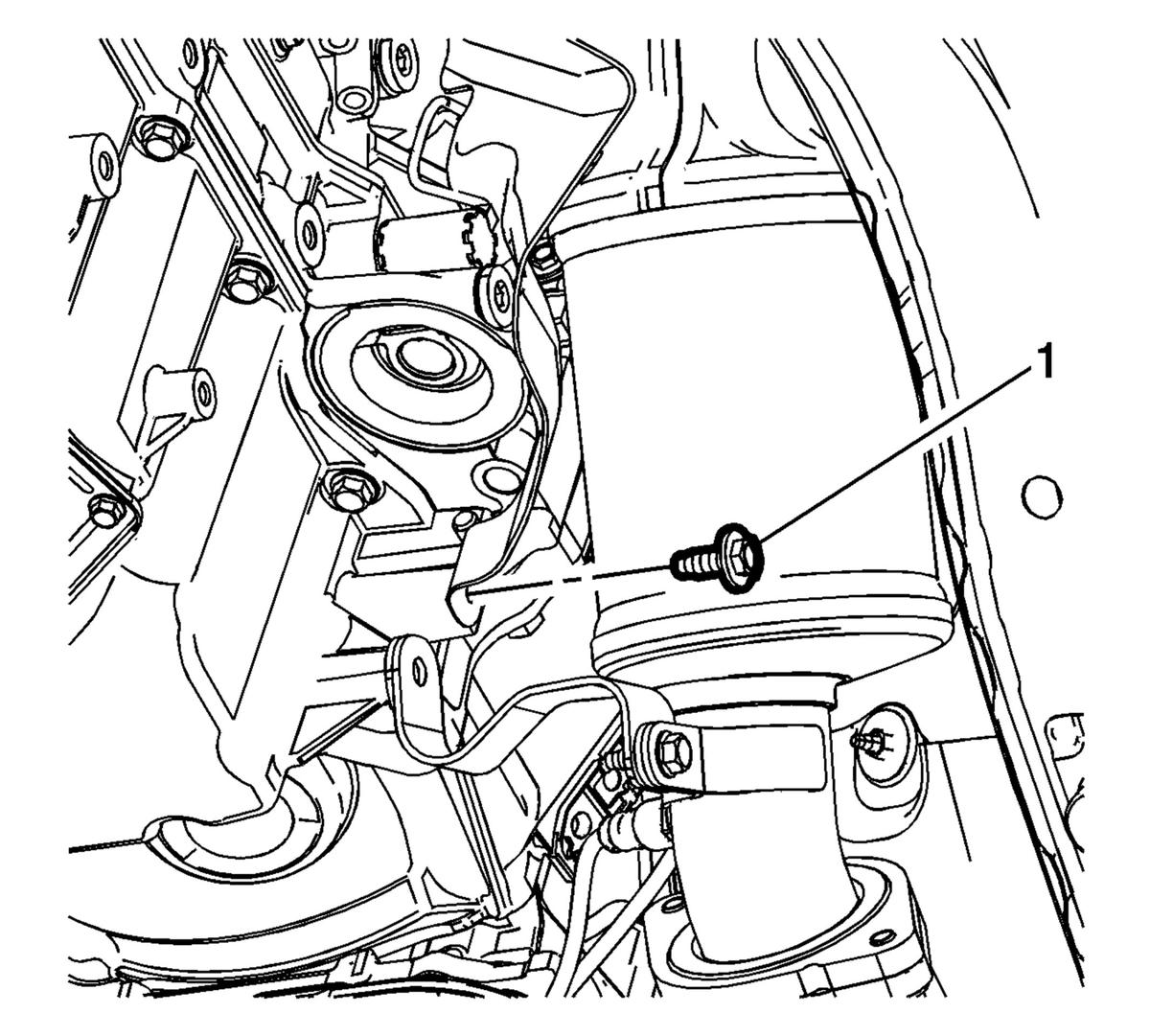

    9. Fig 7: Oil Pump Exhaust Shield Bolt
    GM3258189Courtesy of GENERAL MOTORS COMPANY
  9. Install the oil pump exhaust shield bolt (1) and tighten to 10 N.m (89 lb in).
  10. Connect the electrical connector as necessary.
  11. If equipped with rear-wheel drive, install the frame. Refer to Drivetrain and Front Suspension Frame Removal and Installation (LGX, LTG) .
  12. If equipped with all-wheel drive, install the front wheel drive intermediate shaft housing. Refer to Front Wheel Drive Intermediate Shaft Housing Replacement .
  13. If equipped with all-wheel drive, install the front differential carrier assembly. Refer to Front Differential Carrier Assembly Replacement (LCV or LTG) .
  14. If equipped, install the engine oil cooler. Refer to Engine Oil Cooler Replacement .
  15. Reinstall the A/C compressor. Refer to Air Conditioning Compressor Replacement (LCV)Air Conditioning Compressor Replacement (LTG) .
  16. Refill the engine oil. Refer to Engine Oil and Oil Filter Replacement .
