Installation Procedure
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

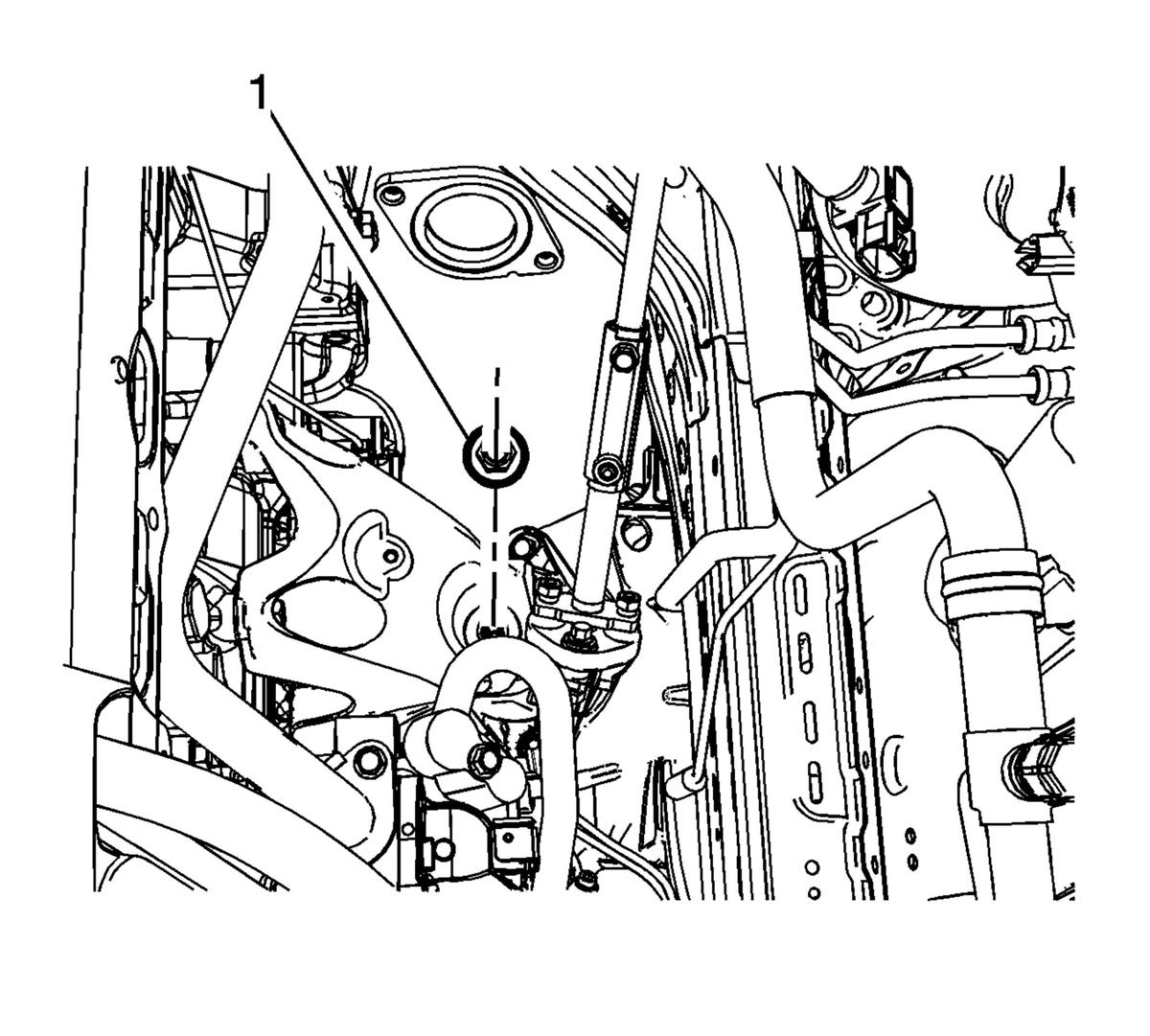

- Install the engine mount bracket (2).

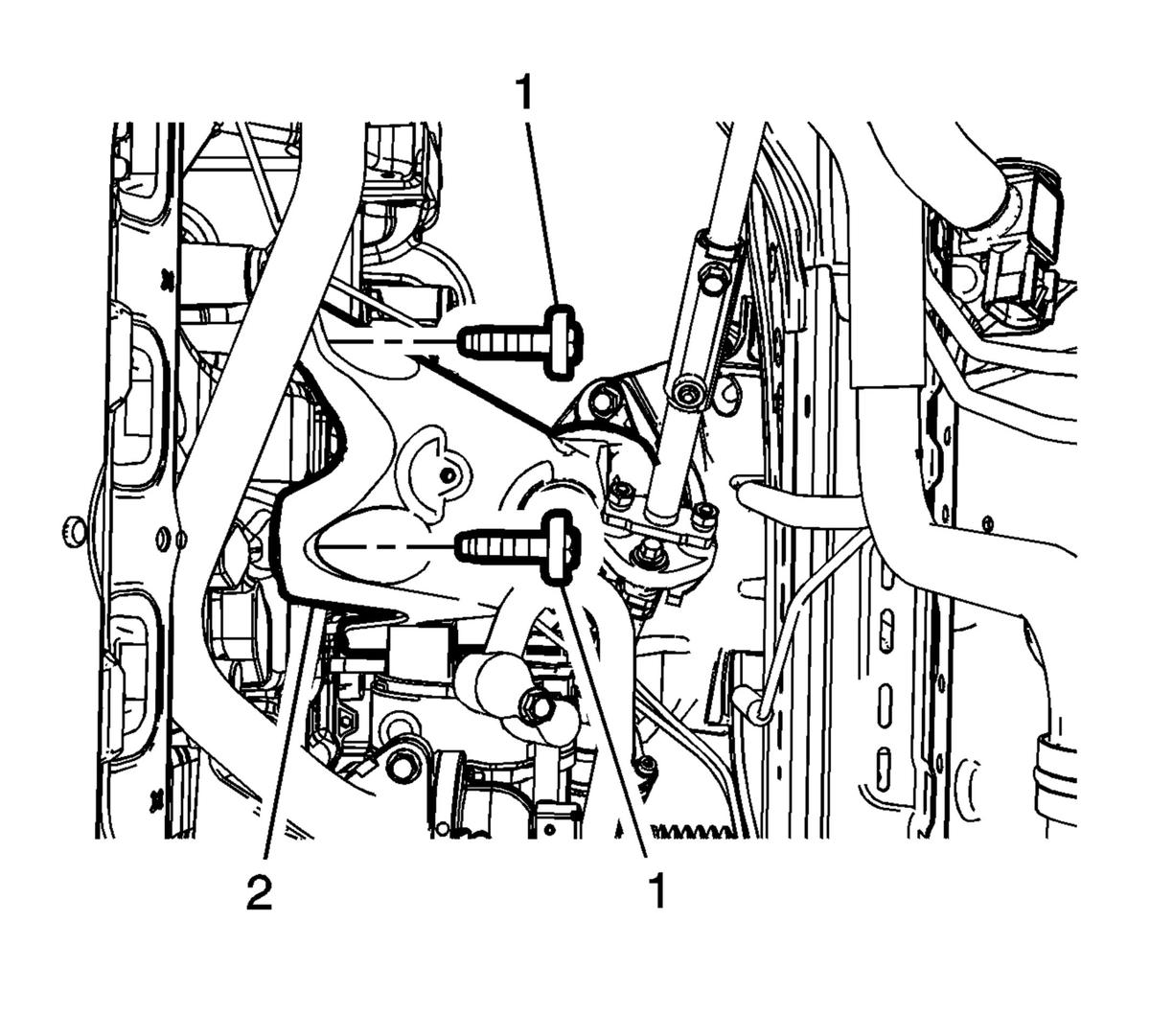

- Install engine mount bracket bolts (1) and tighten to 58 N.m (43 lb ft).
- Install engine mount bracket bolts (1) and tighten to 58 N.m (43 lb ft).

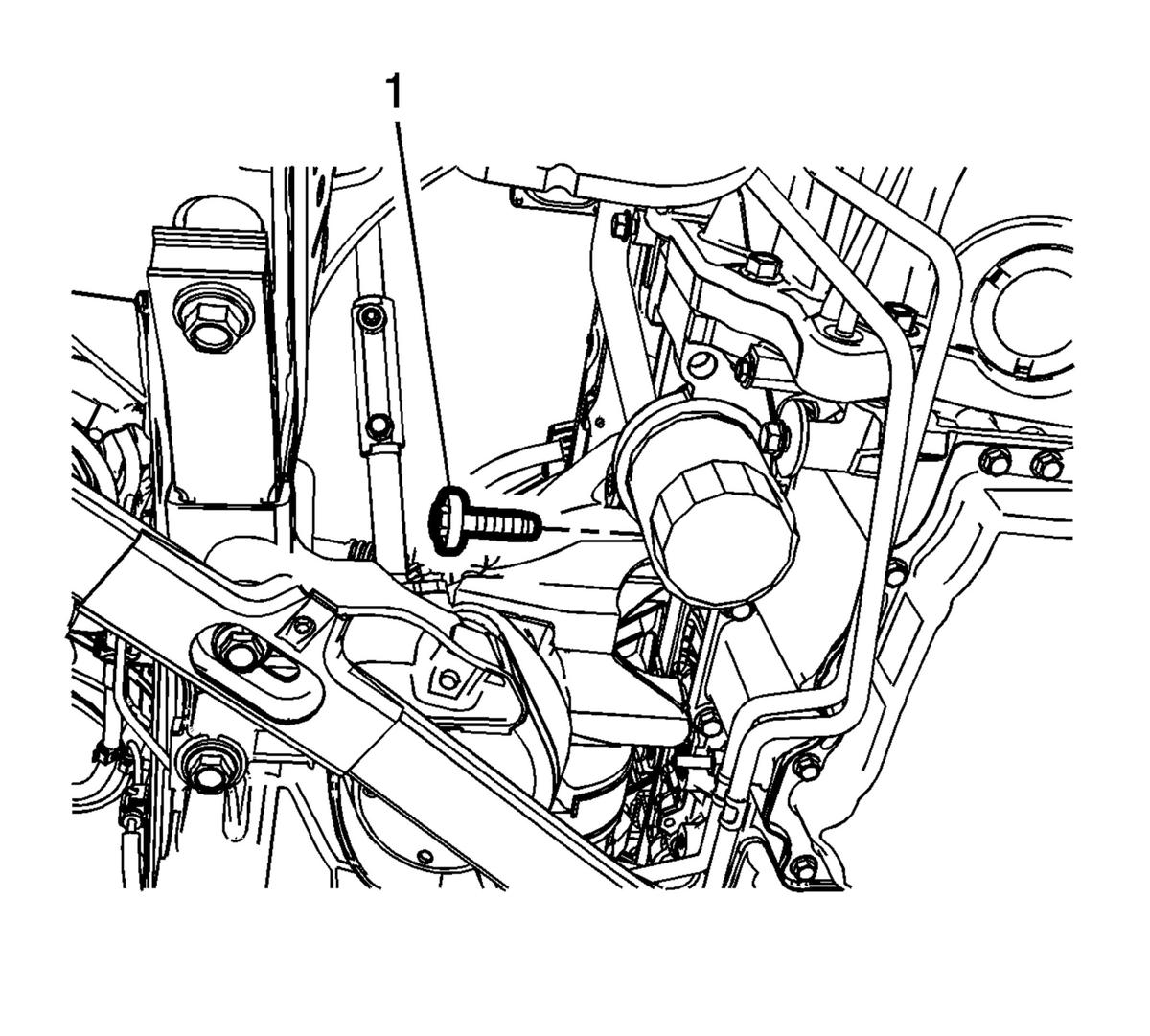

- Install engine mount bracket nut (1) and tighten to 70 N.m (52 lb ft).

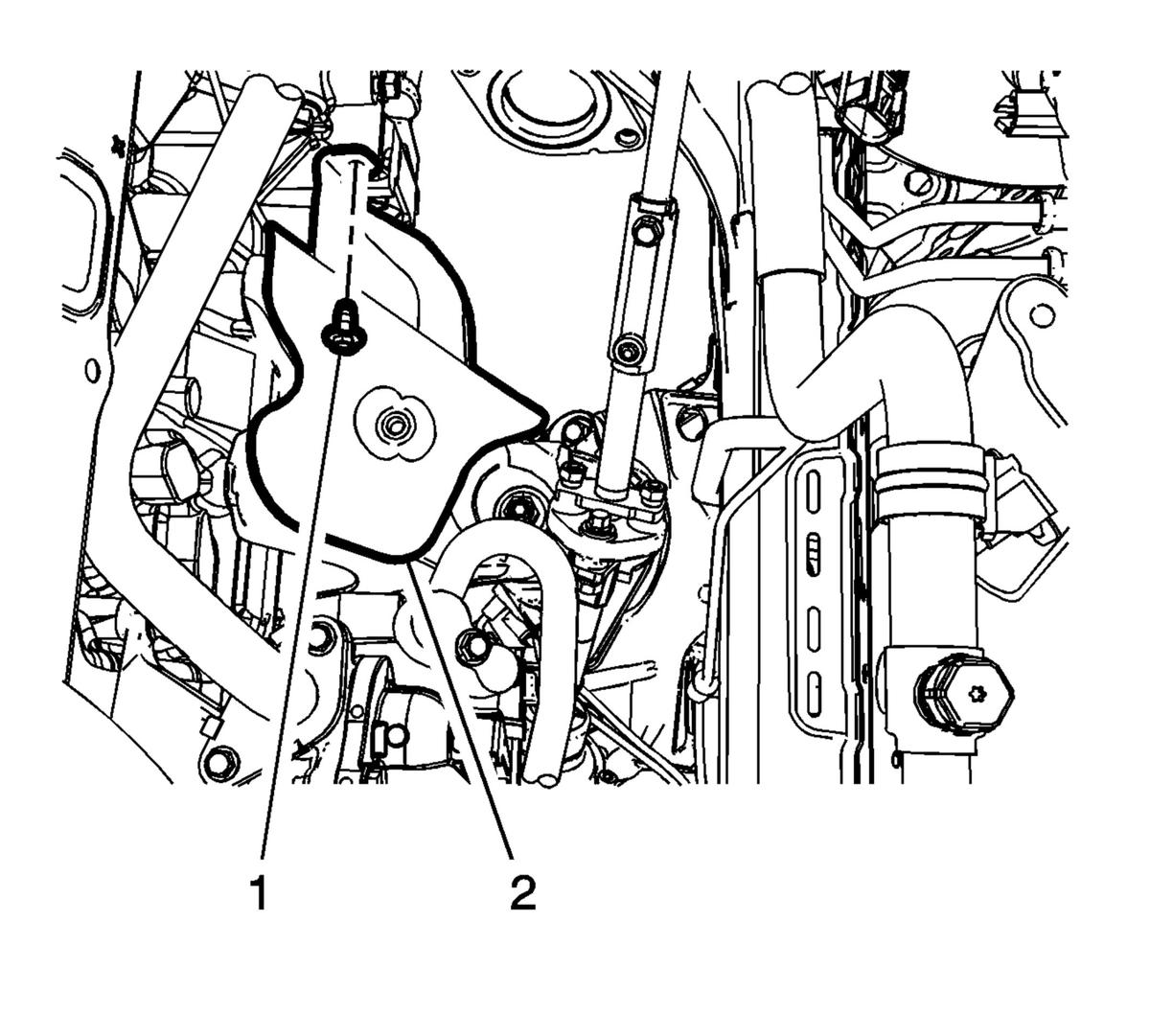

- Install the oil pump flow control valve heat shield (2).
- Install the oil pump flow control valve heat shield bolt (1) and tighten to 9 N.m (7 lb ft).
- Install the lower noise shield. Refer to Engine Compartment Lower Noise Shield Replacement (All Wheel Drive)Engine Compartment Lower Noise Shield Replacement (Front Wheel Drive) .
- Remove the engine support fixture. Refer to Engine Support Fixture .
- Install the turbocharger. Refer to Turbocharger Replacement .
CAUTION:
Refer to Fastener Caution .
NOTE:
Engine mount brackets are magnesium. To prevent galvanic corrosion, the bracket bolt includes a pressed-on aluminum washer. Ensure the washer is in place and not damaged. Replace the bolt if the washer is damaged or missing.
NOTE:
Engine mount brackets are magnesium. To prevent galvanic corrosion, the bracket bolt includes a pressed-on aluminum washer. Ensure the washer is in place and not damaged. Replace the bolt if the washer is damaged or missing.
