Engine Support Fixture

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

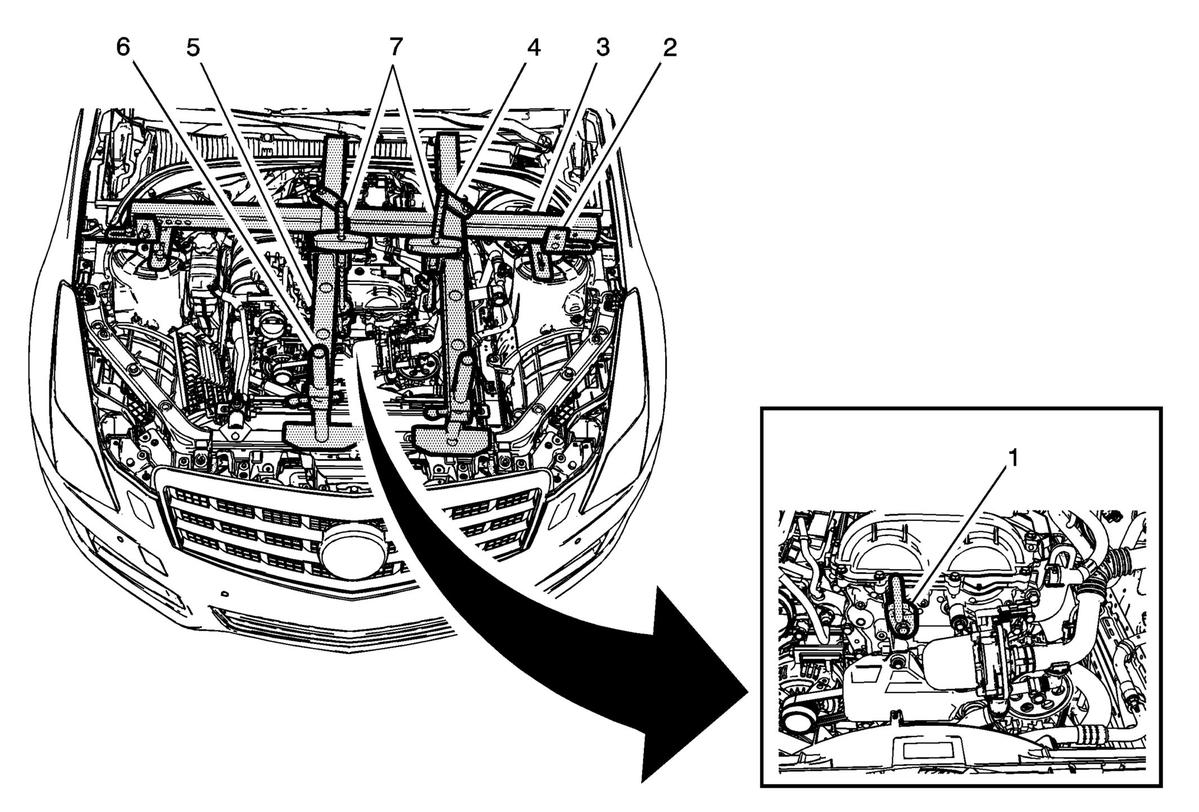

Fig 1: Engine Support Fixture

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement (Sedan)Front Compartment Front Sight Shield Replacement (Coupe) . Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement . Unclip and reposition the engine harness attached to the upper portion of the front cover. Special Tools J-28467-B Universal Engine Support Fixture J-28467-550 Engine Support Beam Adapter J-36857 Engine Lift Bracket For equivalent regional tools, refer to Special Tools .
1	Engine Lift Bracket CAUTION: Refer to Fastener Caution . Procedure Install engine lift bracket using the engine front cover bolt. Tighten 58 N.m (43 lb ft)
2	Engine Support Fixture Adapter Leg (Qty: 2) Procedure Install the bracket to fender frame. Do not install on top of fender lip.
3	Main Support Beam
4	Cross Bracket (Qty: 2)
5	Engine Support Fixture leg (Qty: 2) Procedure Adjust the length of the engine support fixture leg.
6	Radiator Tube Shelf Assembly
7	Hook Assembly NOTE: If the engine is not equipped with engine lift bracket, install J-36857 engine lift bracket in place.
