Windshield Defroster Nozzle Duct Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

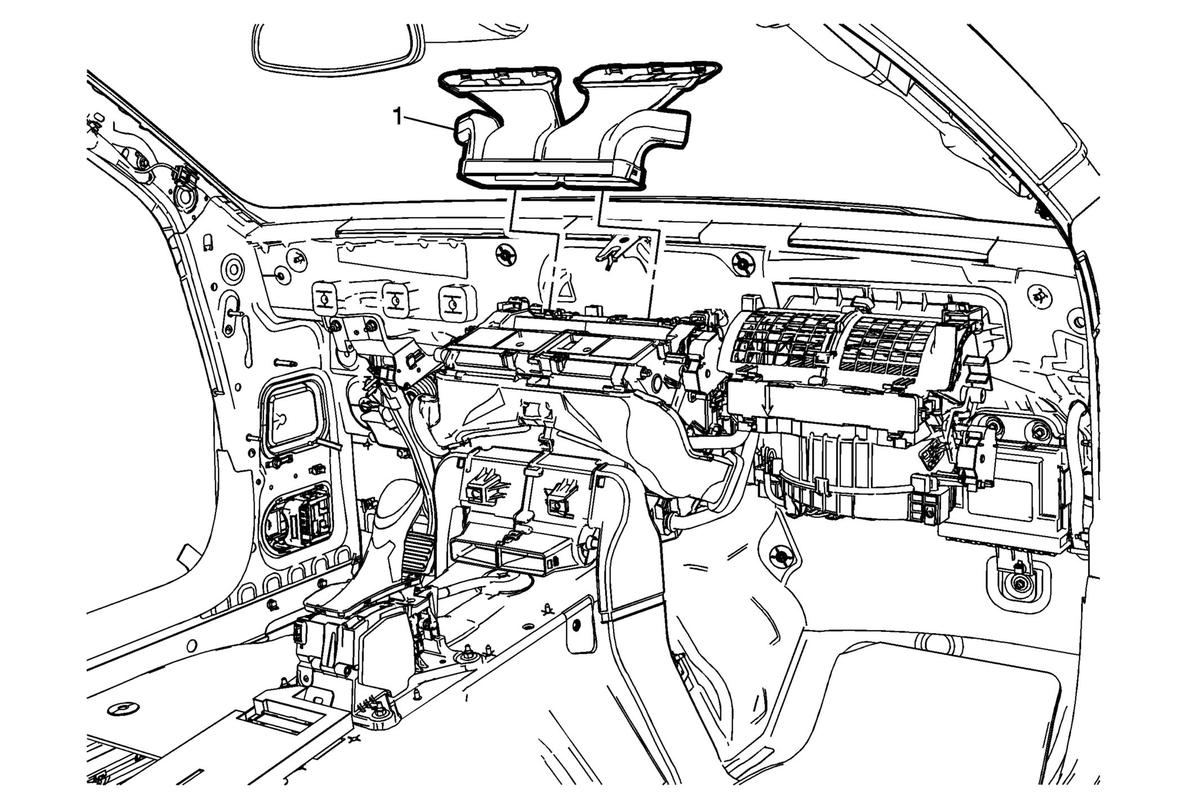

Fig 1: Windshield Defroster Nozzle Duct

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the air distributor center duct. Refer to Air Distributor Center Duct Replacement . Remove the instrument panel tie bar assembly. Refer to Instrument Panel Tie Bar Replacement .
1	Windshield Defroster Nozzle Duct

Callout

Component Name

Preliminary Procedures

Remove the air distributor center duct. Refer to Air Distributor Center Duct Replacement .
Remove the instrument panel tie bar assembly. Refer to Instrument Panel Tie Bar Replacement .

Windshield Defroster Nozzle Duct
