Air Distributor Center Duct Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

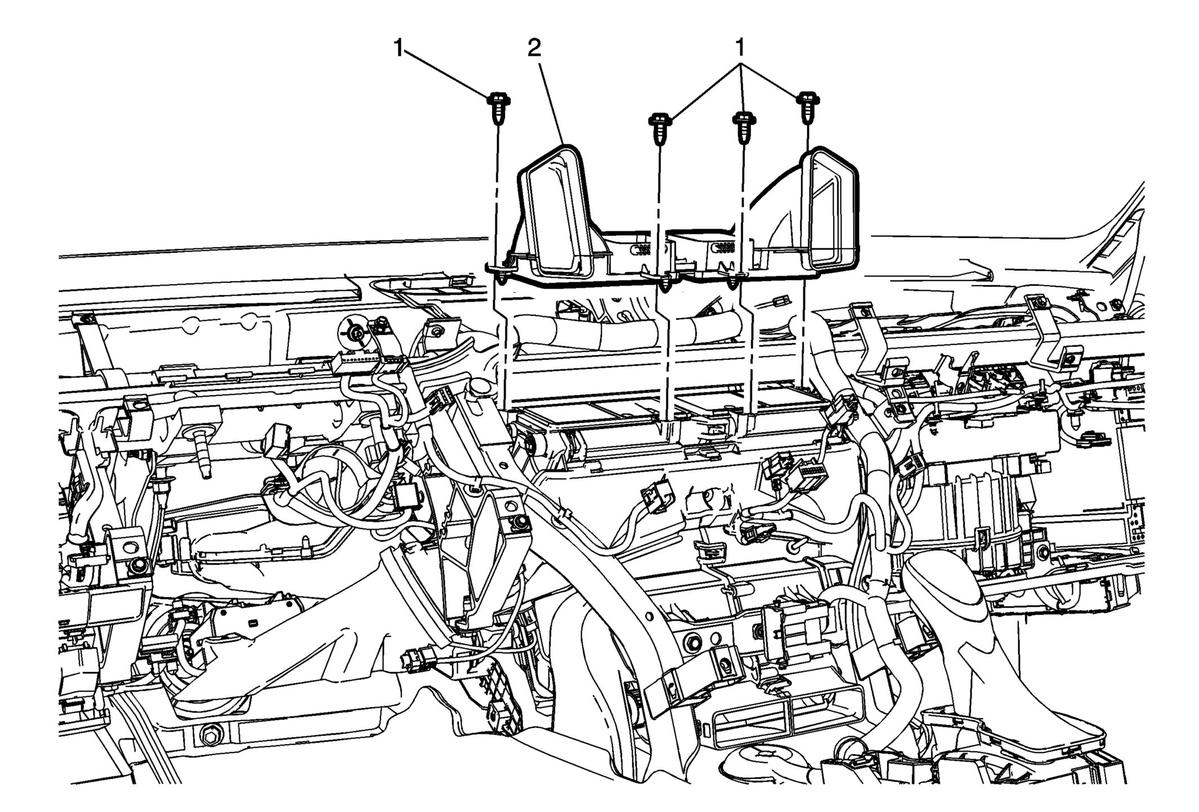

Fig 1: Air Distributor Center Duct

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the instrument panel carrier assembly. Refer to Instrument Panel Carrier Replacement . Remove the left side air distributor duct. Refer to Air Distributor Duct Replacement - Left Side . Remove the right side air distributor duct. Refer to Air Distributor Duct Replacement - Right Side .
1	Air Distributor Center Duct Bolt (Qty: 4) CAUTION: Refer to Fastener Caution .
2	Air Distributor Center Duct

Callout

Component Name

Preliminary Procedures

Remove the instrument panel carrier assembly. Refer to Instrument Panel Carrier Replacement .
Remove the left side air distributor duct. Refer to Air Distributor Duct Replacement - Left Side .
Remove the right side air distributor duct. Refer to Air Distributor Duct Replacement - Right Side .

Air Distributor Center Duct Bolt (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Air Distributor Center Duct
