Heater and Air Conditioning Control Temperature Lever Replacement - Right Side
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the right side temperature valve actuator. Refer to Temperature Valve Actuator Replacement - Right Side . |
|

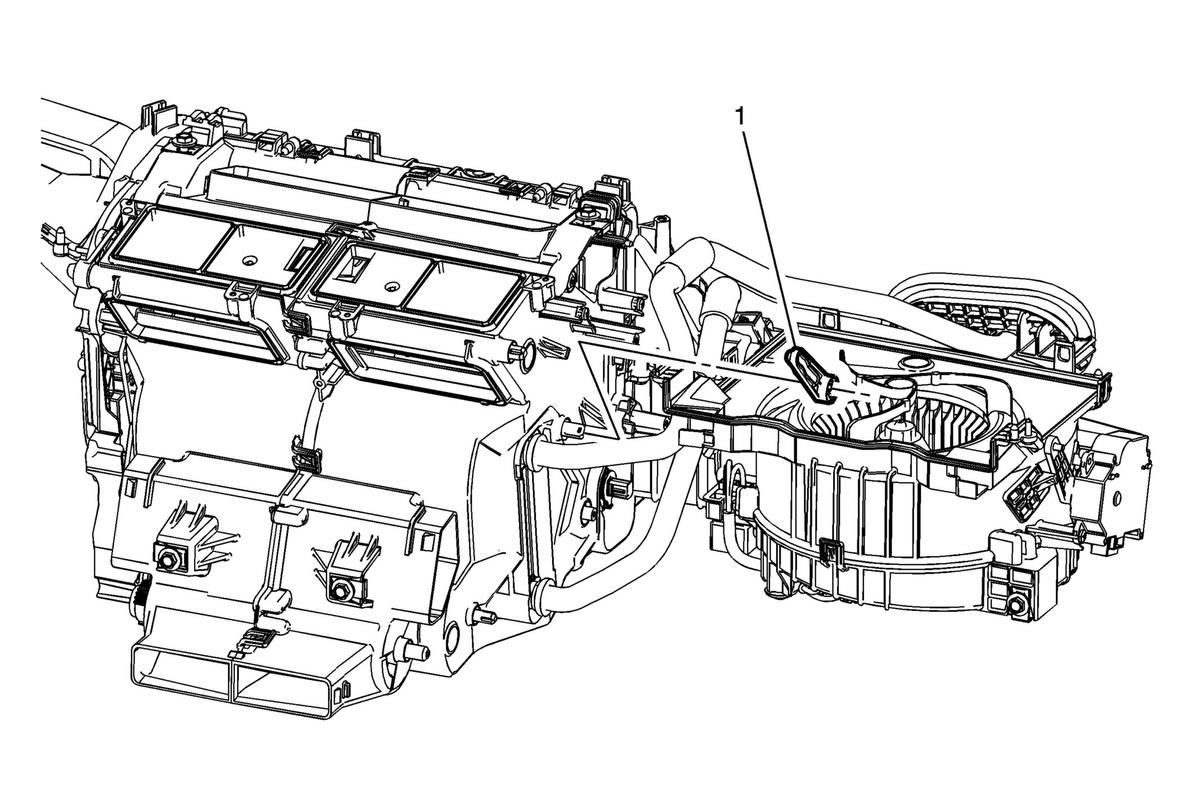

| 1 | Heater and Air Conditioning Control Temperature Valve Actuator Lever - Right Side |
