Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to Cooling System Draining and Filling (Static)Cooling System Draining and Filling (GE 47716)
    2. Fig 1: Front End Sheet Metal Diagonal Brace - Right Side
    GM4071385Courtesy of GENERAL MOTORS COMPANY
  2. Remove Front End Sheet Metal Diagonal Brace - Right Side (4). Refer to Front End Sheet Metal Diagonal Brace Replacement - Right Side
    3. Fig 2: Radiator Surge Tank
    GM4086709Courtesy of GENERAL MOTORS COMPANY
  3. Remove Radiator Surge Tank (6). Refer to Radiator Surge Tank Replacement (LF4, LGX)

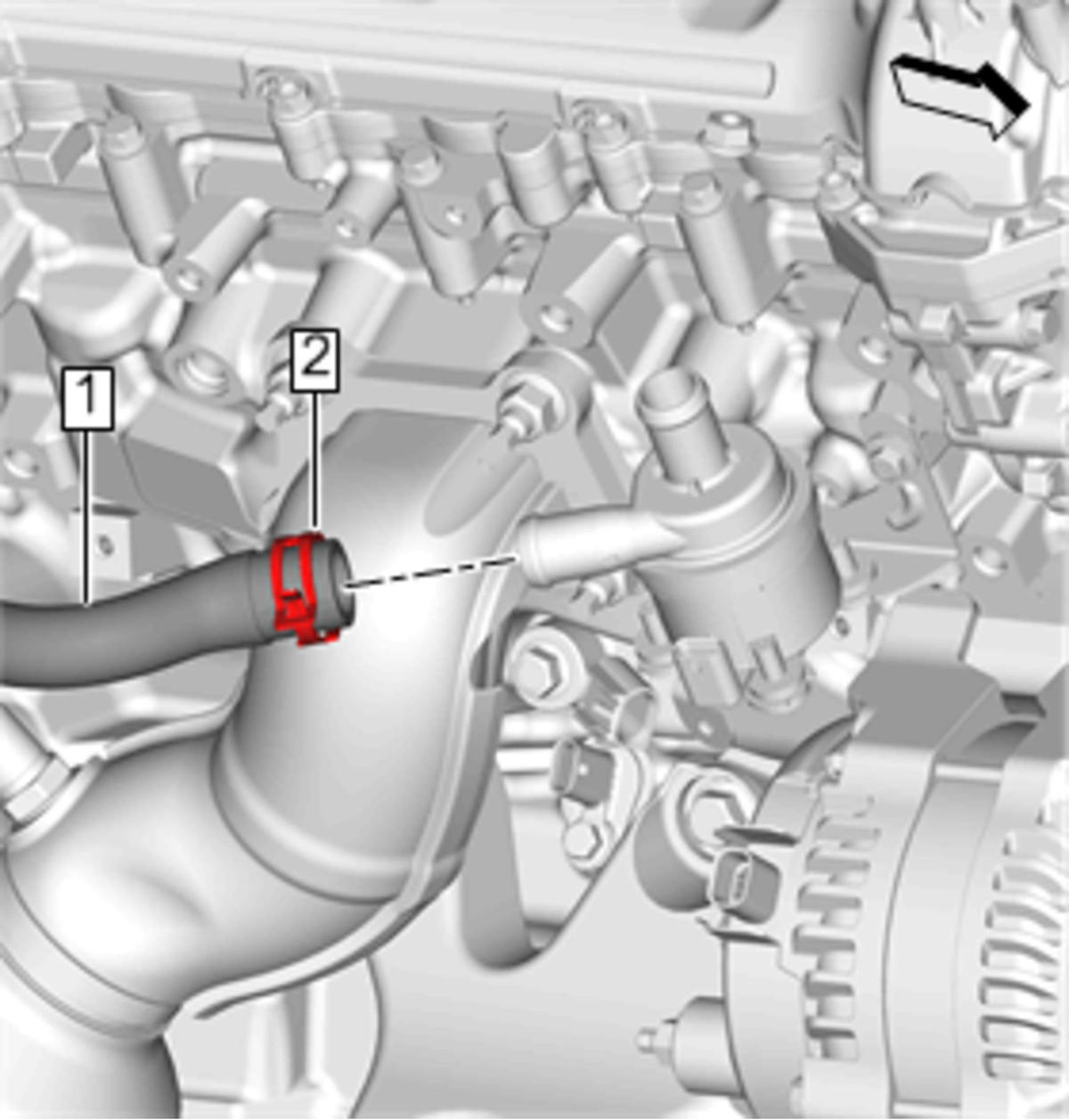

    4. Fig 3: Auxiliary Heater Outlet Hose And Clamp
    GM4112852Courtesy of GENERAL MOTORS COMPANY
  4. Disengage Auxiliary Heater Outlet Hose Clamp (2)

    Use the BO-38185  Hose Clamp Pliers.

  5. Remove Auxiliary Heater Outlet Hose (1)

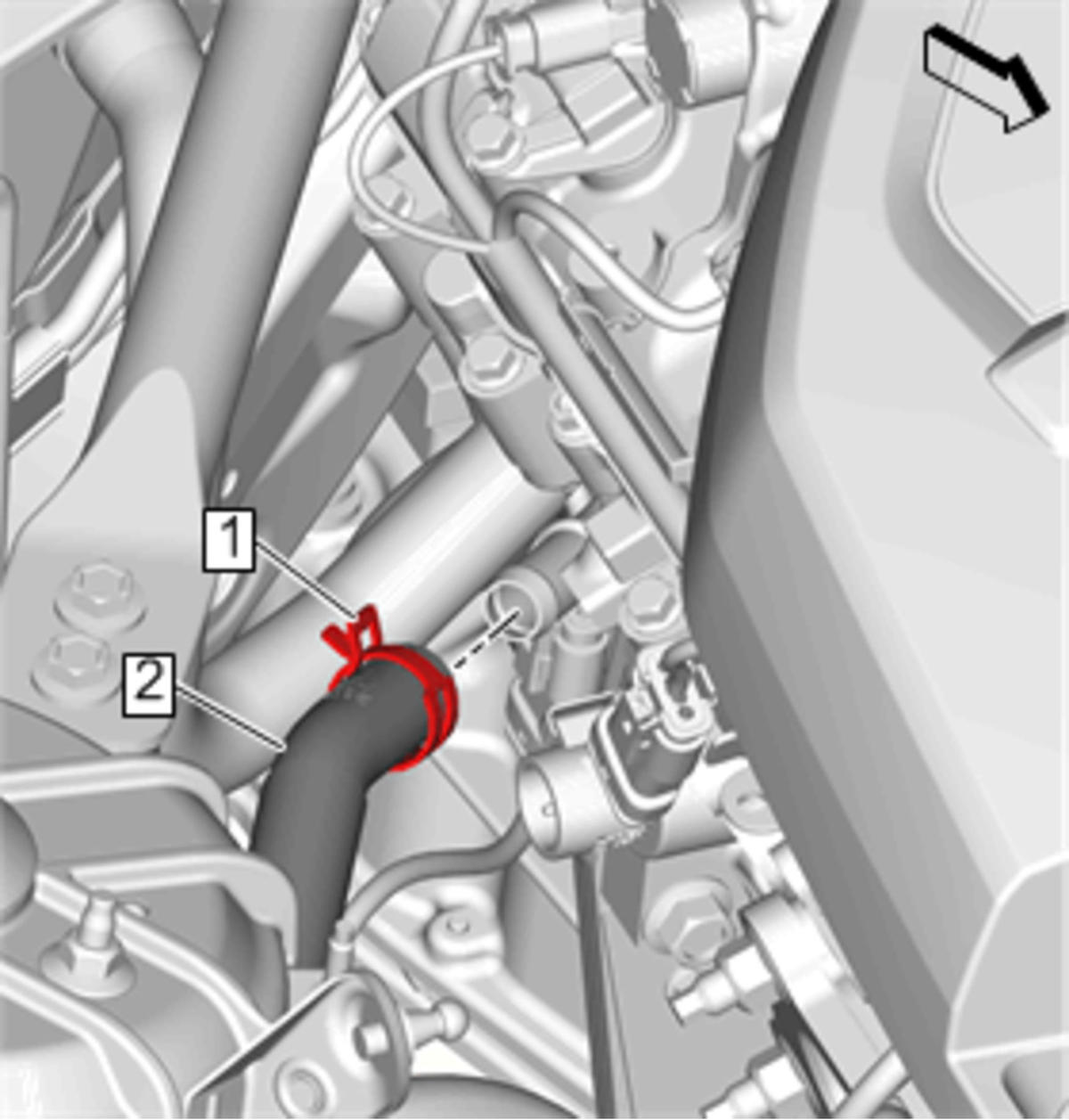

    6. Fig 4: Auxiliary Heater Outlet Hose And Clamp
    GM4104819Courtesy of GENERAL MOTORS COMPANY
  6. Disengage Auxiliary Heater Outlet Hose Clamp (1)

    Use the BO-38185  Hose Clamp Pliers.

  7. Remove Auxiliary Heater Outlet Hose (2)
