Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

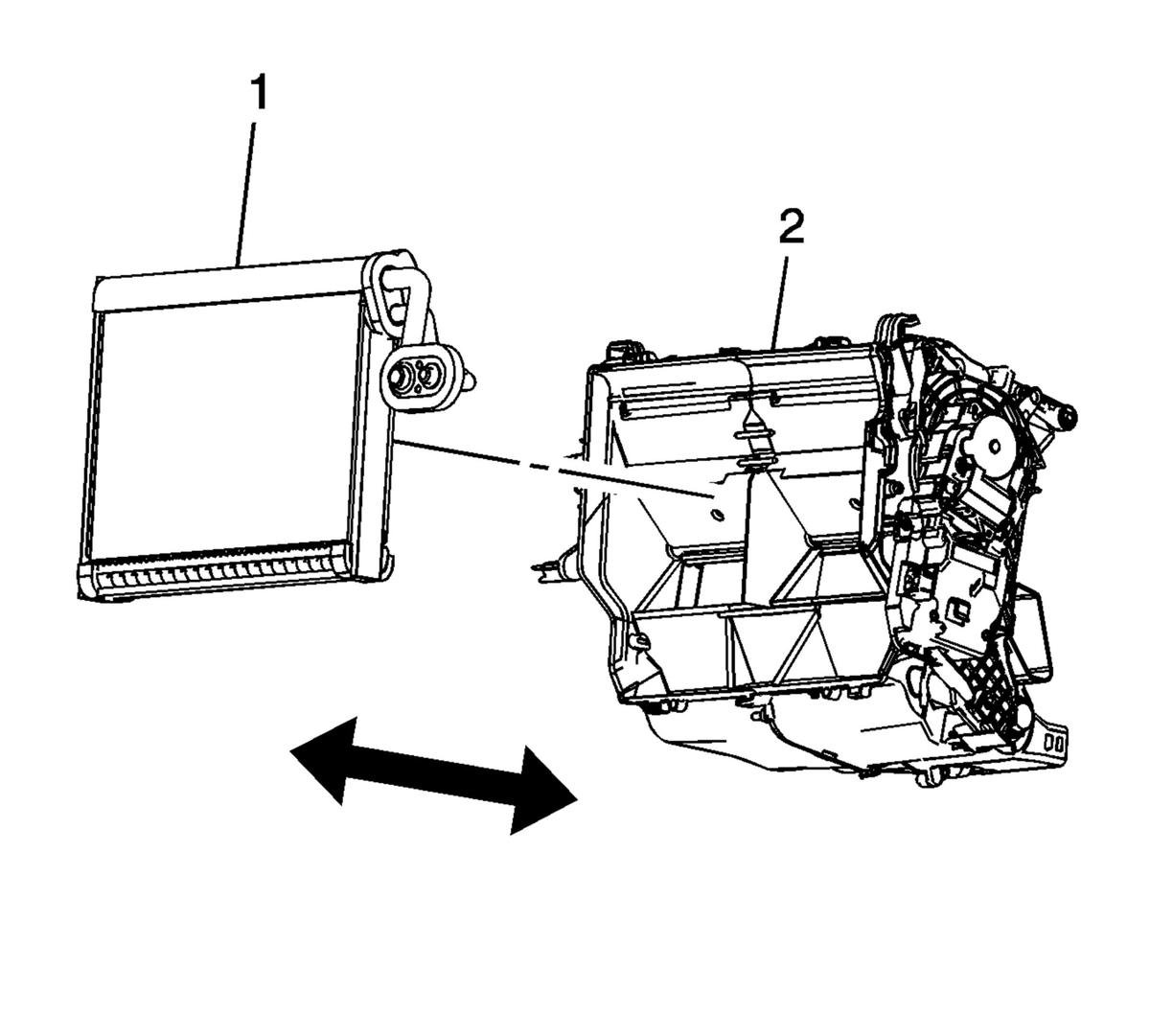

    Fig 1: Air Conditioning Evaporator Core And Distributor Case Assembly
    GM2834677Courtesy of GENERAL MOTORS COMPANY
  1. Position the air conditioning evaporator core (1) into the air distributor case assembly (2).
  2. Install the air conditioning (a/c) evaporator case assembly. Refer to Air Conditioning (A/C) Evaporator Case Assembly Replacement .
