Air Conditioning (A/C) Evaporator Case Assembly Replacement
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the air conditioning evaporator tube cover assembly. Refer to Air Conditioning Evaporator Tube Cover Replacement . |
|

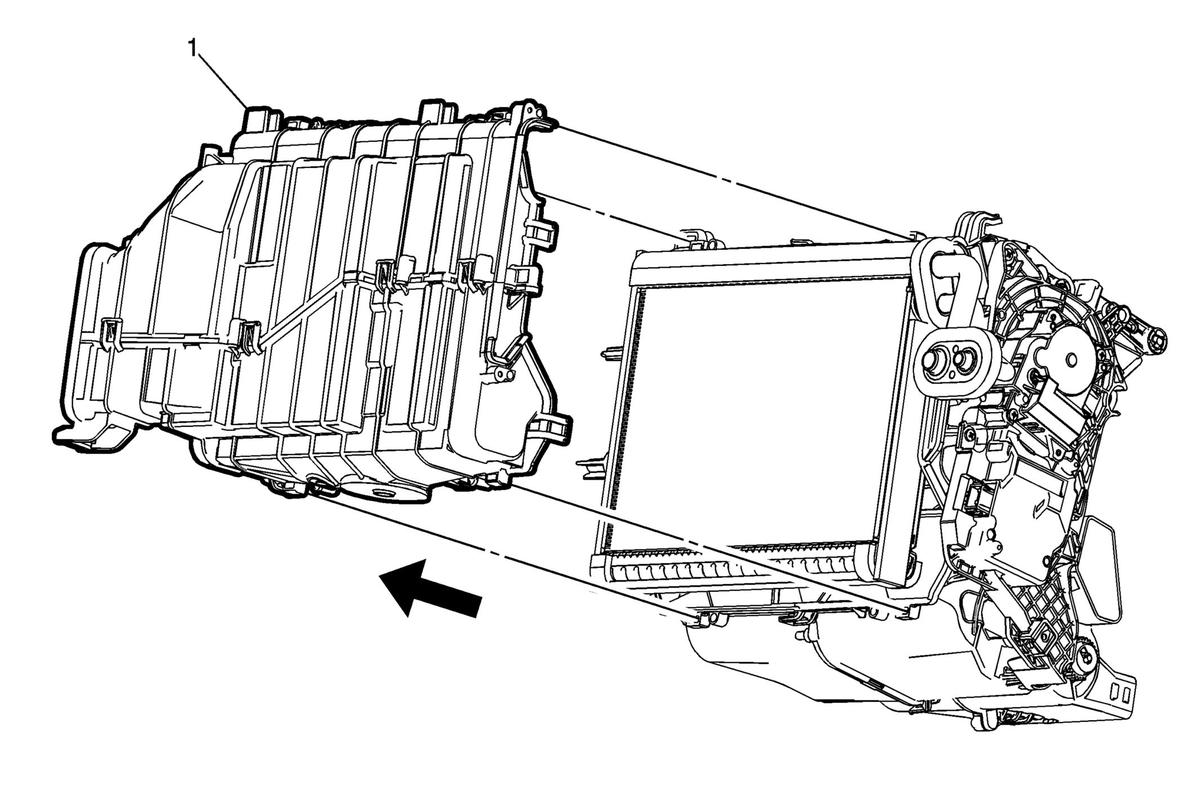

| 1 | Air Conditioning Evaporator Case Assembly Procedure Unlatch the air conditioning evaporator case assembly from the air distributor case. |
