Air Conditioning Evaporator Lower Case Replacement
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

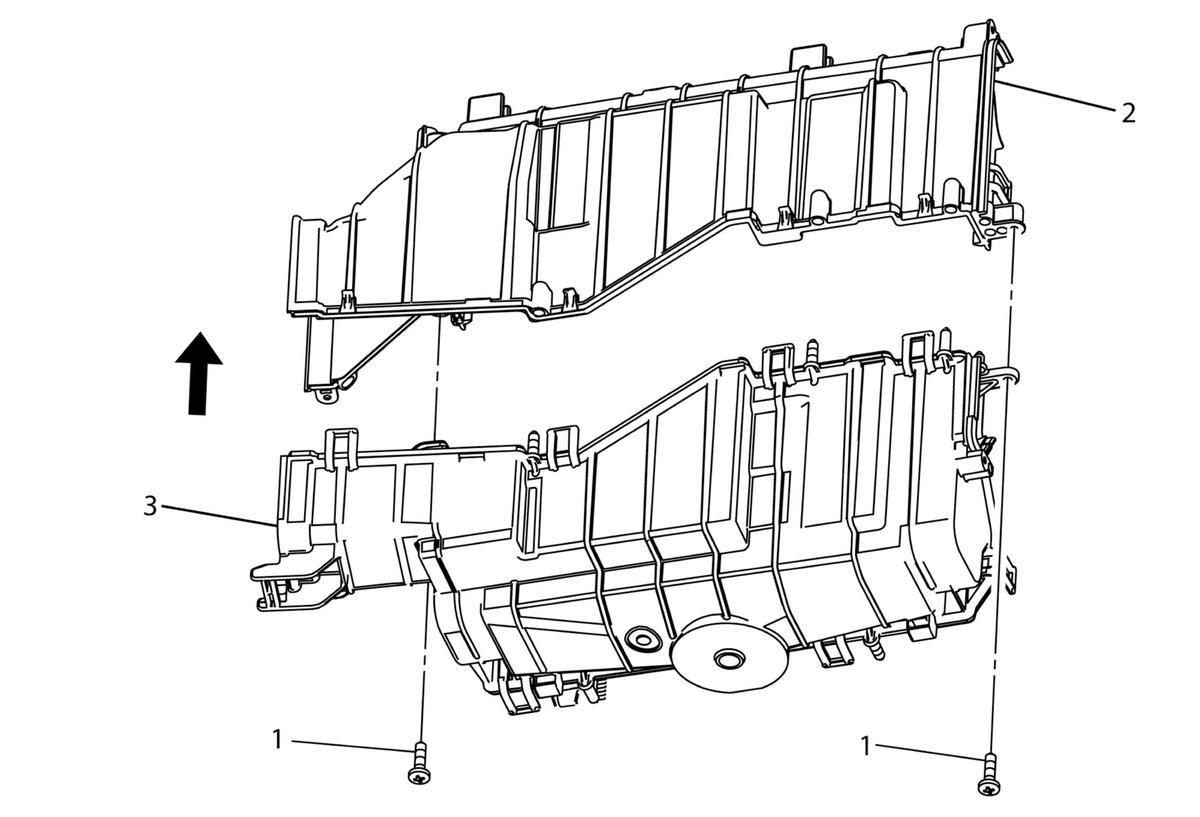

| Call out | Component Name |
|---|---|
| Preliminary Procedure Remove the air conditioning evaporator case assembly. Refer to Air Conditioning (A/C) Evaporator Case Assembly Replacement . |
|
| 1 | Air Conditioning Evaporator Case Assembly Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . |
| 2 | Air Conditioning Evaporator Upper Case Assembly Procedure Unlatch the air conditioning evaporator lower case assembly from the air conditioning evaporator upper case assembly. |
| 3 | Air Conditioning Evaporator Lower Case Assembly |
