Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

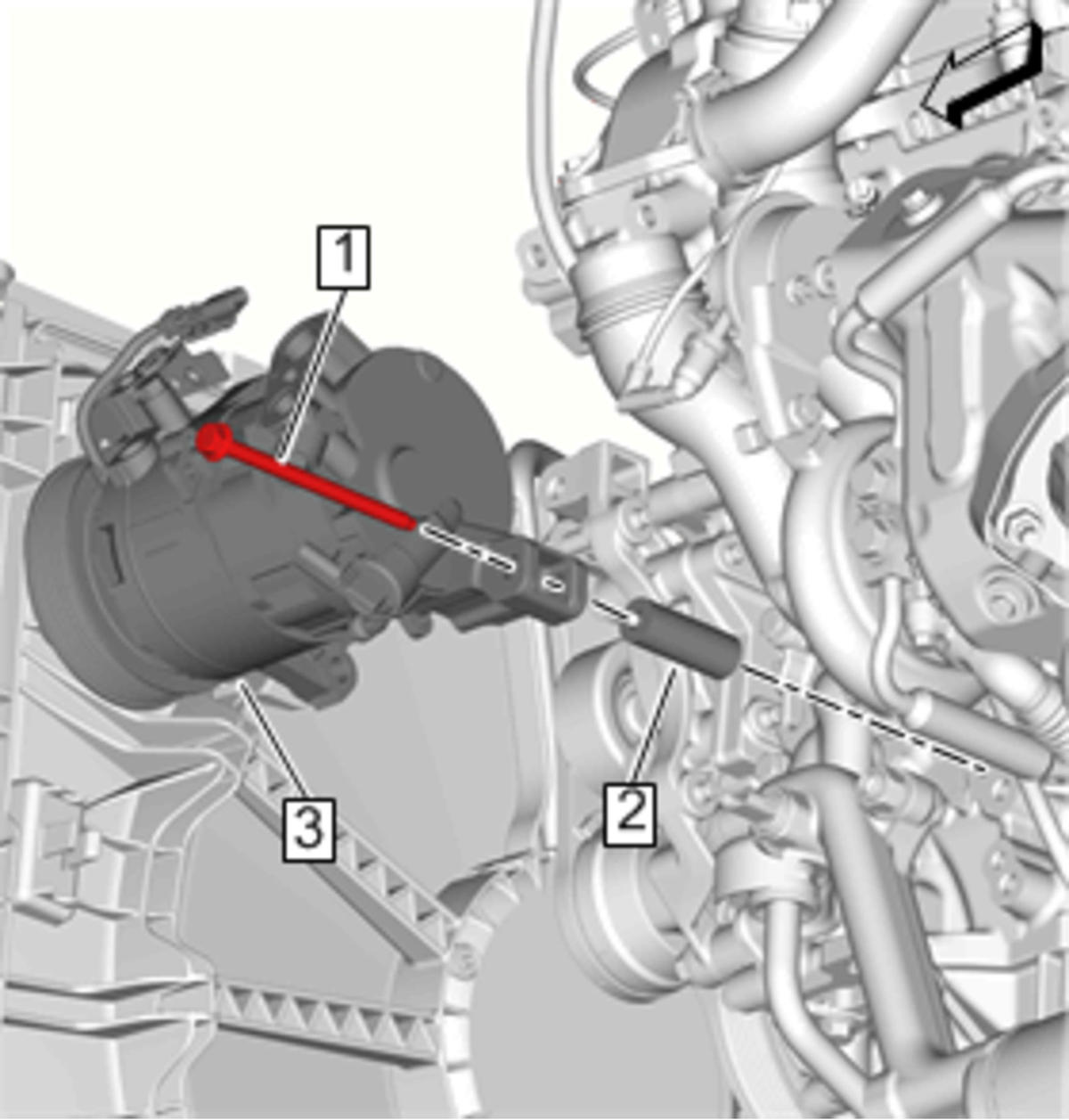

    Fig 1: Air Conditioning Compressor, Bracket And Bolt
    GM4032664Courtesy of GENERAL MOTORS COMPANY
  1. Install Air Conditioning Compressor Bracket (2)
  2. Install Air Conditioning Compressor (3)
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install and tighten Air Conditioning Compressor Bolt (1) to 22 N.m (16 lb ft)
  4. Install Front Cradle Shear Plate (2). Refer to Front Cradle Shear Plate Replacement (V Series)

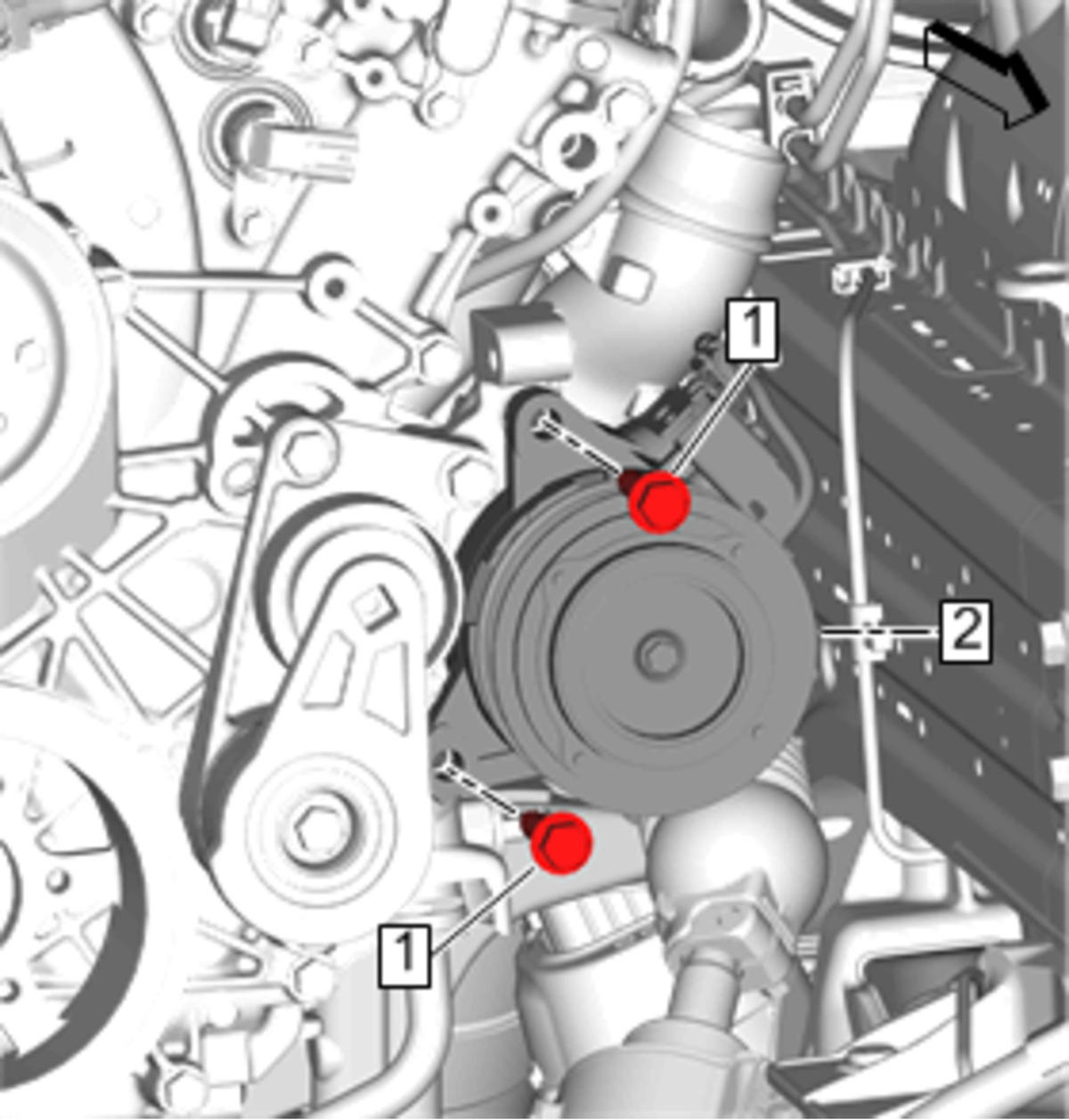

    5. Fig 2: Air Conditioning Compressor And Bolts
    GM4032662Courtesy of GENERAL MOTORS COMPANY
  5. Install and tighten Air Conditioning Compressor Bolt (1) (Qty: 2) to 58 N.m (43 lb ft)

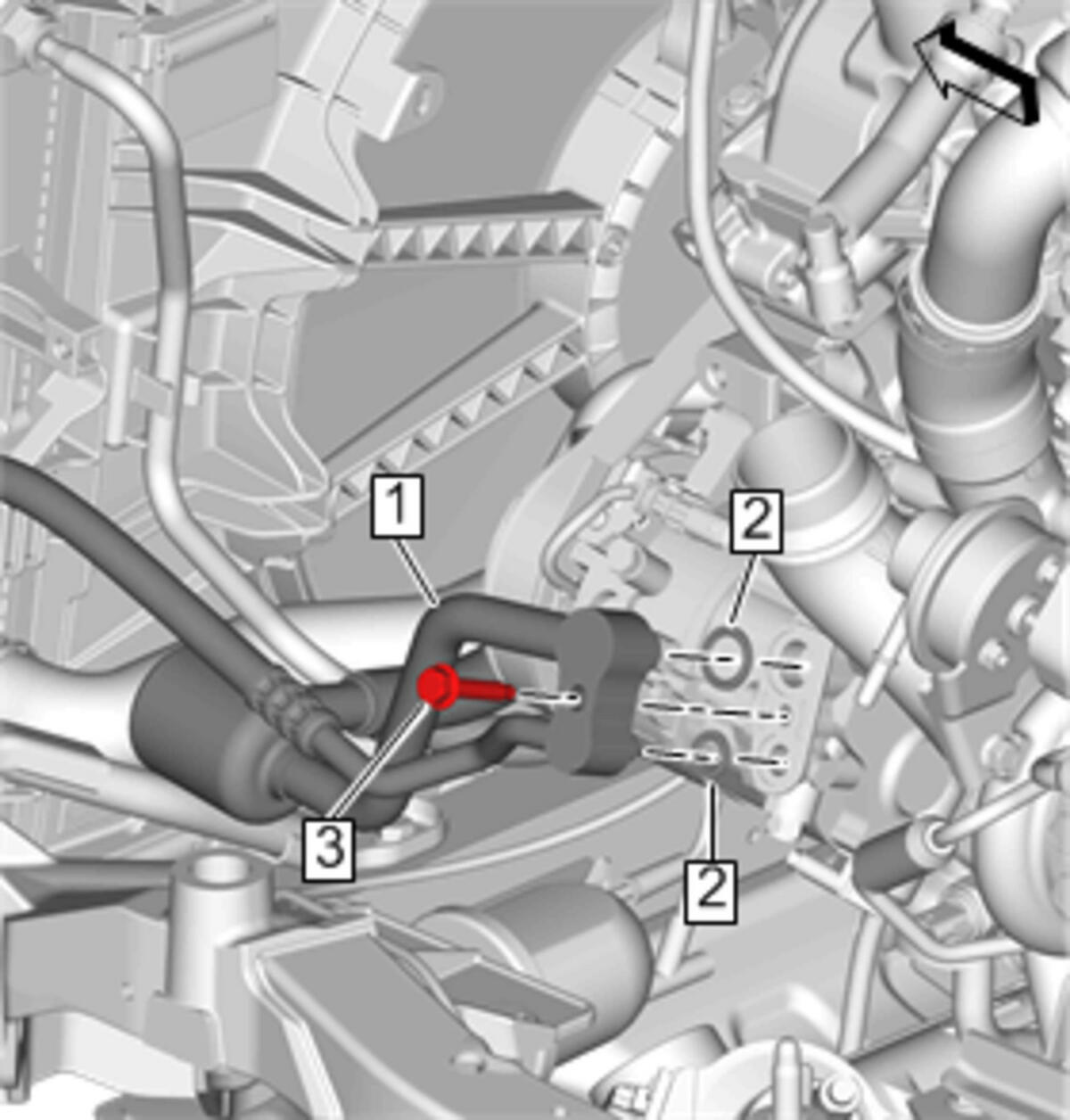

    6. Fig 3: Air Conditioning Compressor Hose
    GM4032457Courtesy of GENERAL MOTORS COMPANY
  6. Install Air Conditioning Compressor Hose (1) @ Air Conditioning Compressor. Refer to Air Conditioning Compressor Hose Replacement (LGX)
  7. Attach the wiring harness and connect the electrical connectors as necessary.
  8. Install Drive Belt @ Air Conditioning Compressor. Refer to Drive Belt Replacement (LF4)
  9. Install Air Cleaner Assembly. Refer to Air Cleaner Assembly Replacement (LF4)
  10. Recharge the refrigerant. Refer to Refrigerant Recovery and Recharging (R-134a) Refrigerant Recovery and Recharging (R-1234yf)
