Drive Belt Replacement (LF4)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

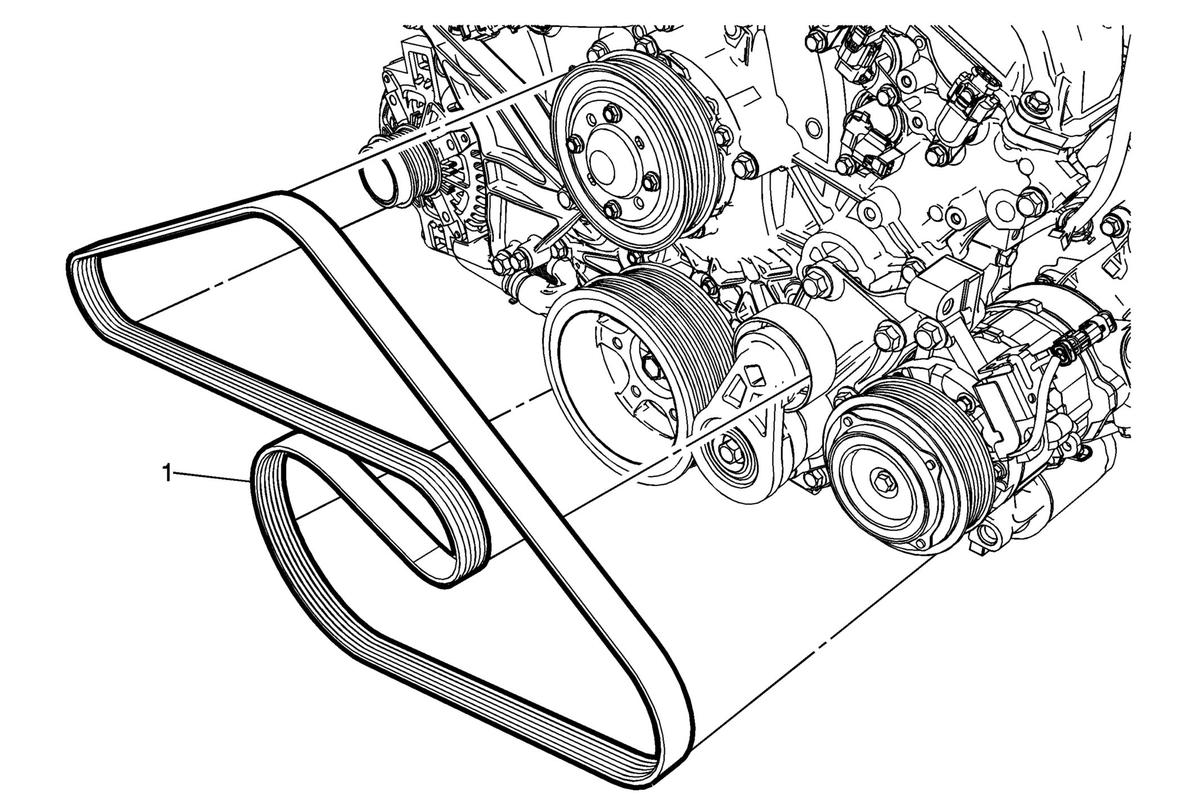

Fig 1: Drive Belt Routing (LF4)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Front Duct Replacement (LF4)
1	Drive Belt Procedure Rotate the drive belt tensioner clockwise to release the drive belt tension. Slide the drive belt off of the belt idler pulley. Slowly release the drive belt tensioner.

Callout

Component Name

Preliminary Procedures
Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Front Duct Replacement (LF4)

Drive Belt

Procedure

Rotate the drive belt tensioner clockwise to release the drive belt tension.
Slide the drive belt off of the belt idler pulley.
Slowly release the drive belt tensioner.
