Air Conditioning Compressor Bracket Replacement (LF4)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

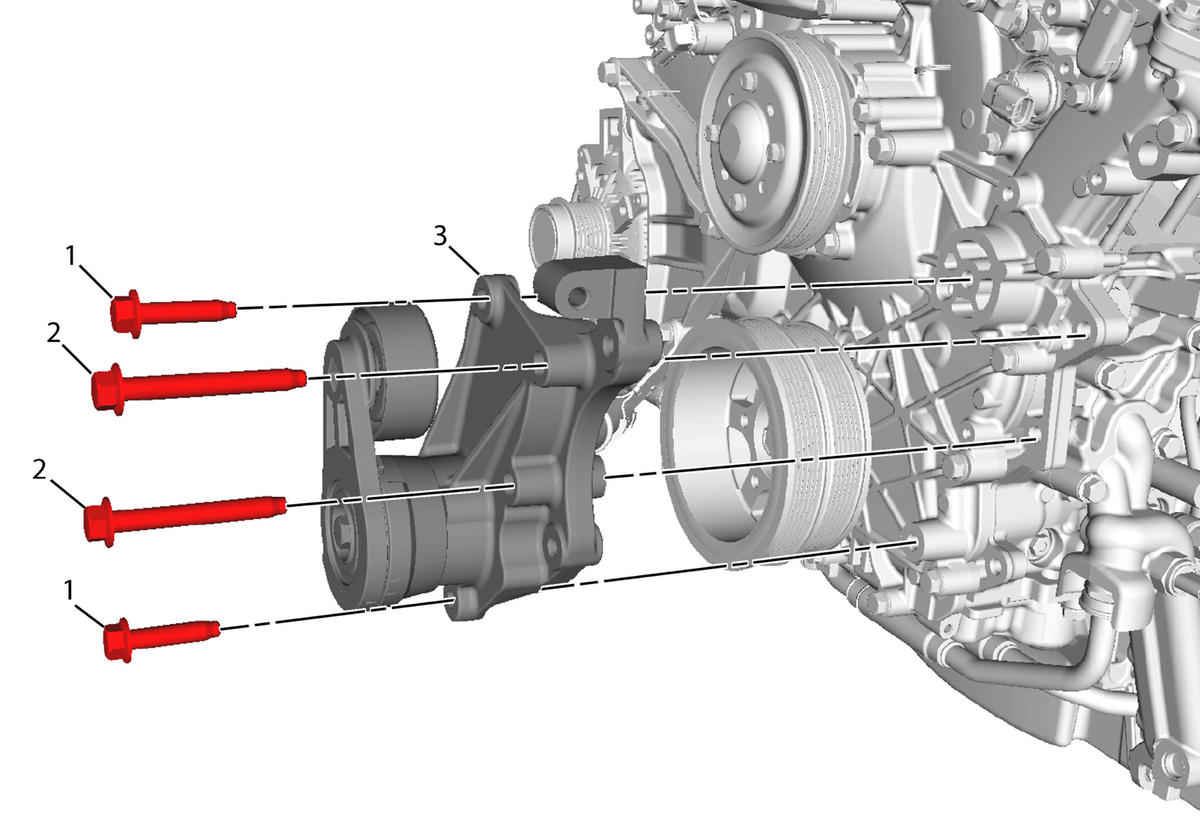

Fig 1: Air Conditioning Compressor Bracket (LF4)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove Drive Belt. Refer to Drive Belt Replacement (LF4) Remove Air Conditioning (A/C) compressor mounting bolts and position the A/C compressor aside. Refer to Air Conditioning Compressor Replacement (LF4)
1	Air Conditioning Compressor Bracket Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 58 N.m (43 lb ft)
2	Air Conditioning Compressor Bracket Bolt (Qty: 2) Tighten 58 N.m (43 lb ft)
3	Air Conditioning Compressor Bracket Procedure Transfer components as necessary.
