Rear Side Door Garnish Molding Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

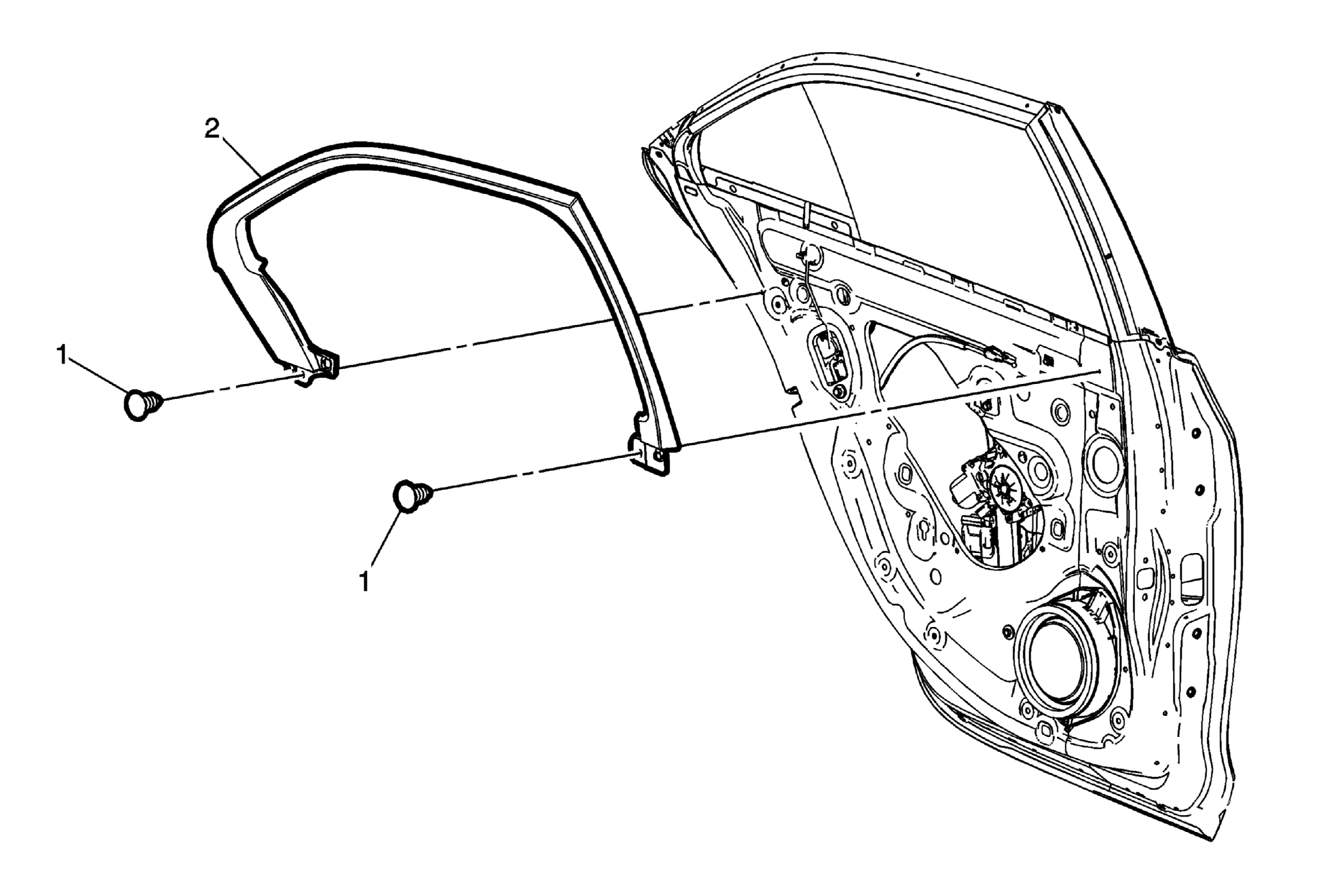

Fig 1: Rear Side Door Garnish Molding Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear side door trim. Refer to Rear Side Door Trim Replacement .
1	Rear Side Door Garnish Molding Retainer (Qty: 2) Procedure Use a door trim panel removal tool or equivalent to aid in the removal of the retainer.
2	Rear Side Door Garnish Molding Assembly Procedure Pull outward starting at the front and moving slowly rearward to remove the molding. Reposition the weatherstrip so it rests on top of the garnish molding and is not trapped below the molding.

Callout

Component Name

Preliminary Procedure
Remove the rear side door trim. Refer to Rear Side Door Trim Replacement .

Rear Side Door Garnish Molding Retainer (Qty: 2)
Procedure
Use a door trim panel removal tool or equivalent to aid in the removal of the retainer.

Rear Side Door Garnish Molding Assembly

Procedure

Pull outward starting at the front and moving slowly rearward to remove the molding.
Reposition the weatherstrip so it rests on top of the garnish molding and is not trapped below the molding.
