Front Side Door Wiring Harness Replacement (Coupe)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

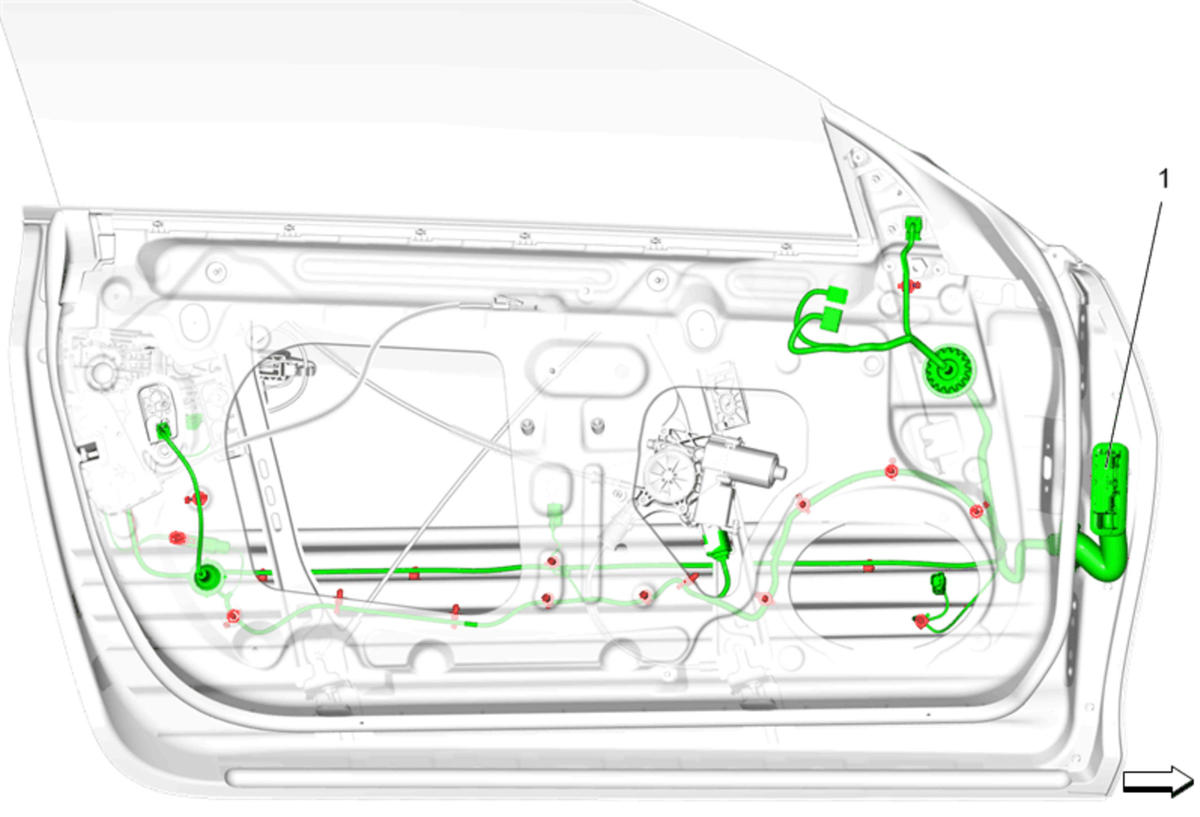

Fig 1: Front Side Door Wiring Harness (Coupe)
GM4519737Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
  1. Refer to Radio Front Side Door Speaker Replacement (Coupe)
  2. Refer to Front Side Door Upper Trim Panel Replacement (Coupe)
  3. Remove the water deflector.
1 Front Side Door Wiring Harness
Procedure
Disconnect all electrical connectors.
