Front Side Door Weatherstrip Replacement - Door Side (Coupe)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

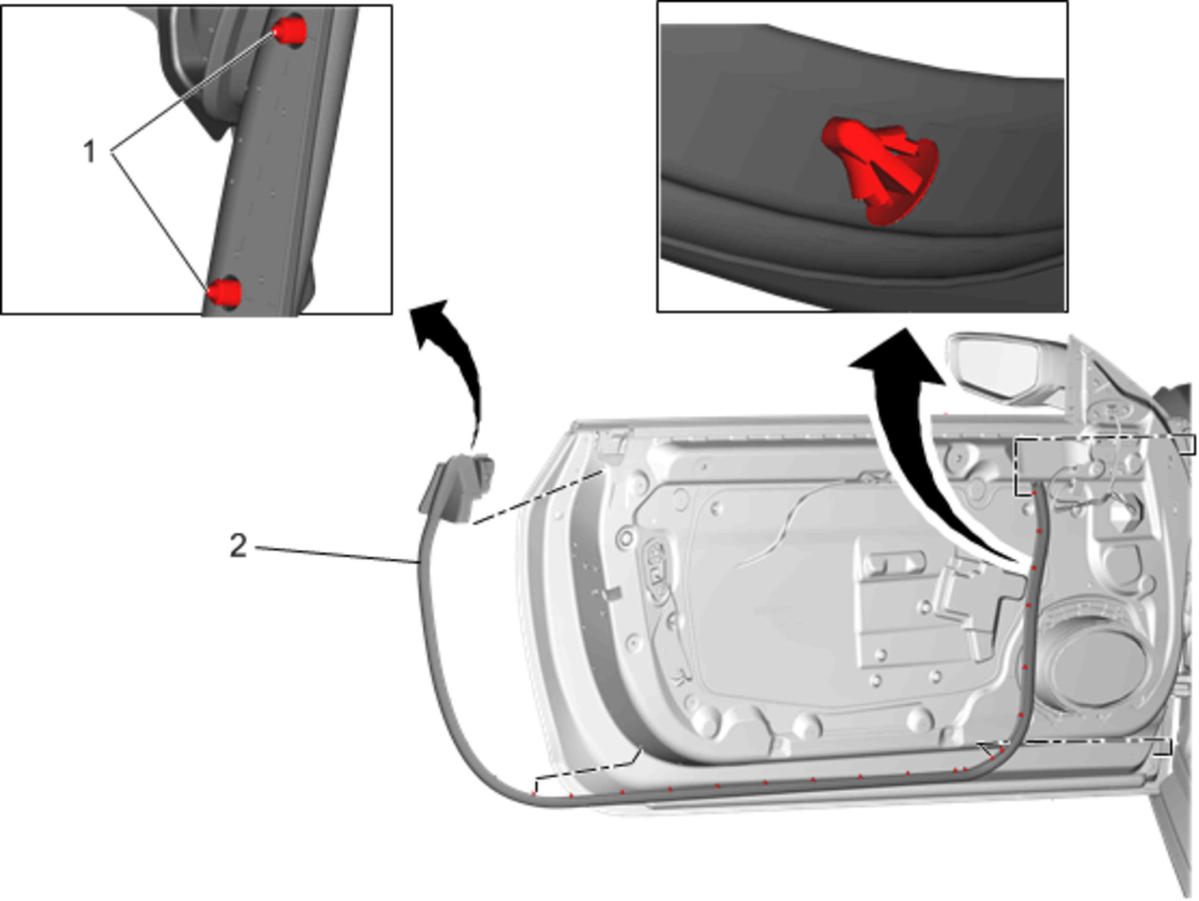

Fig 1: Front Side Door Weatherstrip - Door Side (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Open the door to the full open position. Remove the front side door trim panel. Refer to Front Side Door Trim Replacement (Coupe) . Remove the outside rearview mirror seal. Refer to Outside Rearview Mirror Seal Replacement .
1	Front Side Door Weatherstrip to Door Side (Qty: 2) Procedure Using a suitable tool, release the retainers and weatherstrip from the corner of the door.
2	Front Side Door Weatherstrip to Door Side Procedure Using a suitable tool, release the integral retainers and weatherstrip from around the door. NOTE: Not all integral retainers are shown for clarity. Inspect the door to ensure a proper seal after the weatherstrip has been installed.

Callout

Component Name

Preliminary Procedures

Open the door to the full open position.
Remove the front side door trim panel. Refer to Front Side Door Trim Replacement (Coupe) .
Remove the outside rearview mirror seal. Refer to Outside Rearview Mirror Seal Replacement .

Front Side Door Weatherstrip to Door Side (Qty: 2)
Procedure
Using a suitable tool, release the retainers and weatherstrip from the corner of the door.

Front Side Door Weatherstrip to Door Side
Procedure
Using a suitable tool, release the integral retainers and weatherstrip from around the door.

NOTE:

Not all integral retainers are shown for clarity.
Inspect the door to ensure a proper seal after the weatherstrip has been installed.
