Front Side Door Upper Hinge and Lower Hinge Replacement (Coupe)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

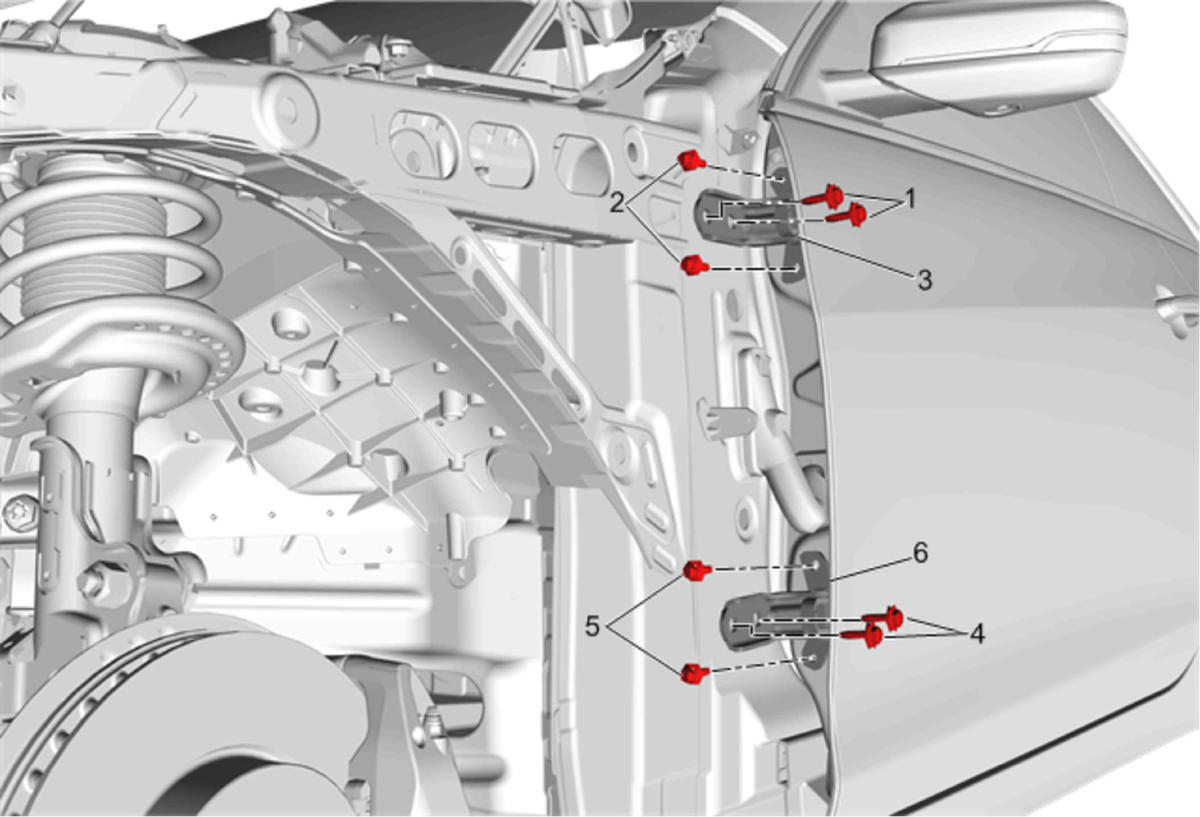

Fig 1: Front Side Door Upper Hinge and Lower Hinge (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front fender. Refer to Front Fender Replacement . Mark the location of the hinge before removing the bolts with a grease pencil.
1	Front Side Door Upper Hinge to Body Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Procedures Keep door in closed position. Replace one hinge at a time. Tighten 32 N.m (24 lb ft)
2	Front Side Door Upper Hinge to Door Bolt (Qty: 2) Tighten 25 N.m (18 lb ft)
3	Front Side Door Upper Hinge
4	Front Side Door Lower Hinge to Body Bolt (Qty: 2) Tighten 32 N.m (24 lb ft)
5	Front Side Door Lower Hinge to Door Bolt (Qty: 2) Tighten 25 N.m (18 lb ft)
6	Front Side Door Lower Hinge Procedure Adjust the door as needed. Refer to Front Side Door Adjustment . NOTE: Inspect the door for proper operation.
