Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS-V)
  2. Remove Engine Mount Bracket - Left Side. Refer to Engine Mount Bracket Replacement - Left Side (LF4)

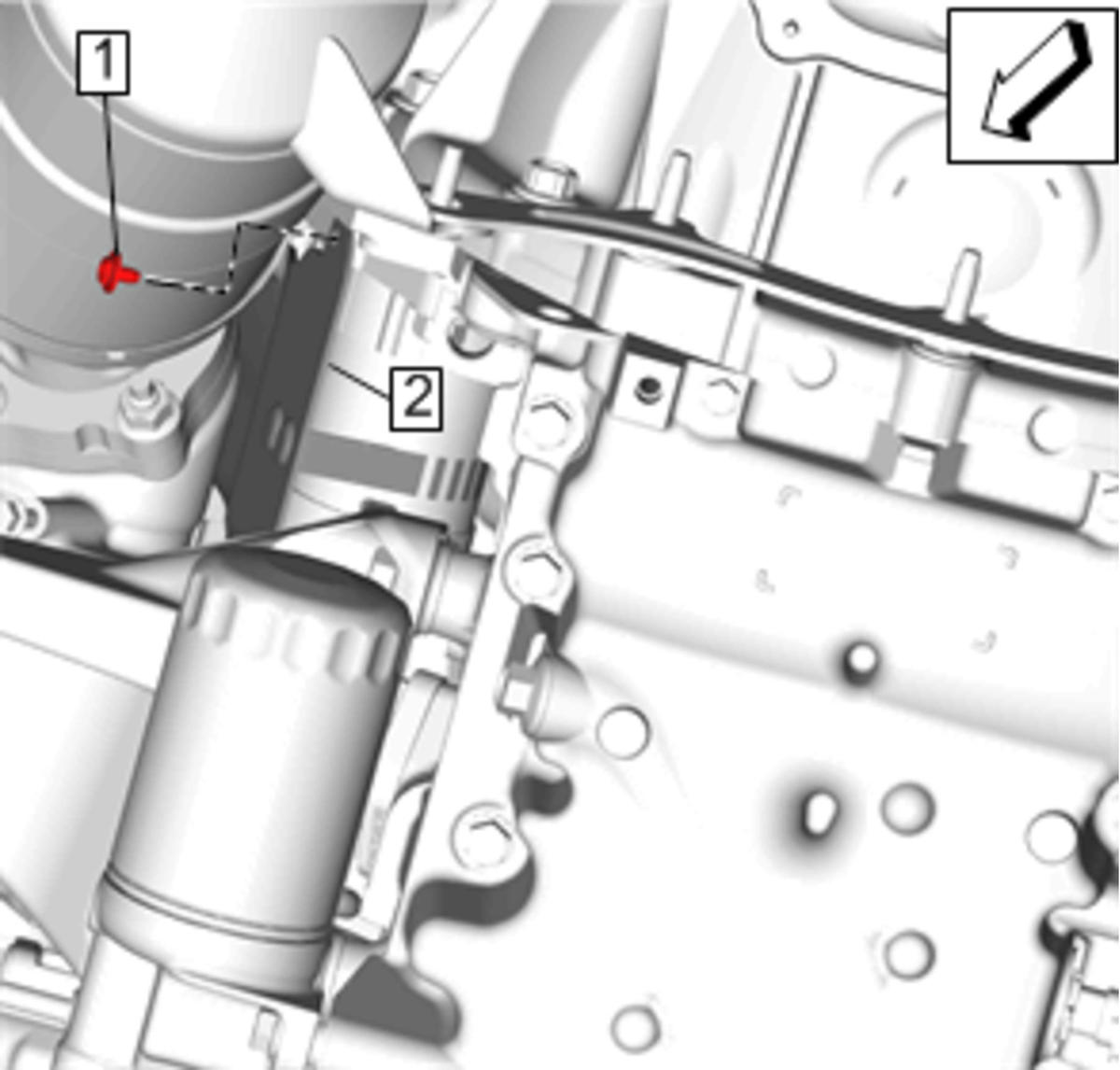

    3. Fig 1: Starter Heat Shield Fastener
    GM4044624Courtesy of GENERAL MOTORS COMPANY
  3. Remove Starter Heat Shield Fastener (1)
    4. Fig 2: Starter Heat Shield
    GM4044626Courtesy of GENERAL MOTORS COMPANY
  4. Disengage the starter heat shield clip (1).
  5. Remove Starter Heat Shield (2).
