Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to Cooling System Draining and Filling (Static) Cooling System Draining and Filling (GE 47716) .
  2. Remove the drive belt. Refer to Drive Belt Replacement (LF4) .
    3. Fig 1: Securing Water Pump Pulley With EN 46104
    GM1342893Courtesy of GENERAL MOTORS COMPANY
  3. Use the EN 46104  water pump pulley holder (1) to retain the pulley.

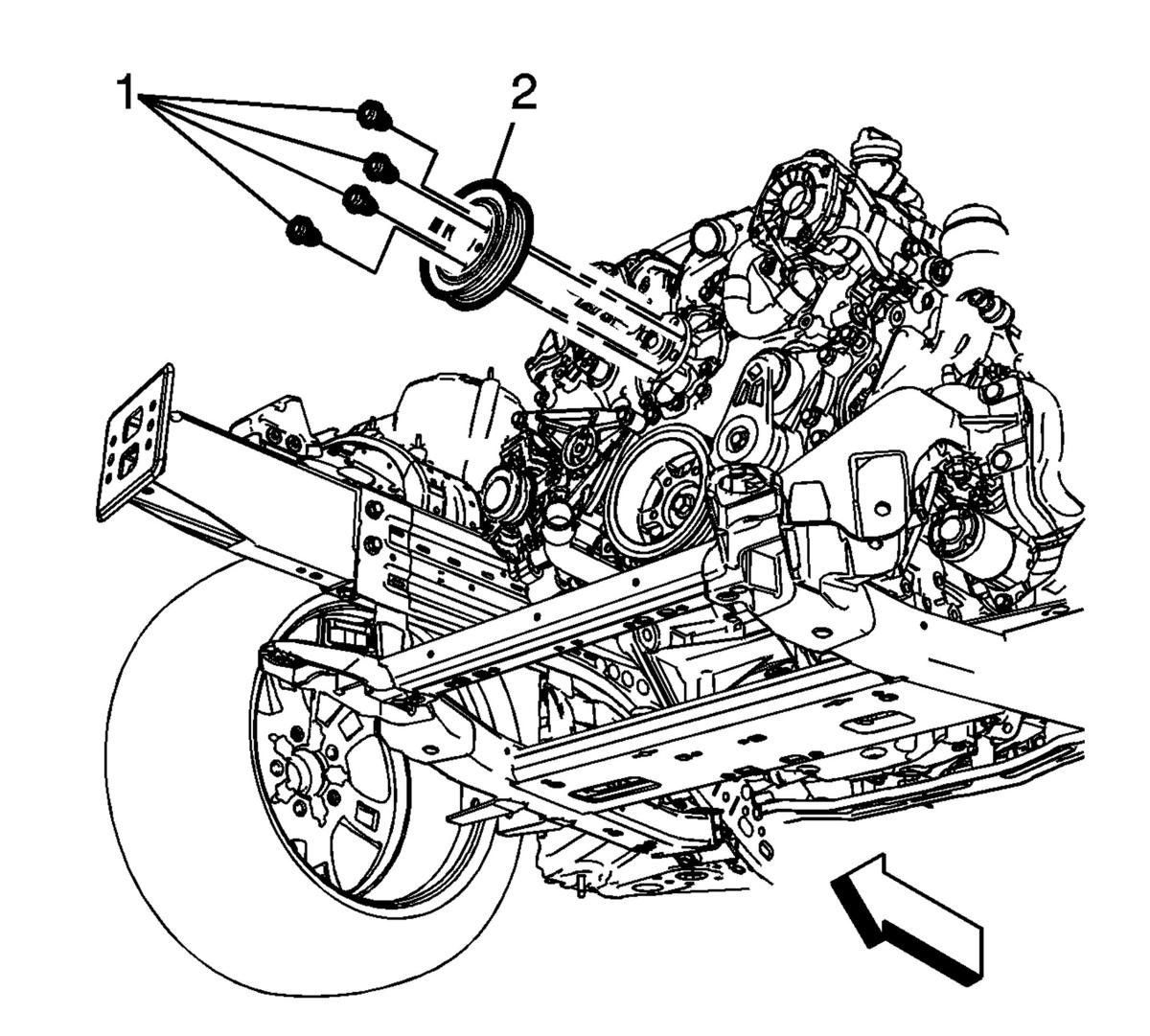

    4. Fig 2: Water Pump Pulley
    GM2808947Courtesy of GENERAL MOTORS COMPANY
  4. Remove the water pump pulley fasteners (1).
  5. Remove the water pump pulley (2).

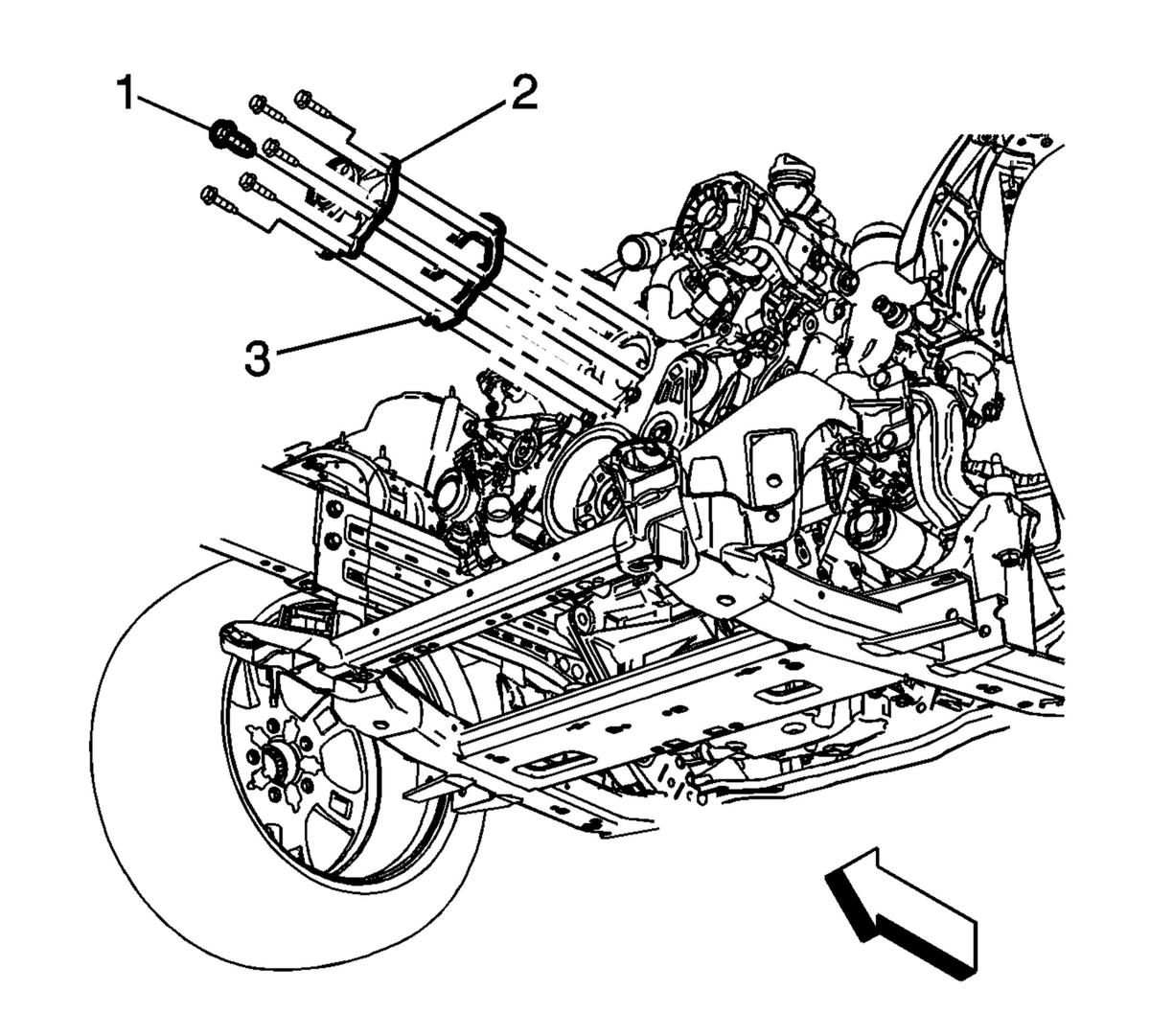

    6. Fig 3: Water Pump
    GM2808944Courtesy of GENERAL MOTORS COMPANY
  6. Remove the water pump fasteners (1) and DISCARD the fasteners.
  7. Remove the water pump (2) and discard the water pump gasket (3).
  8. Carefully clean the water pump sealing surfaces.
