Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Cooling System Draining and Filling (Static) Cooling System Draining and Filling (GE 47716)
  2. Disconnect Radiator Surge Tank Inlet Hose@Water Outlet - Radiator Surge Tank Inlet Hose Replacement (LF4)
  3. Disconnect Radiator Inlet Hose@Water Outlet - Radiator Inlet Hose Replacement (LF4)

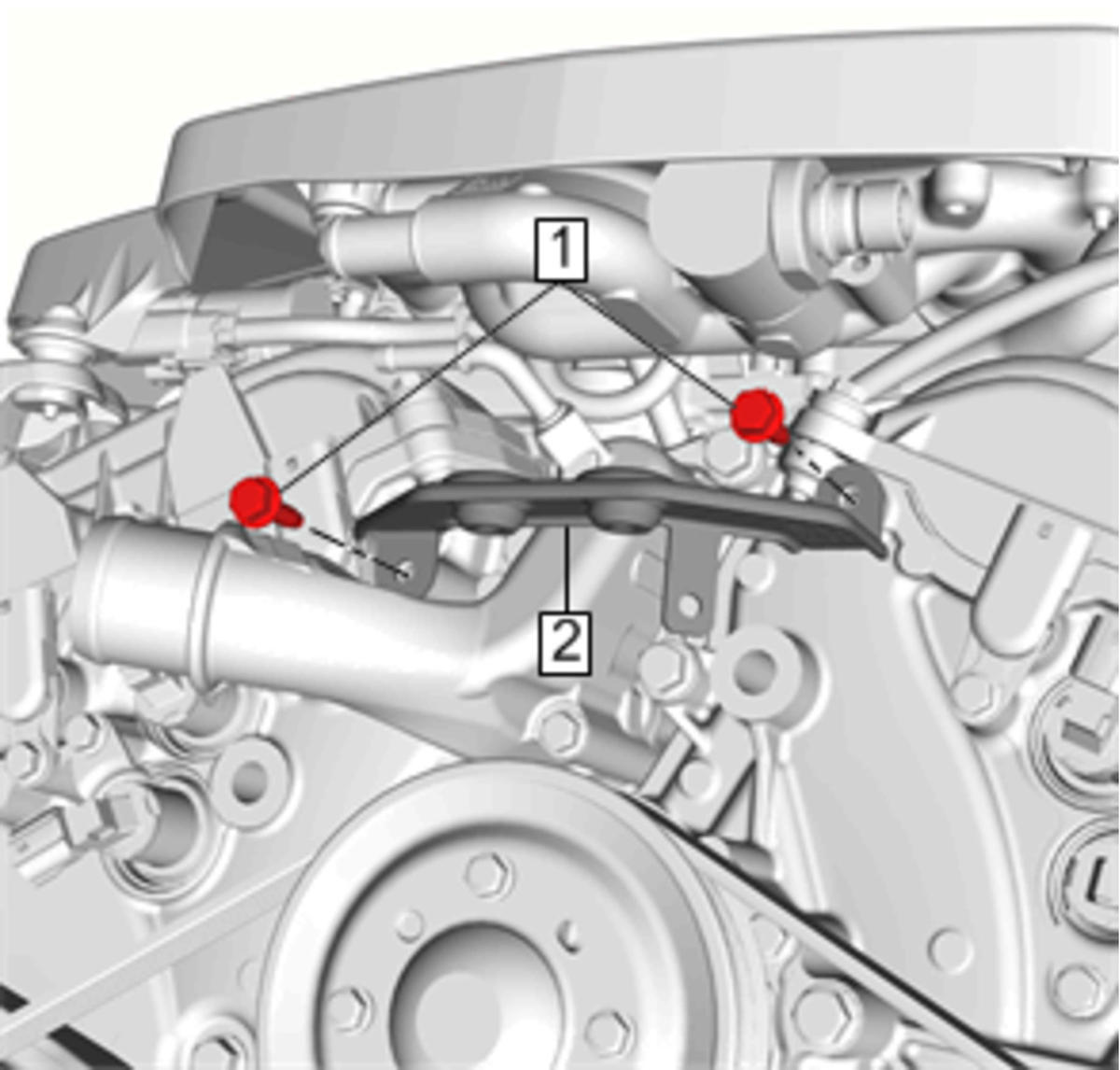

    4. Fig 1: Air Cleaner Outlet Resonator Bracket Bolts
    GM4113158Courtesy of GENERAL MOTORS COMPANY
  4. Remove Air Cleaner Outlet Resonator Bracket Bolt (1)
  5. Remove Air Cleaner Outlet Resonator Bracket (2)

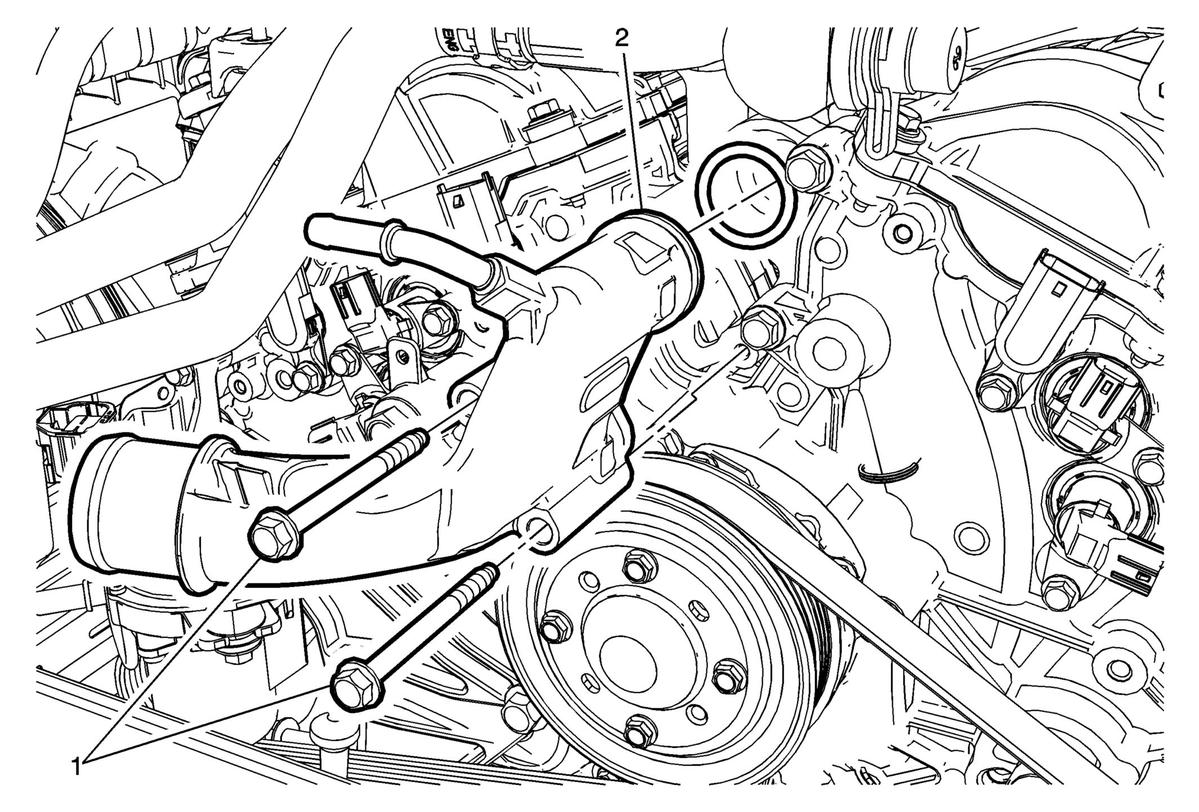

    6. Fig 2: Water Outlet (LF4)
    GM3576019Courtesy of GENERAL MOTORS COMPANY
  6. Remove Water Outlet Bolt (1)
  7. Remove Water Outlet (2)
