Radiator Surge Tank Inlet Hose Replacement (LF4)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

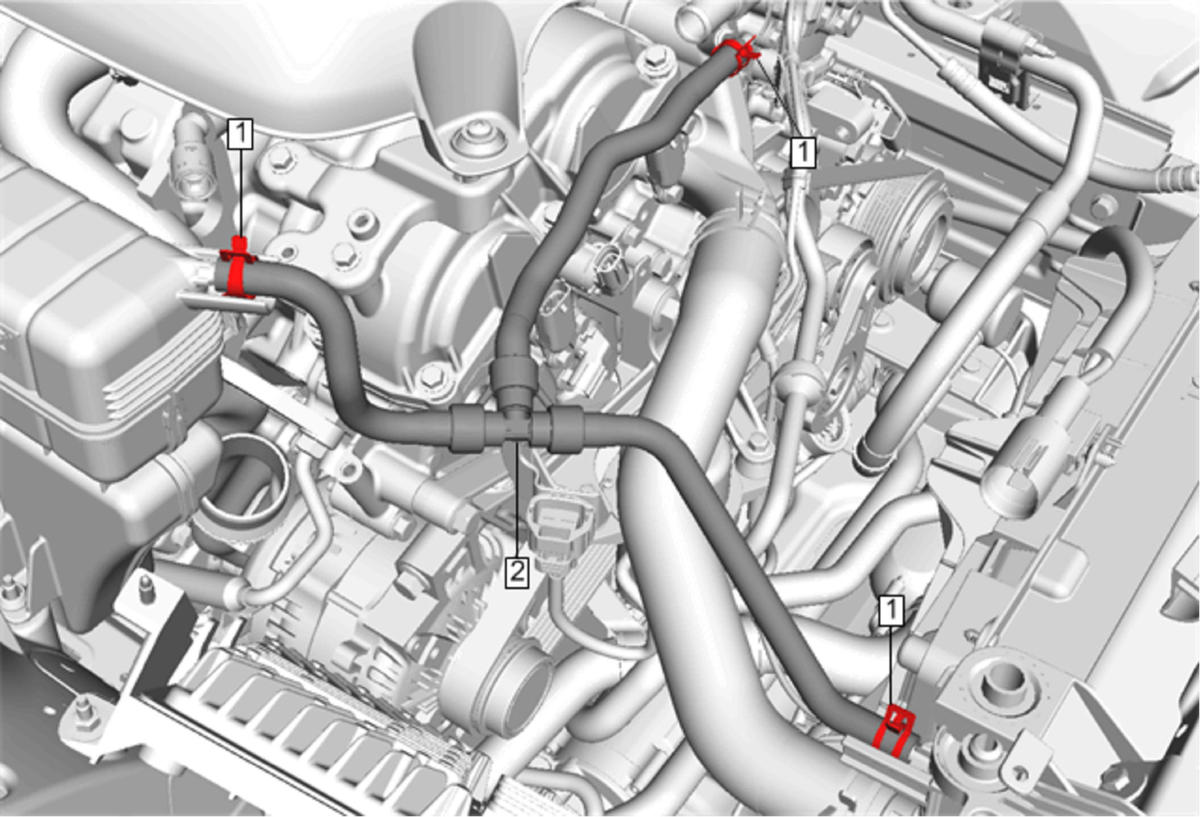

Fig 1: Radiator Surge Tank Inlet Hose (LF4)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Cooling System Draining and Filling (Static) Cooling System Draining and Filling (GE 47716) Front Compartment Front Sight Shield Replacement (ATS-V)
1	Radiator Surge Tank Inlet Hose and Clamp (Qty: 3) Procedure DISCARD the clamp.
2	Radiator Surge Tank Inlet Hose Procedure Check the cooling system for leaks.

Callout

Component Name

Preliminary Procedure

Cooling System Draining and Filling (Static) Cooling System Draining and Filling (GE 47716)
Front Compartment Front Sight Shield Replacement (ATS-V)

Radiator Surge Tank Inlet Hose and Clamp (Qty: 3)
Procedure
DISCARD the clamp.

Radiator Surge Tank Inlet Hose
Procedure
Check the cooling system for leaks.
